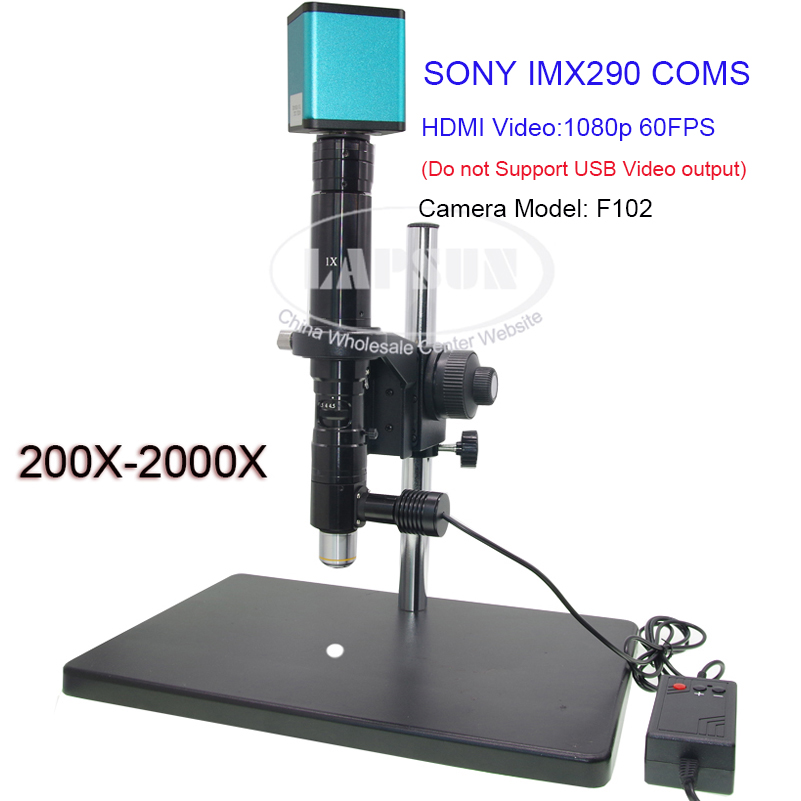

200X-2000X Inspection Zoom Monocular C-mount Coaxial Light Lens + F102(Sony Sensor IMX290) Industrial Microscope Camera + Fine Adjustment Stand























Feature:

  • Shadow-free coaxial light
  • C-mount lens
  • Sharp images
  • 3.5X-22.5X Optical multiplier zoom objective ( about 200 - 2000X on the display( CCD/COMS Size: 1/3 ", display Size: 21 ") )
Specification:

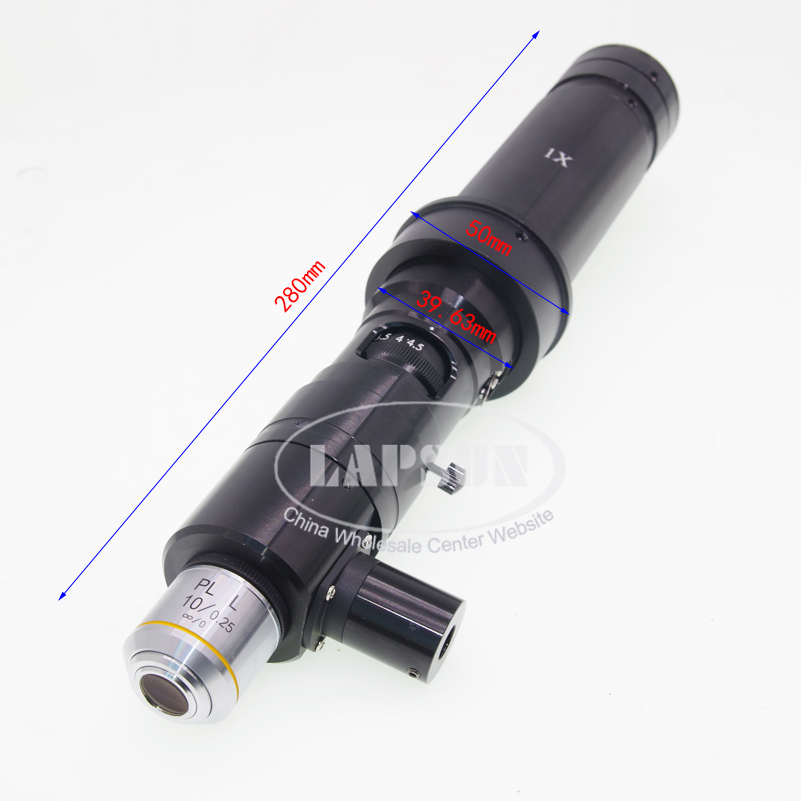

  • Zoom microscope objective: 3.5X-22.5X
  • Mount: C-mount for PC or TV camera connection (camera sold separately)
  • Working distance: 10-15mm
  • Field of view: 1.5mm-0.2mm
  • Illumination: coaxial light
  • Light Power input: 110 - 240V, 50 - 60HZ, auto switching
  • Pillar: 280mm long

Metal Stand:

  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Item size: see the picture
  • Weight: 2.5kg

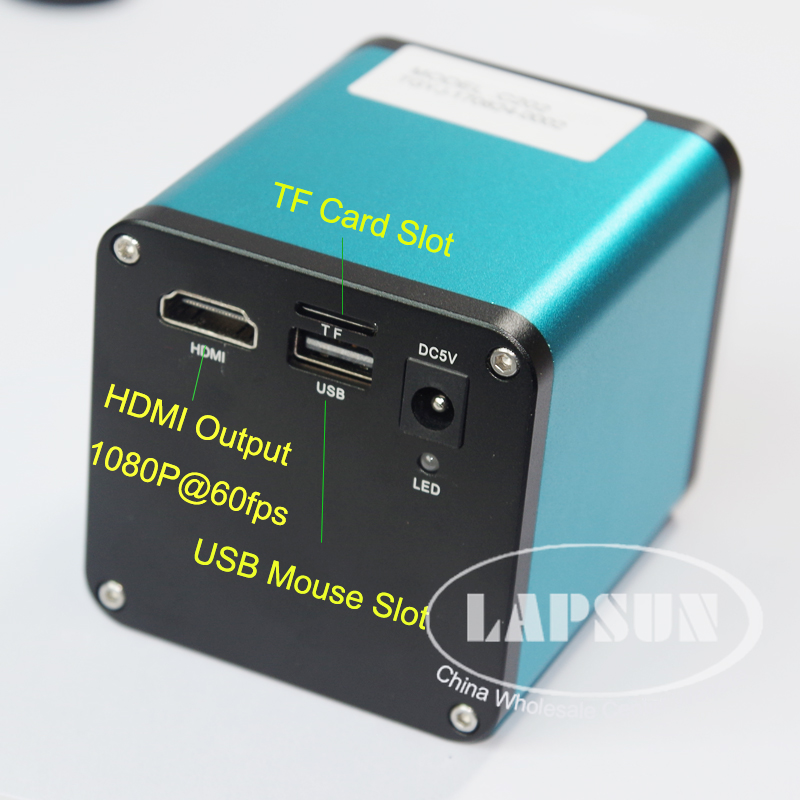

  • SONY IMX290 HDMI TF Video Industry Microscope Camera
    • Measurement function (only L102 Digital Camera Support):
       Labeling functions : Point coordinates, cross lines, text annotations
       Length measurement: Line length, line length, curve length, parallel line distance, point line distance
       The center distance : The radius fixed circle, two points setting circle, three points setting circle
       Geometric measurement : Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
        The geometric area: Polygon, square

    • UI Digital design, mouse operation, humanized design
    • High Quality, High Resolution, Clear Images
    • 1080P FULL HD 60FPS high speed camera

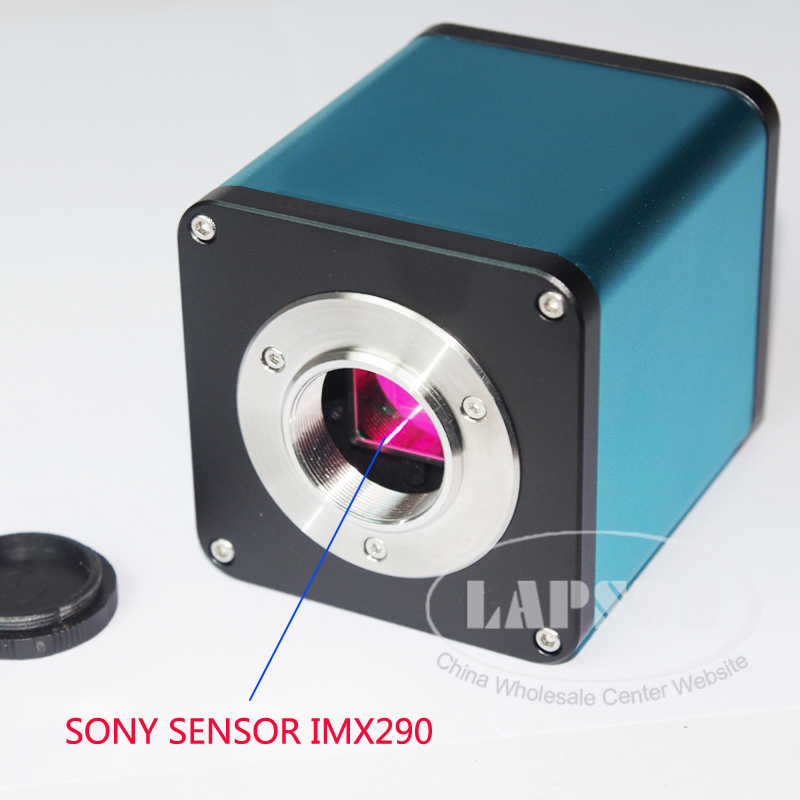

    • SONY SENSOR IMX290 Colour CMOS
    • UI design menu, easy to control by mouse
    • TF Card Video Recorder
    • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
    • It build in digital crosshairs and color control, add line in the pictures
    • We sell much to the industy factory, then the works can see the problems directly in the Monitor.
    • Image Sensor : Colour CMOS
    • Pixel size : 1/2.8〞
    • Menu : Fully digital UI design
    • Method of Operation : Mouse
    • Lens interface : C/CS-type
    • Power DC : DC5V
    • Output method : HDMI
    • White Balance : Auto / Manual / One-push control
    • Exposure : Auto / Manual
    • Display Frame rate : 1080P@60fps
    • Scanning method : Line by line scanning
    • Shutter Speed : 1/50s(1/60s)~1/10000s
    • Operating Temperature : 0℃~50℃
    • Magnification / Zoom : Support
    • Saving function : Support TF card














Package including:

  • 1 x 200X-2000X Coaxial C-mount Lens
  • 1 x Coaxial Light
  • 1 x Metal Stand
  • 1 x F102 HDMI Camera (Sony Sensor)
