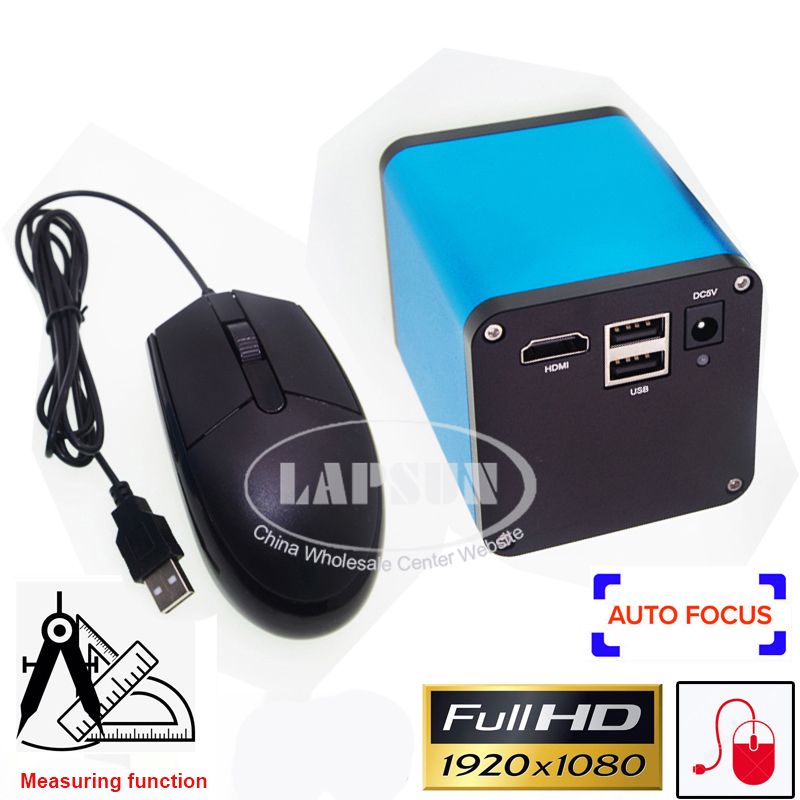

Digital Camera Feature:
- 1080P FULL HD 60FPS high speed camera
- UI design menu, easy to control by mouse
- Autofocus, when observation Objects of different heights(MAX 10CM), you
- do not need adjust the lens's Working distance
- When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
- When you adjust the lens's Working distance(MAX 10CM), you do not need adjust the lens's Magnification, The camera can Autofocus

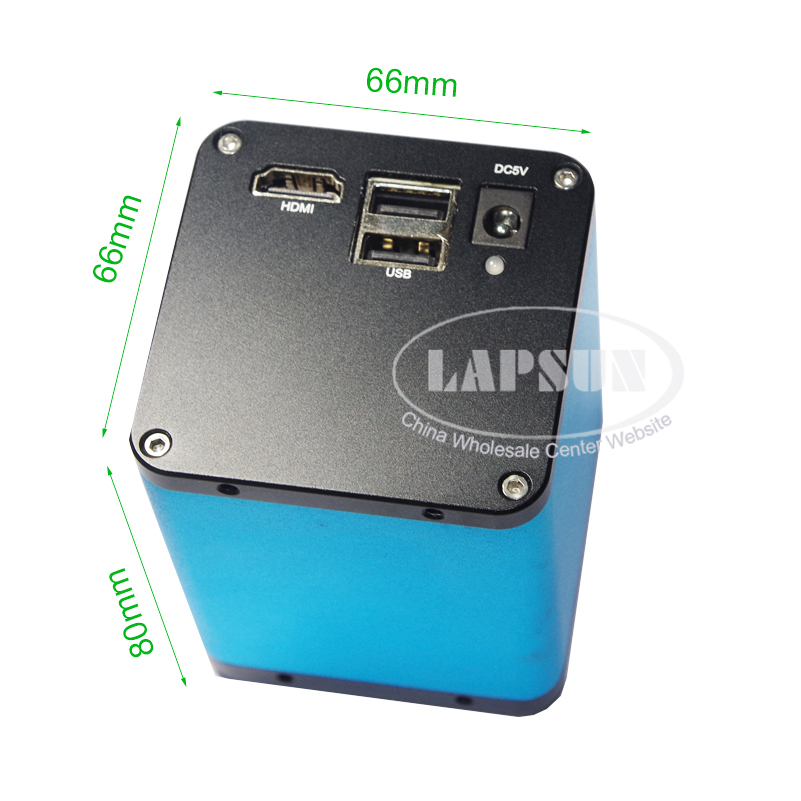

Specification:
- Sensor: SONY IMX290
- Image Sensor : Colour CMOS
- Pixel size : 1/2.8〞
- Menu : Fully digital UI design
- Method of Operation : Mouse
- Lens interface : C/CS-type
- Power DC : DC5V

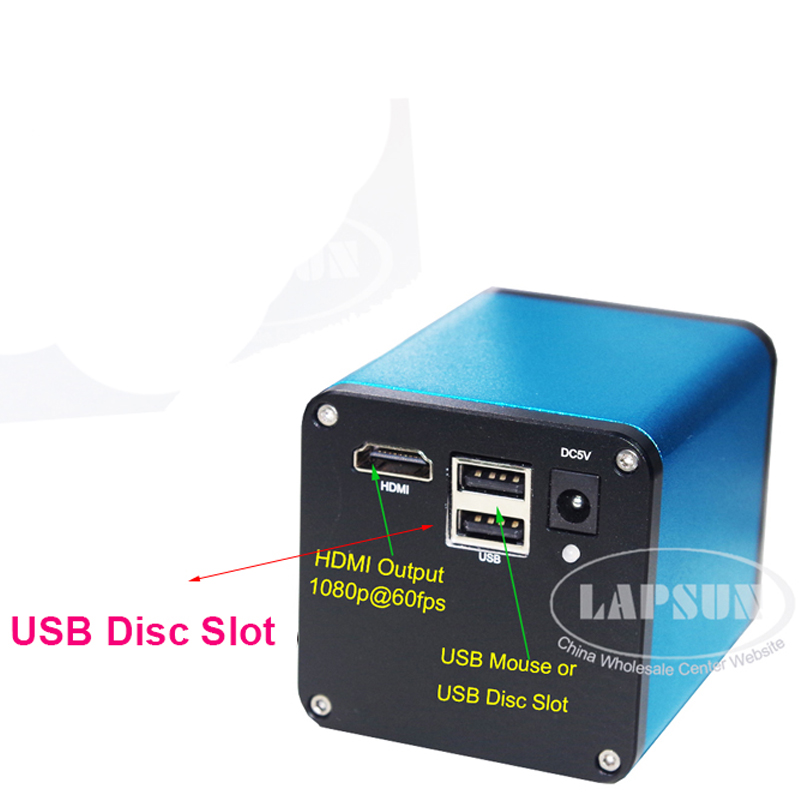

- Output method : HDMI
- White Balance : Auto / Manual / One-push control
- Exposure : Auto / Manual
- Display Frame rate : 1080P@60fps
- Scanning method : Line by line scanning
- Shutter Speed : 1/50s(1/60s)～1/10000s
- Operating Temperature : 0℃～50℃
- Magnification / Zoom : Support
- Saving function (option) : Support U disk / Not Support U disk
- HOW TO USING:
-
1.Before connecting power supply, please connect mouse to the camera.
2.Under AF mode, the program will automatically adjust the focus to provide a clear image; Switching to "Click F" mode, it will lock the focus after the system performed autofocus on the required image; Even if the image is blurry, with focus being locked, it will not trigger autofocus again; When “MF” (Manual Focus) is set, the MF can be adjusted .
3.If autofocus cannot operate under special circumstances (e.g. Smooth reflect surface). Move the focus frame to objects with details, change to “Click F” mode to perform one-off auto focus operation, or switch to “MF” mode for manual focus operation.
4.it needs to wait for a period of time When "Save Image" is selected, icons appear in the center of the screen and are automatically saved to U disk in jpg format.
5.When pressing “Video” button to start recording, •Rec will appear at the lower right hand corner of the camera screen. By pressing “Video” button again, video recording will be stopped and automatically saved to TF card with H.264 format
6.When saving the image / video, the folder and files will be named according to date and time respectively.
7.When you need to correct the rear focus of the lens, select the "motor in the middle" and then adjust the mechanical rear focus to make the image clear.
Measurement Function:
- Labeling functions : Point coordinates, cross lines, text annotations
- Length measurement: Line length, line length, curve length, parallel line distance, point line distance
- The center distance : The radius fixed circle, two points setting circle, three points setting circle
- Geometric measurement : Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles The geometric area: Polygon, square
C-MOUNT Lens:
- Working distance:100mm (when using 0.35X Auxiliary objective Working distance:190mm)
- Connector:CS C mount
- Zoom:continouasly variable zoom
- Objective Magnification:0.7X - 5X(about 10 - 200X on the display,when using 0.35X Auxiliary objective , Objective Magnification go to 5X-100X )
- Eyepiece lens adapter:0.4X
- Fixed position:50mm
- Locking:0.7X - 5X Locking
- Thread: 42mm
- Auxiliary Objective Lens:0.35X
- Size:132mm(L) * 55mm(DIA)
144 Bulbs Microscope LED Ring Light:
- 144 bright white LED bulbs
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100%Adjustable,high brightness
- Variable intensity control
- Power input: 100-240V, 50-60HZ
- Suit for the dia of the lens: 30mm-63mm

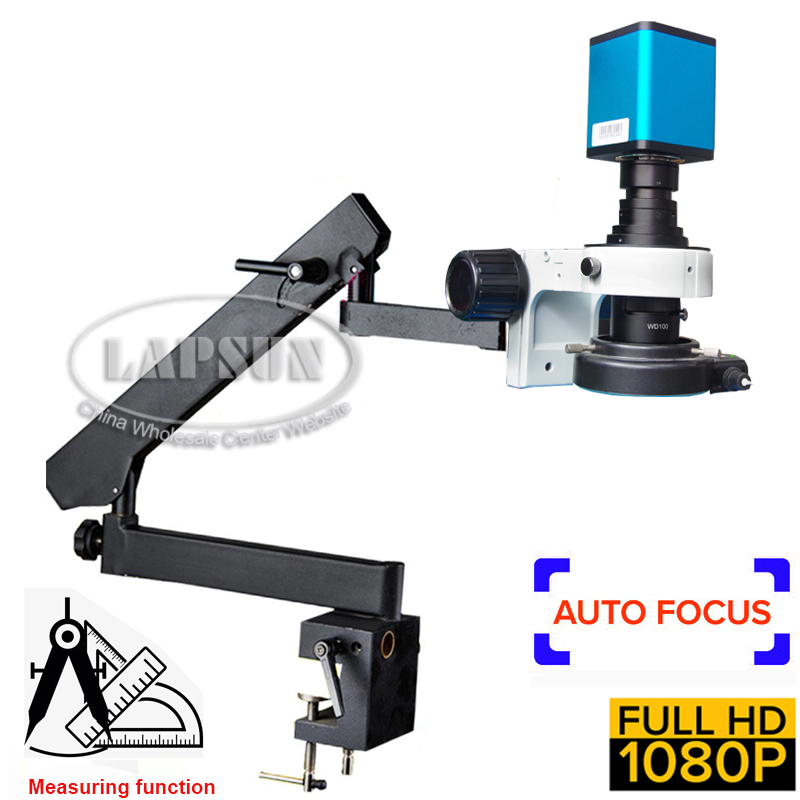

Universal Stand Feature:
- Expand the scope of operations,any orientation and angle observed the objectives.
- Vertical Height : 400mm
- Horizontal Distance:770mm
- Base size: 98x80x116mm
- Max Clamp：50mm
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm.
- Column(option) height: 330mm
Heat Insulation Silicone Pad:
- 1.Fireproof
this heat insulation silicone repair mat is fireproof material in good quality, 843°F high temperature tin melting, can directly solder on it. It's an ideal repair tools, specially suitable for smart phone repair, computer repair, tablet repair, iPhone repair, sport watches repair, IC circuit boards repair and other electronic devices.
- 2.Anti-static
this phone repair mat can use as screw tray, tools tray cause it's an anti-static repair pad and add built-in scale ruler (0 ~25cm), 124 screws position and 8 notches to classify different parts. It's your necessary repair tool which can make your work more easily and clearly.
- 3.Anti-corrosion
this computer repair mat is made of high quality silicone. It resists corrosion and out of shape. Its texture is soft, solid and durable to protect soldering iron tip.
- 4.Easy to Clean
the repair pad is easy to clean with soap and water. The omissive tin stick on the mat when soldering, just gently scratch your nail over the tin, it will fall off and mat recovers clean immediately without any vestige. This silicone mats environmental safety is conductive to improving the working environment of technicians.
- 5.Anti-Slip
anti-Slip and Anti-static Design: Both surface and back side are adopting the anti-slip design.
- Material: Patience high-temperature materials
- Maintenance : Water washing detergent or soft cloth
- Stype(color,size,thickness)(option): Blue, 247mm * 345mm , Thickness: 4mm

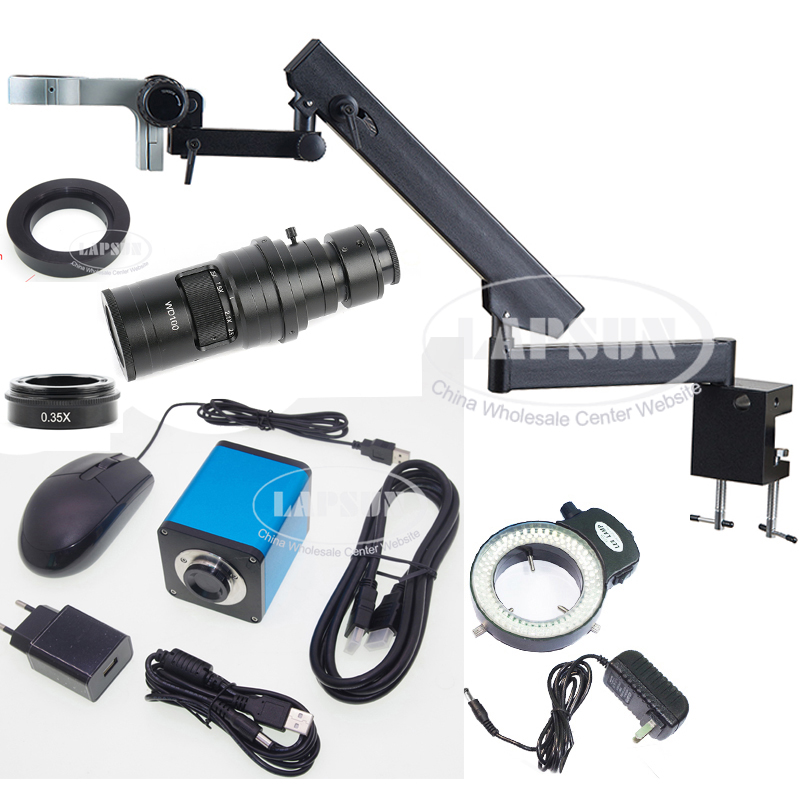

Package including(not Support U disk,not include Column):
- 1 x Microscope Camera (not Support U disk)
- 1 x Power supply(AU/EU)
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 200X C-MOUNT Lens
- 1 x 144 LED Ring Light
- 1 x FHD Zoom C-mount Lens
- 1 x Ring Adapter
- 1 x Articulating Arm Clamp Microscope Bracket (not include Column)
- 1 x 0.35x lens
- 1 x High Temperature Resistant Working Pad
 |
