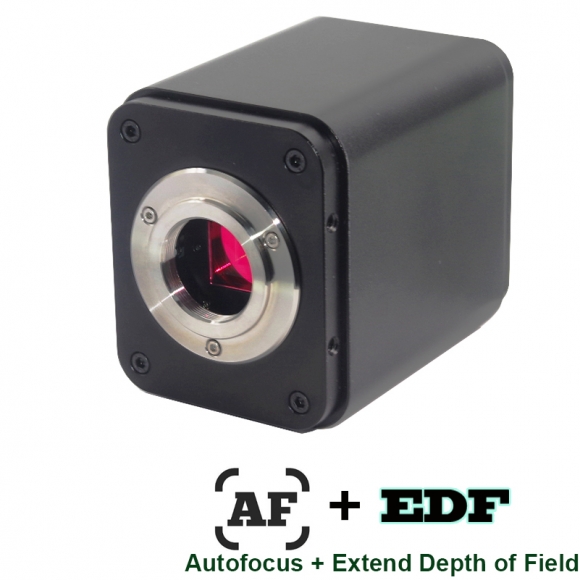

The Camera is a camera designed by Lapsun that includes multiple modes of output (HDMI/WiFi/USB),
The CMOS camera with multiple interfaces, and auto focus. It uses ultra-highperformance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a
computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and
subsequent research.
Enhanced with an embedded ARM core, this camera integrates various functions inside. With the help of a USB
mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled.
The X5FCAM4K8MPA camera comes with the built-in Auto Focus system, which can realize Auto Focus on specific
areas of the sample.
By inserting a WiFi module or connecting to a computer via a USB cable, the user can directly control the camera's
hardware with the software ToupView or ToupLite. The camera can be used for tool field inspection,
microscope observation, etc.
Camera Application:
- Scientific research, digital teaching (teaching, demonstration and academic discussing);
- Digital laboratory, medical research;
- Machine vision (PCB detection, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aviation and military;
Feature:
- Sony STARVIS 2 back-illuminated CMOS sensor
- 4K HDMI/ WiFi / USB multiple video synchronous outputs
- 4K/1080P auto switching according to monitor resolution
- Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF and other functions
- Provide multiple focusing methods, and the size of the focusing area can be modified; Provide AF+EDF, facilitating the synthesis of high depth of field images in multiple focus areas at high magnification
- Excellent ISP with local tone mapping and 3D denoising
- Provide real-time video EDF function and real-time video WDR output function
- Provide two sets of default ISP parameters for biological microscope and stereo microscope
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
- ToupView/ToupLite software for PC
- iOS/Android applications for smart phones or tablets
Specification:
- Sensor(option): SONY imx678 Sensor, senzor size:1/1.8" ,
- Pixel(μm) : 2.0x2.0 (SONY imx678) ,
- Resolution: 4K Ultra HD (8mp 3840x2160)
- Preview frame rate： 60fps @ 4K under HDMI , 30fps@3840x2160 (USB,)
- Max recording frame rate: 50fps-60fps under HDMI
- Exposure : 0.1ms~1000ms
- Real time measurement
- Support U disk and SD card storage
- HDMI, USB output
Video Output:
- HDMI Interface
- 1. Comply with HDMI2.0 standard;
- 2. Max frame rate 60fps@4K or 60fps@1080P;
- 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
- USB3.0 Output
- 1. Max frame rate 30fps@4K Resolution
- 2. Camera Working with Computer via USB3.0 cable,
- 3. RisingTech will provide RisingView software for buyer
|
Spectral Range 380-650nm (with IR-filter)
|
Other Specification for HDMI Output
|
| UI Operation |
With USB Mouse |
| Image Capture |
8M (3840*2160) JPEG Image in SD Card or USB Flash Disk |
| Video Record |
Video Format:8M(3840*2160) H264 Encoded MP4 Format |
| Video Recording Frame Rate:50~60FPS(related with the SD card speed class and video resolution) |
| Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar |
Including Zoom, Mirror, Comparison, Freeze, |
|
Cross, Browser Function
|
|
Other Specification for USB Output
|
Resolution
White Balance
|
8M (3840*2160) frame rate 30fps
Auto/Manual/ROI White Balance
|
| Color Technique |
Ultra-Fine Color Engine (USB) |
| Capture/Control API |
Standard network API for Windows/Linux/Mac(USB) |
| Recording System |
Still Picture or Video
|
Other Specification for GE Output
|
| White Balance |
Auto/Manual/ROI White Balance |
| Color Technique |
Ultra-Fine Color Engine (USB) |
| Capture/Control API |
Standard network API for Windows/Linux/Mac(USB) |
| Recording System |
Still Picture or Video
|
| Software Environment (for GE port Connection) |
| Operating System |
Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) |
| OSx(Mac OS X) |
| Linux |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More |
| Ethernet Port: RJ45 Ethernet Port |
| Display: 19” or Larger |
|
CD-ROM
|
| Operating Environment |
| Operating Temperature(in Centidegree) |
-10~ 50 |
| Storage Temperature(in Centidegree) |
-20~ 60 |
| Operating Humidity |
30~80%RH |
| Storage Humidity |
10~60%RH |
| Power Supply |
DC 12V/2A Adaptor |
Camera Control Panel:
Camera Measurement Toolbar:
- The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar
Package including:
- 1 x 4K AF Camera (SONY imx678 Sensor)
- 1 x HDMI cable
- 1 x USB3.0 Cable (USB Video Cable)
- 1 x Mouse
- 1 x WiFi transmitter
- 1 x 32G U-Disk
- 1 x Power Supplier (EU, US and UK for choice)
|
