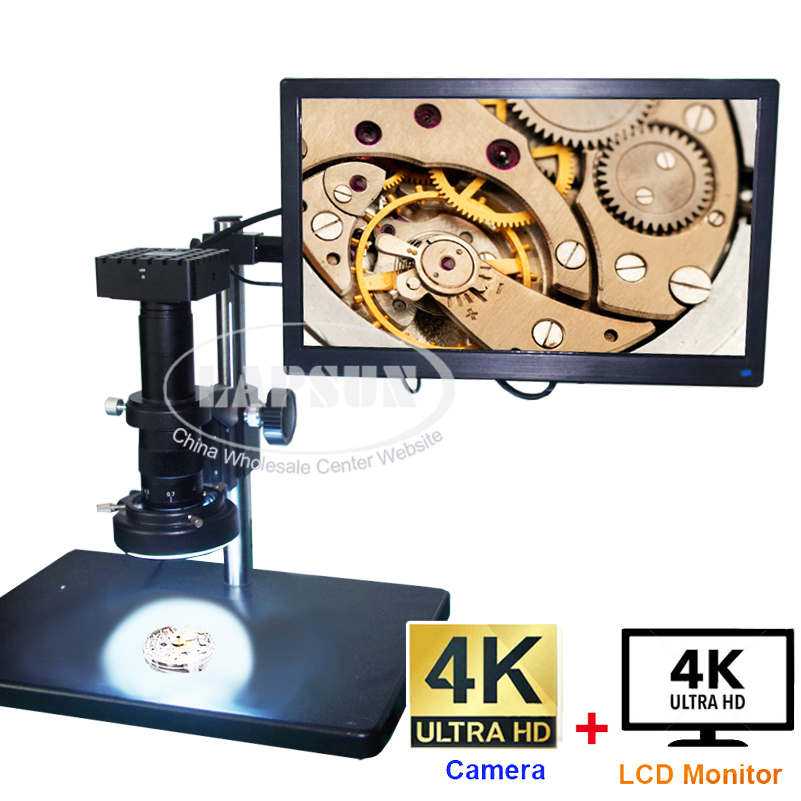

4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6" 4K IPS UHD Monitor(Full 4K Solution)
  • 4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6
  • 4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6
  • 4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6
  • 4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6
  • 4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6" 4K IPS UHD Monitor(Full 4K Solution)

4K HDMI Industrial Camera Video Microscope Industrial Camera with Measurement + 15.6" 4K IPS UHD Monitor(Full 4K Solution)

$695.00



  • Description
  • Reviews
  • Shipping & Returns

















































































Best sale 4K HDMI High Definition Industrial Camera Video Microscope Camera / Industrial Camera with Measurement Function  + 15.6" 4K 3840x2160 IPS UHD Monitor  + 10-180X Zoom C-mount Lens





Camera Feature:

  • UI Digital design, mouse operation, humanized design
  • Labeling functions:  Point coordinates, cross lines, coordinate systems, text annotations
  • Length measurement:  Line length, line length, curve length, parallel line distance, point line distance
  • The center distance:  The radius fixed circle, two points setting circle, three points setting circle
  • Geometric measurement:  Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
  • The geometric area:  Polygon, square
  • Image fast:  Support for 4K static photos
  • Video video:  Support 4K video
  • Measurement system:  S-EYE












Camera Specification:

  • Image sensor:  FULL HD 4K industrial camera sensor 1/1.8 inch
  • Effective pixel:  12M
  • Pixel size:  1.85*1.85um
  • Frame rate:  4K 30fps@3840*2160

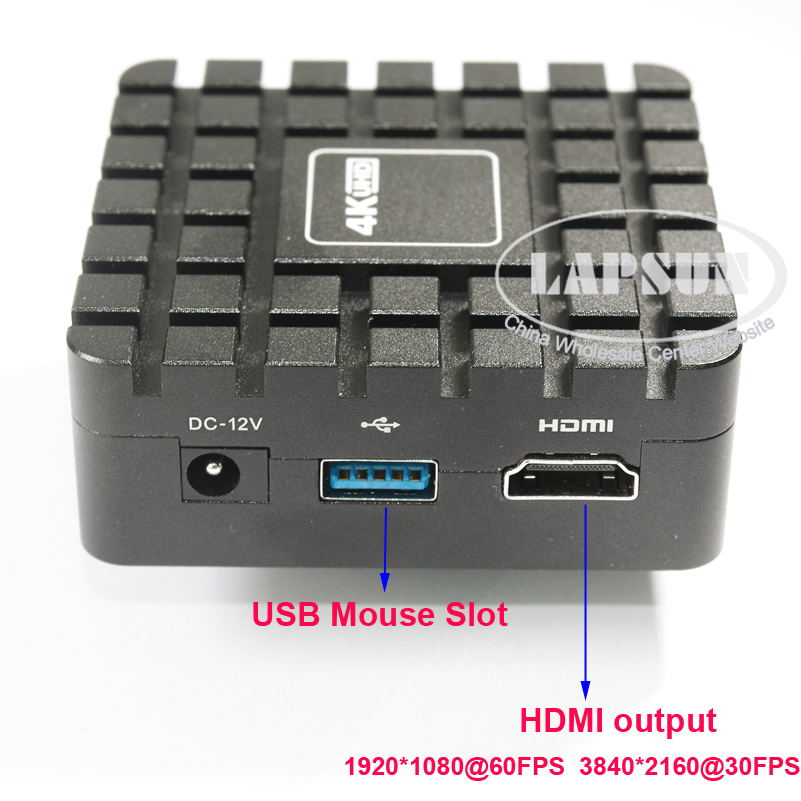

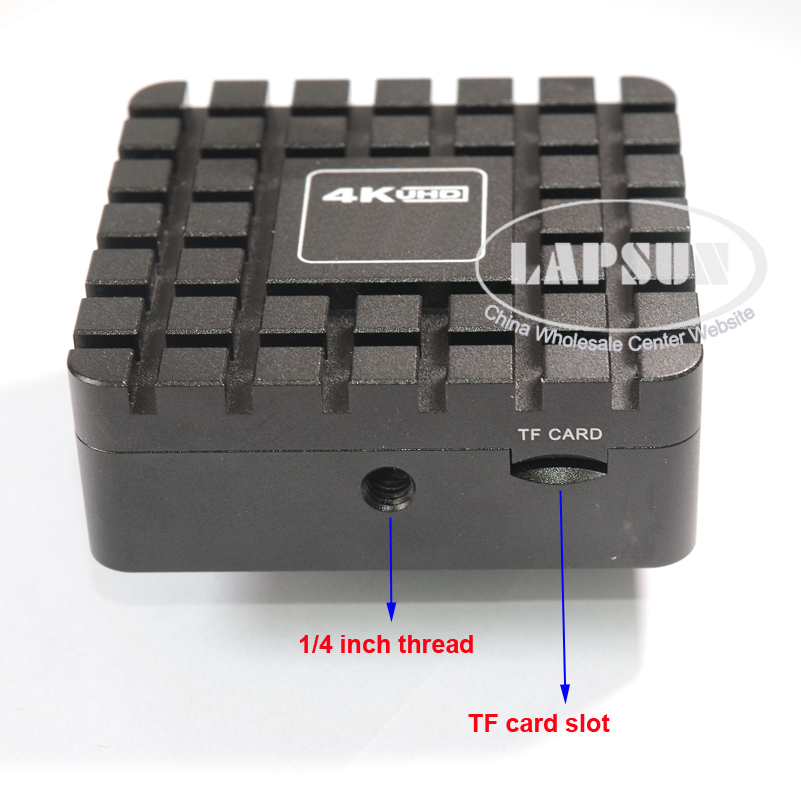

  • Output interface:  4K HDMI, USB (only for USB mouse, can not output the video to the PC), TF card
  • Power supply:  DC-12V
  • Thread: C mount

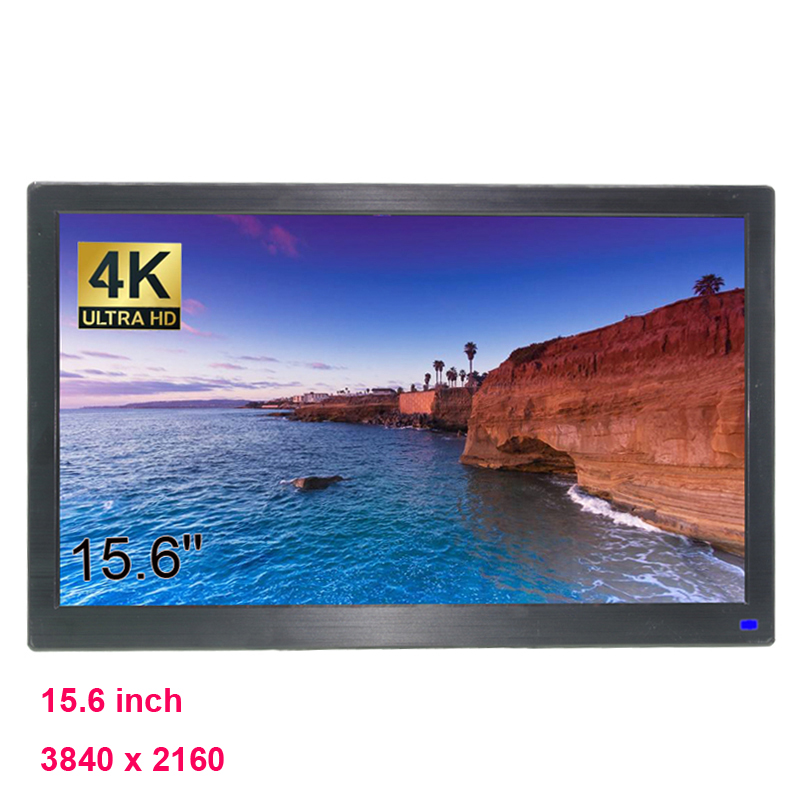

IPS UHD Monitor:

  • SHARP Latest 4K IPS LCD Display Panel
  • Screen Size : 15.6"
  • Screen Resolution : 3840 x 2160 pixels
  • Screen Brightness : 350 cd/m2
  • Screen Contrast : 1000 : 1
  • Viewing Angle : 178° (H) x 178° (V)
  • Video Input : HDMI (3840 x 2160 30HZ, 1920 x 1080 60HZ)
  • Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 2000mA




C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

Basic Microscope Set Package incluede:

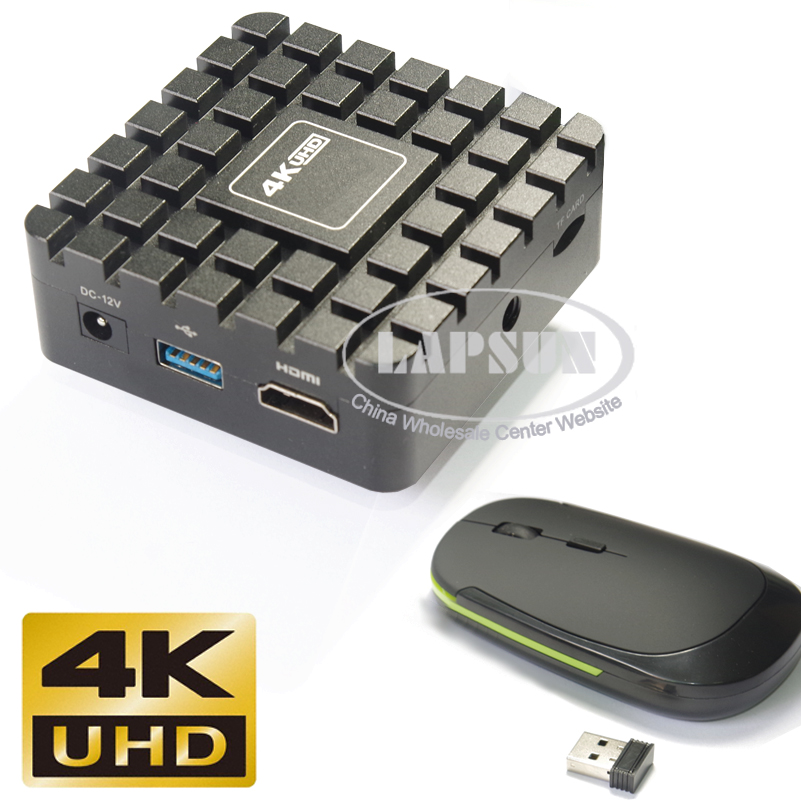

  • 1 x Camera Body
  • 1 x HDMI Cable
  • 1 x Wirless USB Mouse
  • 1 x Metal Table Stand
  • 1 x 10-180X C-MOUNT Lens
  • 1 x 144 Bulbs Microscope LED Ring Light
  • 1 x 100V-240V power supply (EU / UK / AU Adapter for free)
  • 1 x 15.6" 4K 3840x2160 IPS UHD Monitor
  • 1 x 100V-240V power supply ( for Monitor)
