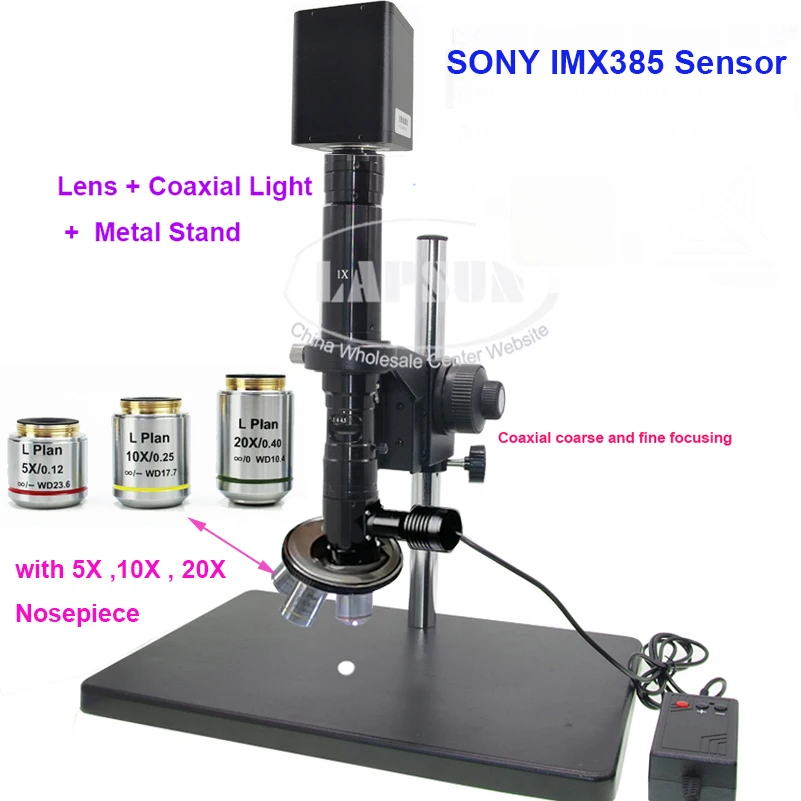

50X-2000X 4000X Sony IMX385 V2 60FPS HDMI C-Mount Coaxial Light Lens With Fine Adjustment Stand Industry Camera Microscope Set

50X-2000X 4000X Sony IMX385 V2 60FPS HDMI C-Mount Coaxial Light Lens With Fine Adjustment Stand Industry Camera Microscope Set

$839.00



  • Description
  • Reviews
  • Shipping & Returns





































































Zoom Inspection Monocular C-mount Lens + Coaxial Light + 1080P@60FPS HDMI Industrial Digital Microscope Camera CCD
Support U Disk Saving Photos and Videos WDR(Wide Dynamic Range)
Sensor: SONY IMX385










Digital Camera Feature:



  • High Quality, High Resolution, Clear Images
  • 1080P FULL HD 60FPS high speed camera
  • UI design menu, easy to control by mouse
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.










Specification:




  • Image Sensor : SONY IMX385 Colour CMOS
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC12V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Digital Magnification / Zoom : Support
  • Saving function : Support U Disk Saving Photos and Videos

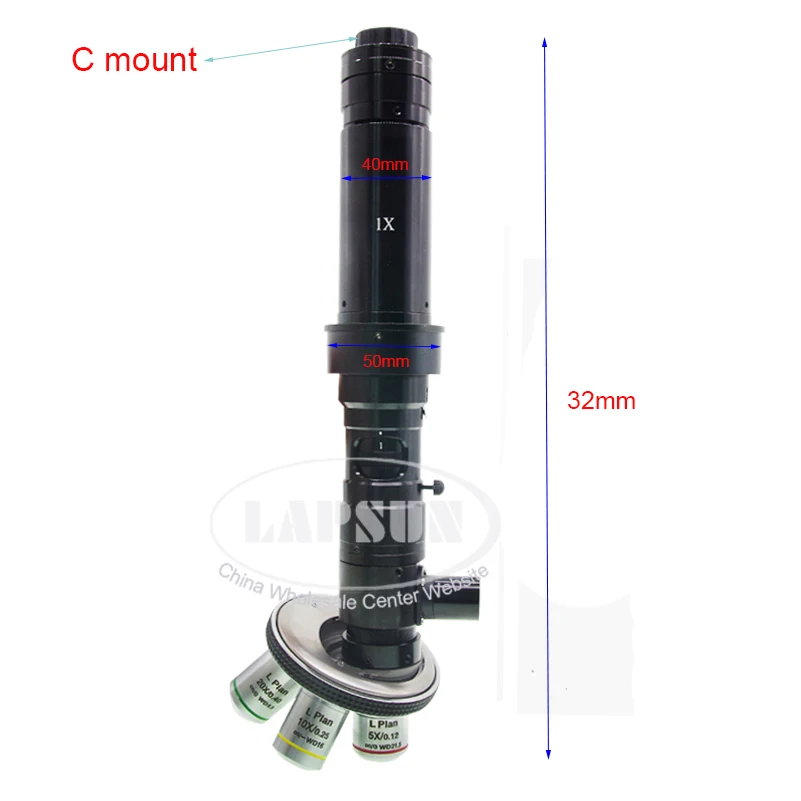

LENS Feature:


















  • Shadow-free coaxial light
  • C-mount lens
  • Sharp images
  • Optical multiplier(option):
    3.5X-22.5X(Digital multiplier 100X-1000X) ,
    7X-45X(Digital multiplier 200X-2000X),
    14X-90X(Digital multiplier 400X-4000X)
  • Mount: C-mount for PC or TV camera connection (camera sold separately)
  • Working distance: 10-15mm
  • Field of view: 3mm-0.1mm
  • Illumination: coaxial light
  • Light Power input: 110 - 240V, 50 - 60HZ, auto switching
  • Pillar: 320mm long

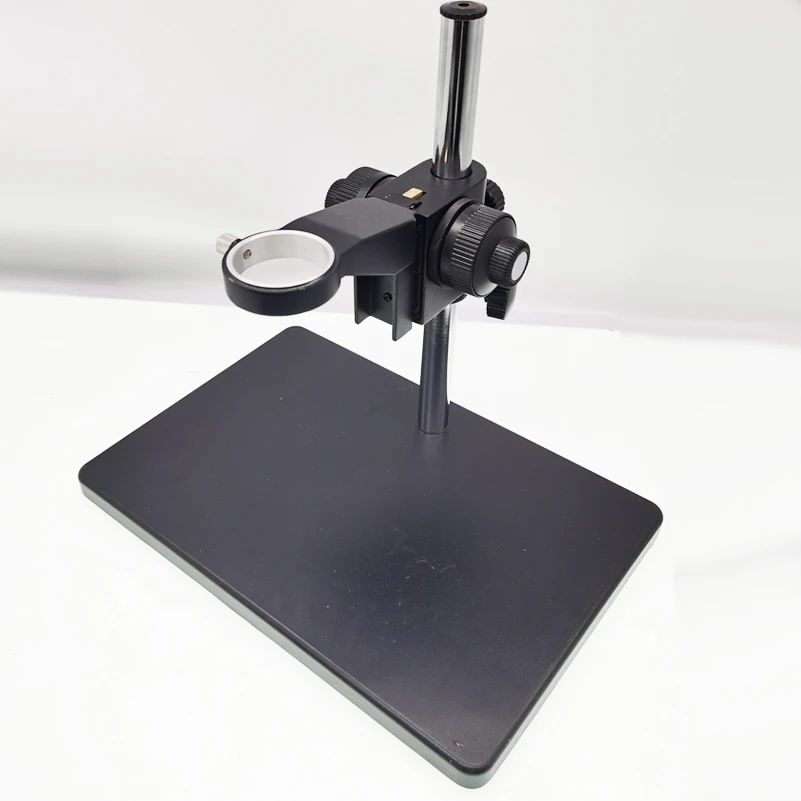

Vertical Metal Stand:



  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Coaxial coarse and fine focusing
  • One scale of fine focusing: 0.02 mm
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Weight: 3kg

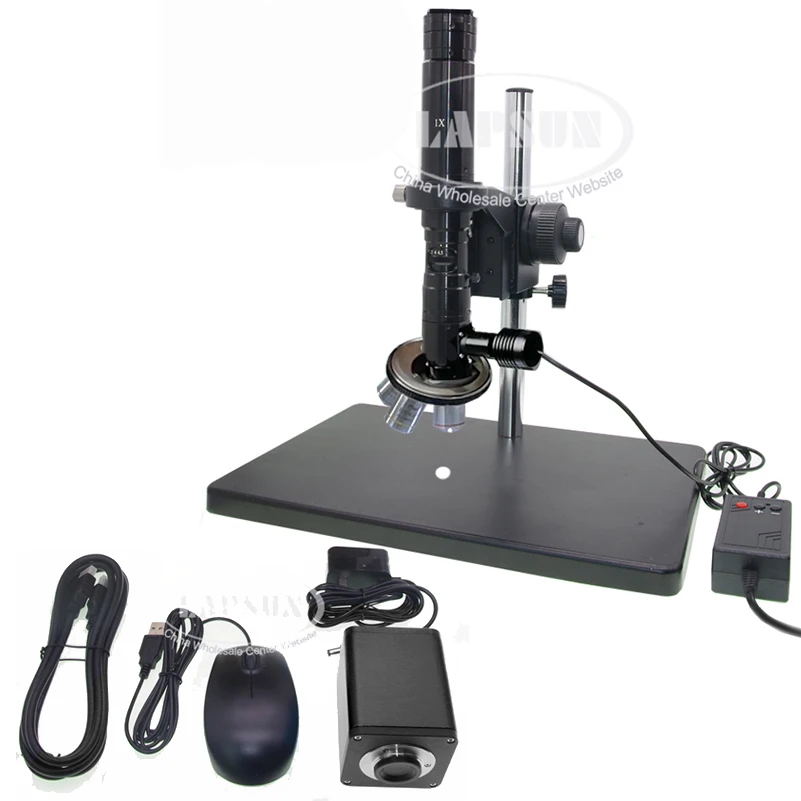

Package including:



  • 1 x Coaxial C-mount Lens
  • 1 x Coaxial Light
  • 1 x Metal Stand
  • 1 x IMX385 V2 HDMI Digital Camera
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x 100V-240V power supply (EU / UK / AU / US Adapter for free)
