Feature:
- Camera functions: horizontal / vertical mirror image, picture freezing, photographing and video recording
- Grid line horizontal line, vertical line and center scale line can define the color and thickness by themselves
- With simple measuring crosshair
- Scientific research, digital teaching (teaching, demonstration and academic discussing);
- Digital laboratory, medical research;
- Machine vision (PCB detection, IC quality control);
Specification:
- Zoom Lens
- Zoom Lens: TZM0756-W100-TV050 zoom lens,0.7X-5.6X zoom range
- Working Distance: 37.5mm-160mm (Determined by the auxiliary objective)
- NA: 0.018-0.092(With W100,1x auxiliary objective)
- Resolution: 18.6um-3.65um(With W100,1x auxiliary objective)
- Field: 0.99mm-34.28mm
- Other Optional Objective: Infinite microscope objective (Both biological microscope objective and metallographic microscope objective can be used)
- Dimensions: 188mm x 52mm
- Bracket Interface: Standard 50mm
- Digital Camera Interface and Button
- HDMI: Comply with HDMI1.4 standard. 4K or 1080P format video output for standard FHD monitor
- LED: LED status indicator
- USB Mouse: Connect USB mouse for easy operation with embedded XCamView software
- DC12V: Power adapter connection (12V/1A)
- SD: Comply with SDIO3.0 standard and SD card could be inserted for video and images storage
- Digital Camera Camera Hardware
- H4K8MPA Camera: Comply with HDMI1.4 standard; 30fps@4K/30fps@1080P
- Sensor: Sony IMX415(C),1/2.8"(5.57x3.13), Pixel size1.45x1.45um
- G Sensitivity /Dark Signal/Dynamic Range /SNR: 300mv with 1/30s/NA/NA/NA
- FPS/Resolution: 30@3840*2160 (HDMI)
- Exposure Time: 0.04~1000ms
- Digital Camera Software
- Video Saving: Video format:8M(3840*2160) H264/H265 encoded MP4 file;
- Video saving frame rate:30fps (related with SD card performance);
- Image Capture: 8M (3840*2160) JPEG image in SD card
- Measurement Saving: Measurement information saved in different layer with image content; Measurement information is saved together with image content in burn in mode.
- ISP Function: Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
- Image Operations: Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function
- Embedded RTC(Optional): To support accurate time on board
- Restore Factory Settings: Restore camera parameters to its factory status
- Multiple Language Support: English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian

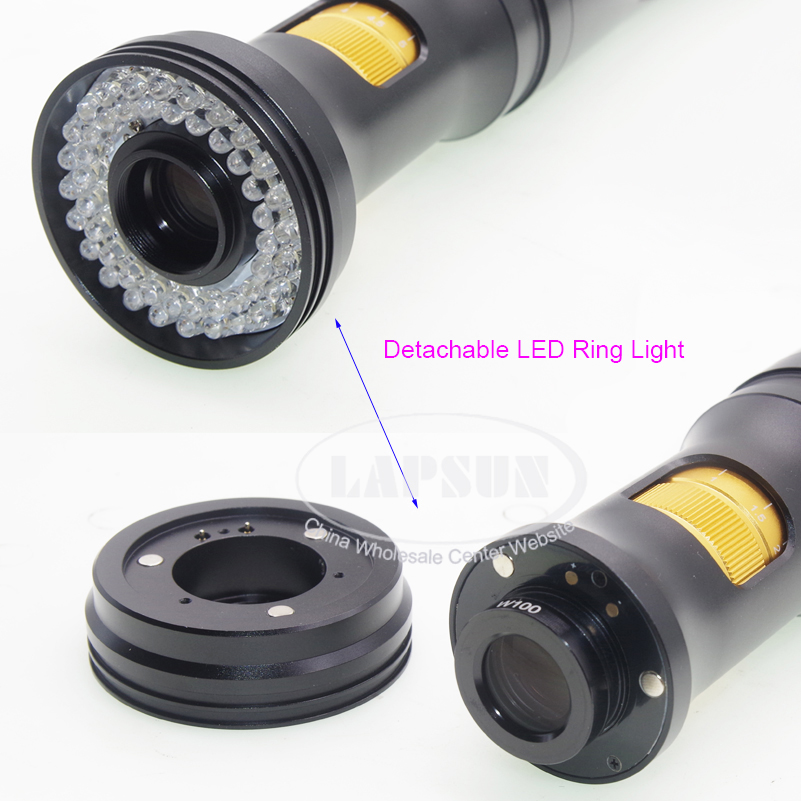

- Lighting Module
- 48 LED Ring Light
- Color Temperature: 6500K(white)
- Luminance: MAX: 10000LUX
- Power: 3W
XCamView UI:
-
The ZM0756H4K8MPA camera’s UI shown in Figure 8 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar on the top of the video window and a Synthesis Camera Control Toolbar on the bottom of the video window.
Package including :
- 1 x ALL IN ONE HDMI Camera
- 1 x Power Supply
- 1 x USB Mouse
- 1 x HDMI Cable
- 1 x Metal Stand
