Auto Focus 1080P 60FPS SONY IMX385 V2 HDMI WDR Industry C-Mount Camera Microscope 180X 0.75X 0.5X 0.3X Barlow Lens 96 LED Ring Light

Auto Focus 1080P 60FPS SONY IMX385 V2 HDMI WDR Industry C-Mount Camera Microscope 180X 0.75X 0.5X 0.3X Barlow Lens 96 LED Ring Light


  • Description
  • Reviews
  • Shipping & Returns



2023 SONY IMX385 V2 Auto Focus Autofocal Industry HDMI Video Microscope Camera Support U Disk Saving Photos and Videos WDR(Wide Dynamic Range) Sensor + 5X-180X C-mount Lens + 0.75X 0.5X 0.3X 3 Barlow Lens + 96 LED Ring Light



Digital Camera Feature:


  • 1080P FULL HD 60FPS high speed camera
  • UI design menu, easy to control by mouse
  • Autofocus, when observation Objects of different heights, you do not need adjust the lens's Working distance
  • When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
  • When you adjust the lens's Working distance, you do not need adjust the lens's Magnification, The camera can Autofocus




  • Sensor: SONY IMX385 V2 Latest Sensor
  • Image Sensor : Colour CMOS
  • Pixel size : 1/2〞
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC5V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Magnification / Zoom : Support
  • Saving function : Support  U disk
  • 1.Before connecting power supply, please connect  mouse to the camera.

    2.Under AF mode, the program will automatically adjust the focus to provide a clear image; Switching to "Click F" mode, it will lock the focus after the system performed autofocus on the required image; Even if the image is blurry, with focus being locked, it will not trigger autofocus again; When “MF” (Manual Focus) is set, the MF can be adjusted .

    3.If autofocus cannot operate under special circumstances (e.g. Smooth reflect surface).  Move the focus frame to objects with details, change to “Click F” mode to perform one-off auto focus operation, or switch to “MF” mode for manual focus operation. needs to wait for a period of time When "Save Image" is selected, icons appear in the center of the screen and are automatically saved to U disk in jpg format.

    5.When pressing “Video” button to start recording, •Rec will appear at the lower right hand corner of the camera screen. By pressing “Video” button again, video recording will be stopped and automatically saved to TF card with H.264 format

    6.When saving the image / video, the folder and files will be named according to date and time respectively.

    7.When you need to correct the rear focus of the lens, select the "motor in the middle" and then adjust the mechanical rear focus to make the image clear.

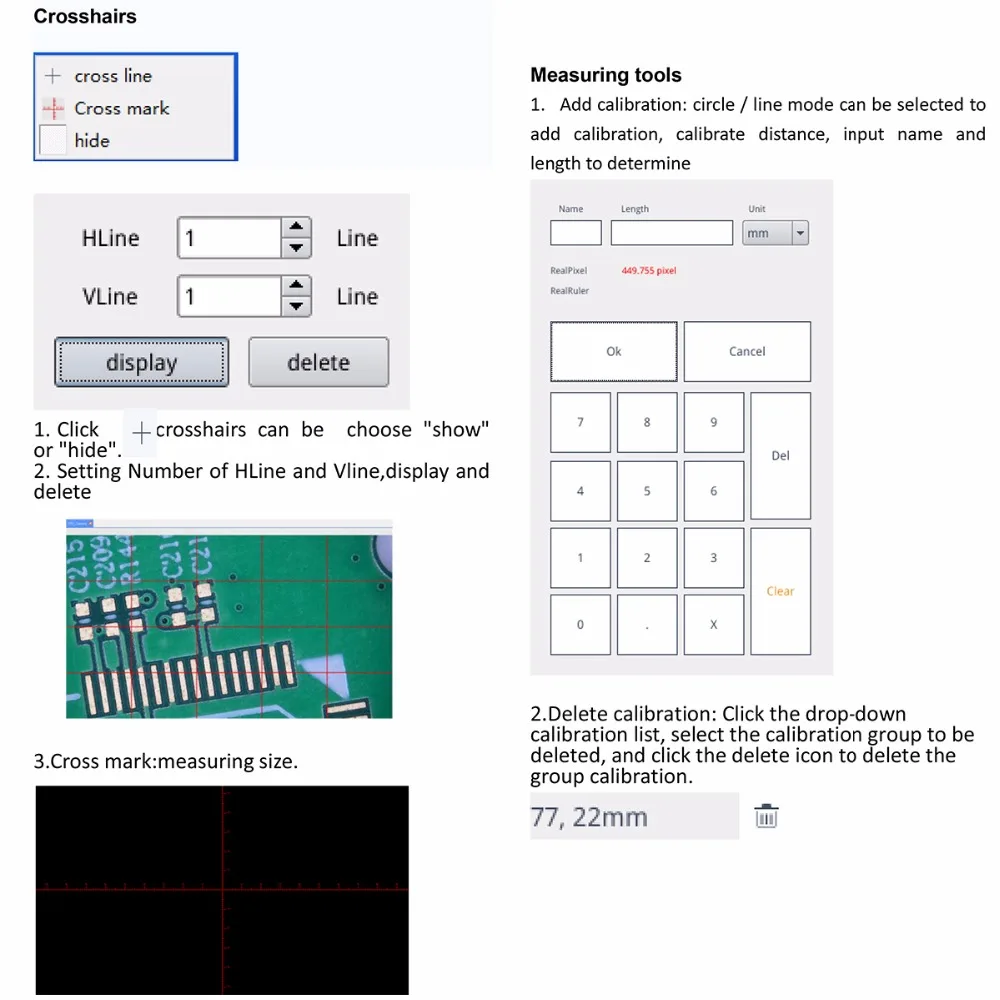

Measurement Function:


  • Labeling functions : Point coordinates, cross lines, text annotations
  • Length measurement: Line length, line length, curve length, parallel line distance, point line distance
  • The center distance : The radius fixed circle, two points setting circle, three points setting circle
  • Geometric measurement : Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles The geometric area: Polygon, square





  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

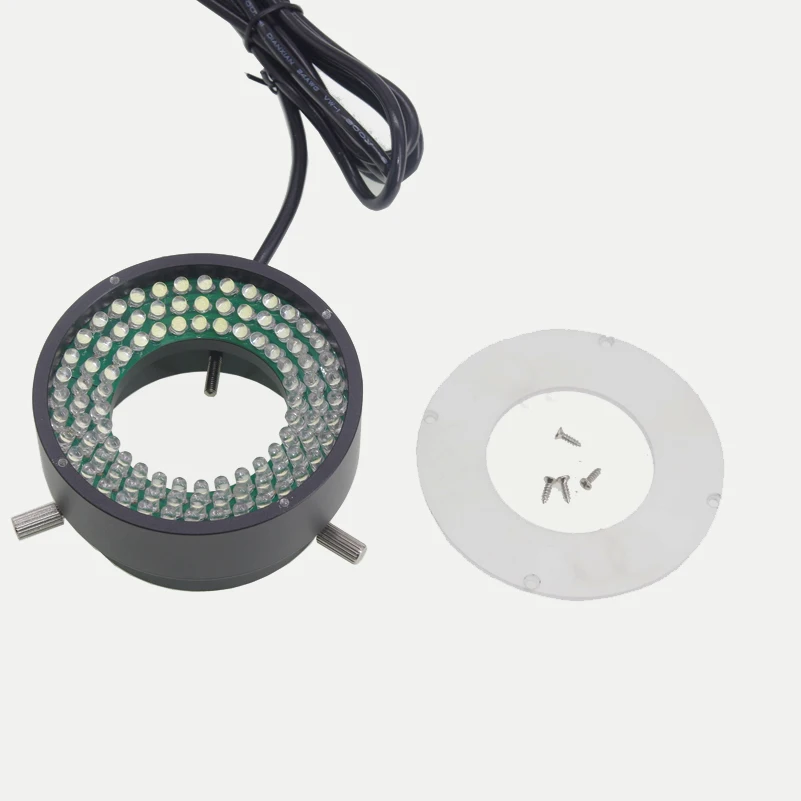

96 Bulbs Microscope LED Ring Light:


  • 96 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 10-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 15mm-50mm
  • Power: 10W





Package including:


  • 1 x Microscope Camera
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x Power Adapter
  • 1 x 10X-180X C mount Lens
  • 1 x 96 Bulbs Microscope LED Ring Light
  • 1 x 0.3X Auxiliary objective
  • 1 x 0.5X Auxiliary objective
  • 1 x 0.75X Auxiliary objective
