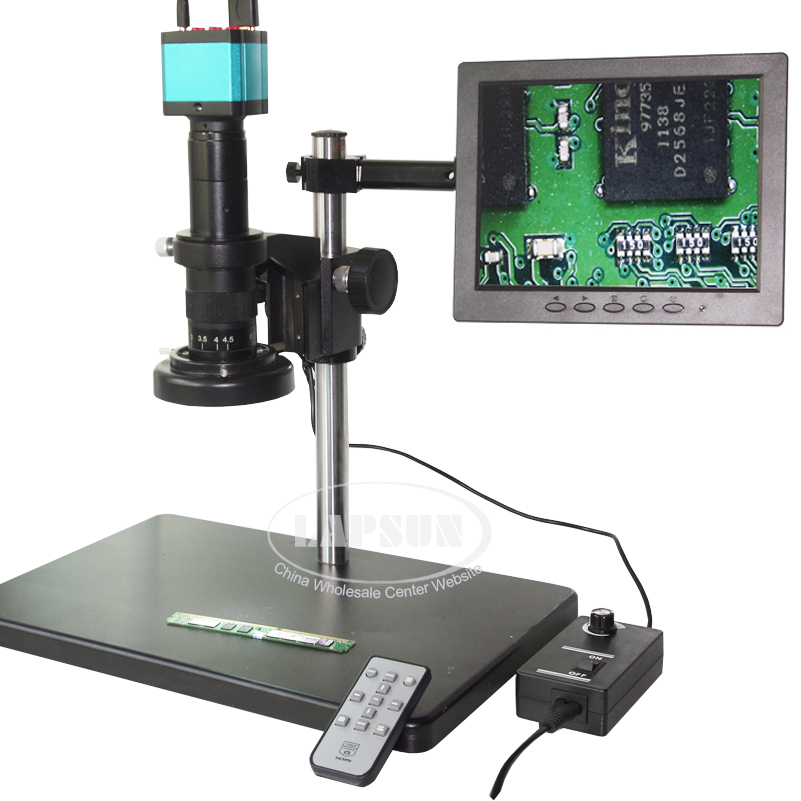

14MP 1080P HDMI USB Digit Industrial Microscope Camera 8" Monitor 100X 180X Lens
  • 14MP 1080P HDMI USB Digit Industrial Microscope Camera 8
  • 14MP 1080P HDMI USB Digit Industrial Microscope Camera 8
  • 14MP 1080P HDMI USB Digit Industrial Microscope Camera 8
  • 14MP 1080P HDMI USB Digit Industrial Microscope Camera 8
  • 14MP 1080P HDMI USB Digit Industrial Microscope Camera 8" Monitor 100X 180X Lens

14MP 1080P HDMI USB Digit Industrial Microscope Camera 8" Monitor 100X 180X Lens

$289.00



  • Description
  • Reviews
  • Shipping & Returns

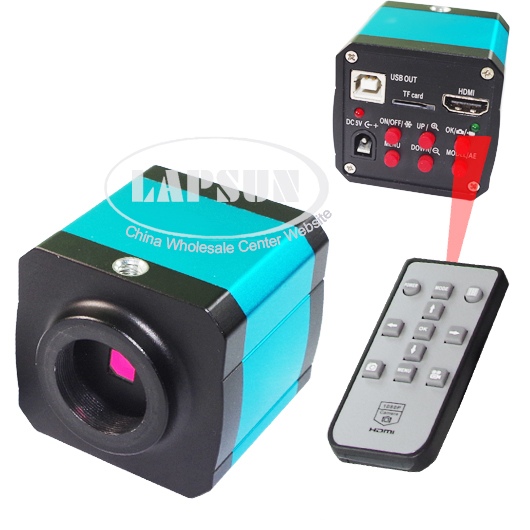

14.0MP HD Industrial Lab Microscope Camera
HDMI USB Output , TF Card Video Recorder +
8" HDMI TFT LCD Color Monitor +
Heavy Duty Boom Large Stereo Table Stand +







Features:

  • High Quality, High Resolution, Clear Images
  • 14 megapixel Panasonic sensor
  • Photo Model / Video Model
  • Industry Cmos Camera. It can show the living image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative,Compare function
  • Supply USB2.0,HDMI HD video,Two output ports
  • We sold a lot of to the factory for review and analysis, it is a good tool to find the problem directly on monitor.
  • Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB),.
  • HDMI Video resolution: 1920 *1080 @ 30FPS
  • USB Video resolution: 1920 *1080 @ 25FPS
  • TF Card Video Recorder
  • 1080P 1280*1080@30FPS video recorder
  • White balance: Auto/manual
  • Digital magnification: 5 times digital zoom
  • Brightness control: Auto/manual
  • Freeze: Support
  • OSD: Support
  • Film and record: Support
  • Cross cursor: Support multi-color, size adjustable
  • Transverse and vertical line Support multi-color, 4 pcs of transverse lines/vertical lines, moveable SNR Support
  • TF card interface: Max 32G
  • HDMI interface: Standard HDMI output (Type A)
  • Video format: AVI
  • Light: Auto
  • Color: Color
  • Negative: Support
  • Morror: Left/right,Up/Down
  • Freeze: Support
  • OSD: English/Chinese

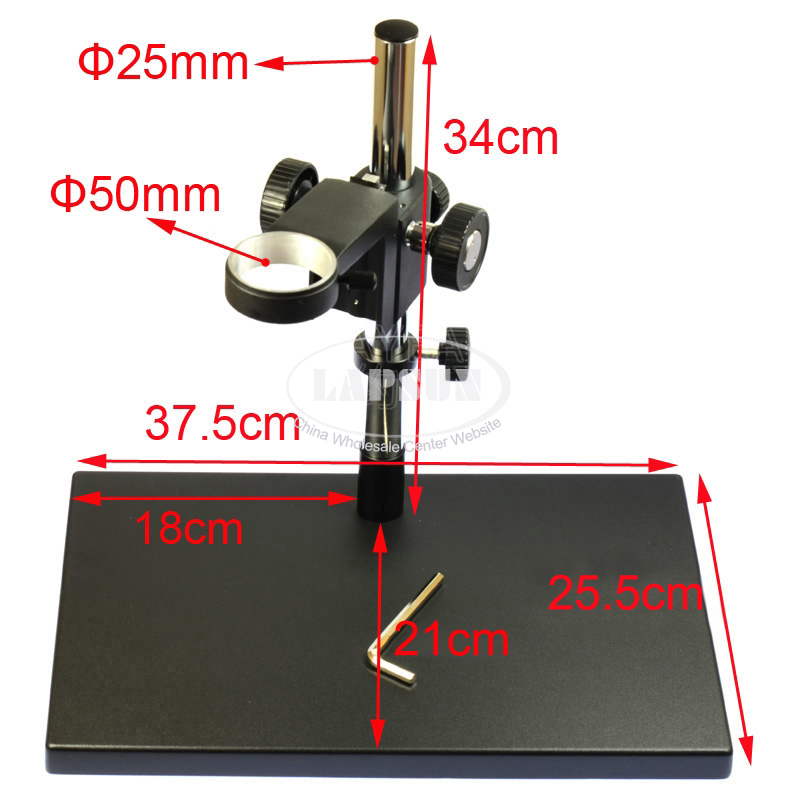

Stereo Table Stand Feature:

  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Item size: see the 4th picture
  • Weight: 2.6kg

8" HDMI TFT LCD Color Monitor:

  • 8 inch (1024 x 768) high resolution TFT LCD monitor
  • Clear image and colorful display
  • Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
  • Multi video input supported (HDMI, RCA, VGA, BNC)
  • Support 15-pin VGA input , connect with PC (1024*768)
  • Suitable for CCTV monitor, PC monitor or indoor use
  • Auto standy function with timer switch and no signal
  • Screen Size : 8"
  • Screen Resolution : 1024 x 768 pixels
  • Aspect Ratio : 4 : 3
  • Screen Brightness : 400 cd/m2
  • Screen Contrast : 400 : 1
  • Viewing Angle : 160° (H) x 160° (V)
  • Response Time : <= 12ms
  • Video Input : HDMI, AV-in, VGA, BNC
  • Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
  • Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

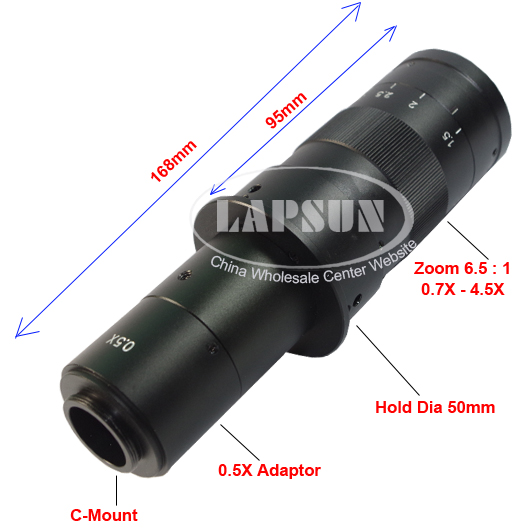

C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

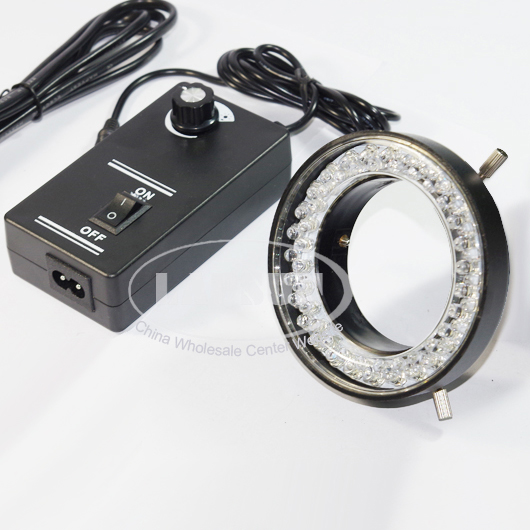

56 Bulbs Microscope LED Ring Light:

  • 56 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • With control box
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 35mm-60mm

Package Content:

  • 1 x 14MP Digital Camera
  • 1 x C-MOUNT Lens
  • 1 x 8" HDMI TFT LCD Color Monitor
  • 1 x HDMI Connect cable
  • 1 x power supply
  • 1 x USB line
  • 1 x Software DISC
  • 1 x LED Ring light
  • 1 x Digital Microscope Table Stand
