The LP313 Camera is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.
LP313 Camera comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB for image-capture and video-recording.
Camera Application:
- Scientific research, digital teaching (teaching, demonstration and academic discussing);
- Digital laboratory, medical research;
- Machine vision (PCB detection, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aviation and military;
Feature:
- Auto/Manual focus with the movement of the sensor
- Sony Exmor/STARVIS back-illuminated CMOS sensor
- 4K HDMI/USB/LAN/Wi-Fi multiple video outputs
- 4K/1080P auto switching according to monitor resolution
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- Embedded SLView for the control of the camera and image processing
Specification:
- SONY imx334 Sensor, senzor size:1/1.8"
- Pixel(μm) : 2.0x2.0
- Resolution: 4K Ultra HD (8mp 3840x2160)
- Preview frame rate： 60fps @ 4K under HDMI , 30fps@3840x2160 (USB)
- Max recording frame rate: 50fps-60fps under HDMI
- Exposure : 0.1ms~1000ms
- Real time measurement
- Support U disk storage
Video Output:

- HDMI Interface
- 1. Comply with HDMI2.0 standard;
- 2. Max frame rate 60fps@4K or 60fps@1080P;
- 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
- 2. H264 encoded video;
- 3. Bandwidth adjustment in real time;
- 4. unicast/multicast configuration;
- 5. DHCP configuration or manual configuration
-
- USB3.0 Output
- 1. Max frame rate 15fps@4K, 60fps@1080P Resolution
- 2. Camera Working with Computer via USB3.0 cable,
- 3. RisingTech will provide RisingView software for buyer
-
-
-
- LAN Video Output
- 1. Max frame rate 15fps@4K or 60fps@1080P;Resolution
- 2. Camera Working with Computer via RJ45 cable,
-
-
-
Measurement Function:
- Labeling functions : Point coordinates, cross lines, text annotations
- Length measurement: Line length, line length, curve length, parallel line distance, point line distance
- The center distance : The radius fixed circle, two points setting circle, three points setting circle
- Geometric measurement : Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles The geometric area: Polygon, square
C-MOUNT Lens:
- Working distance: 95mm
- zoom c-mount Lens
- 0.5X C-mount adapter
- zoom ratios: 6.5:1
- Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display,when using 0.5X Auxiliary objective , Objective Magnification Power up to 5X-90X)
- Size: 180mm(L) * 50mm(DIA)
- Weight: 450g
144 Bulbs Microscope LED Ring Light:
- 144 bright white LED bulbs
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100%Adjustable,high brightness
- Variable intensity control
- Power input: 100-240V, 50-60HZ
- Suit for the dia of the lens: 30mm-63mm
Universal Stand Feature:
- This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
- The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
- Weight: 4kg

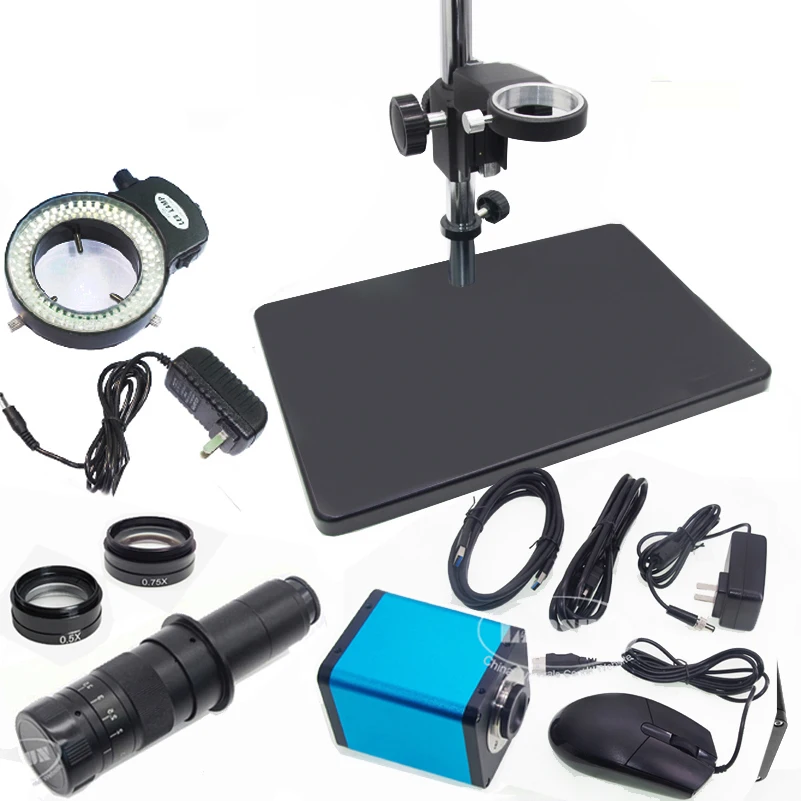

Package including:
- 1 x 4K camera
- 1 x HDMI cable
- 1 x USB3.0 Cable
- 1 x USB Mouse
- 1 x Power Supplier
- 1 x 10X-180X C mount Lens
- 1 x 0.5X Auxiliary objective
- 1 x 0.75X Auxiliary objective
- 1 x Metal Stand
- 1 x Universal Arm
- 1 x 144 Bulbs Microscope LED Ring Light
|
