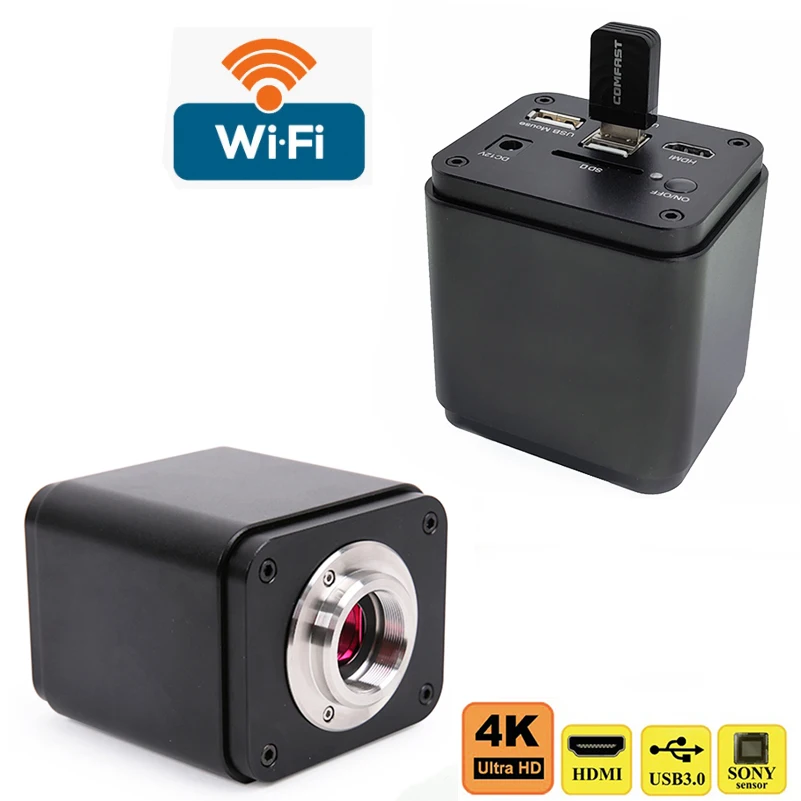

SONY IMX585 1/1.2" 4K 30FPS HDMI USB3.0 WIFI Industrial Microscope camera

SONY IMX585 1/1.2" 4K 30FPS HDMI USB3.0 WIFI Industrial Microscope camera

$520.00



  • Description
  • Reviews
  • Shipping & Returns





































































Ultra HD 4K@30FPS 1080P@40FPS SONY IMX585 1/1.2" Sensor HDMI USB 3.0 output WIFI Industrial Microscope Camera 4K HDMI USB microscope Camera






The SCAMCAM4K series is the next-generation live-view imaging-system with 4K resolution at 30 FPS,1080P resolution at 60 FPS.

LPXCAM4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

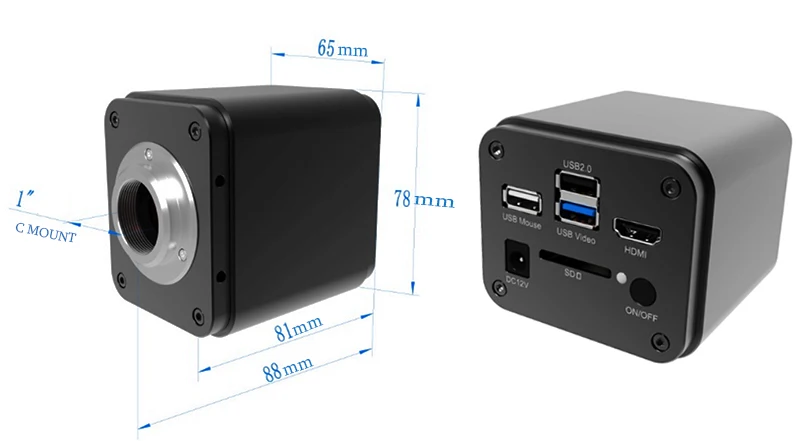

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB for image-capture and video-recording.

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.

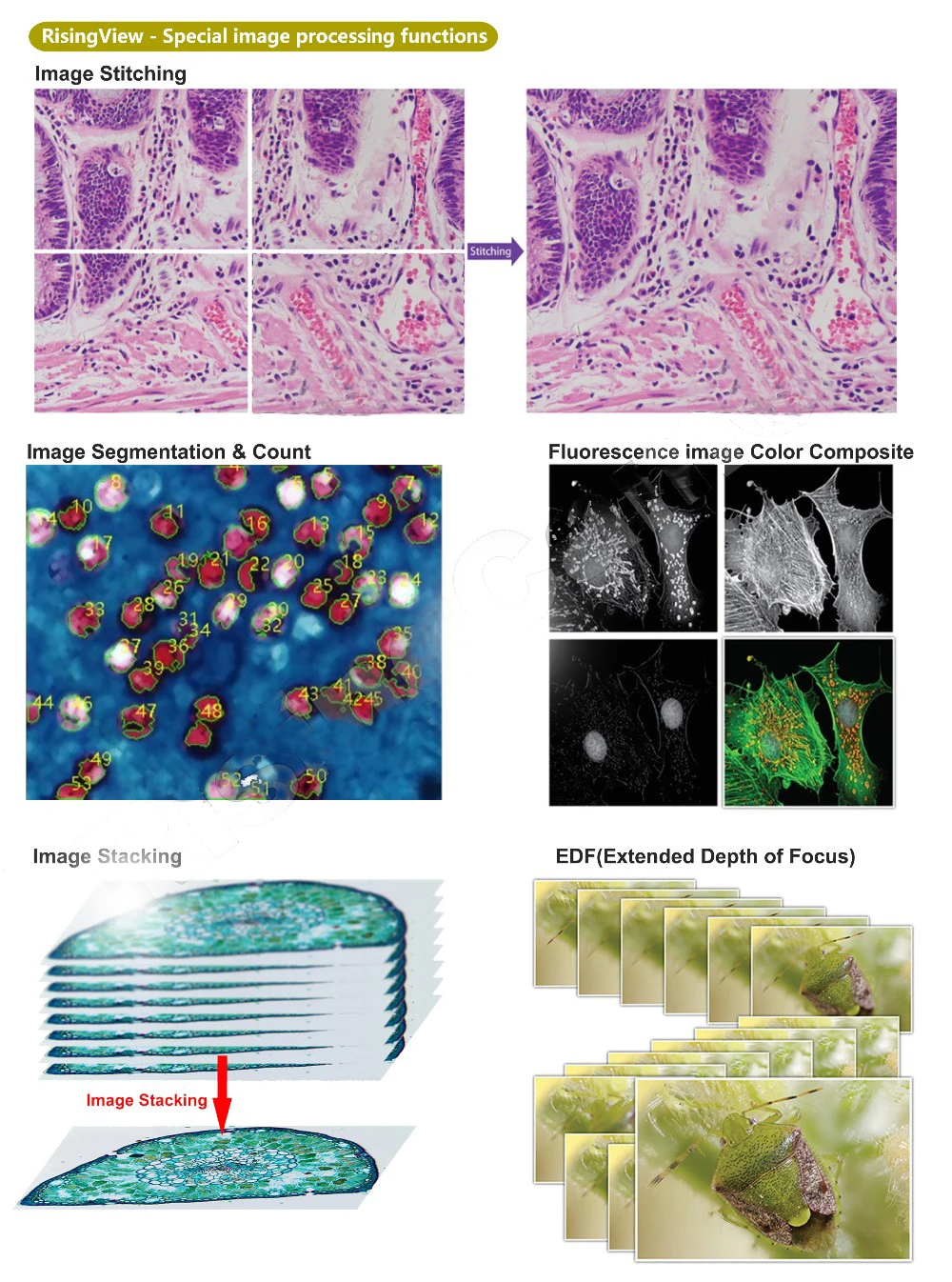

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.














Camera Application:



  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;

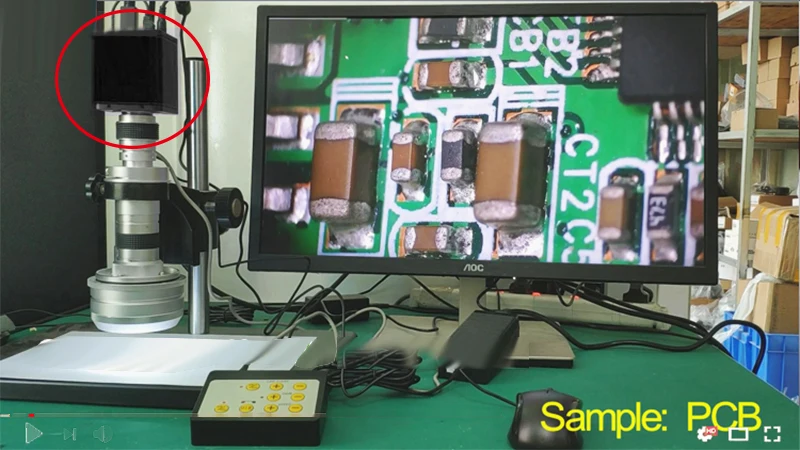

  • Machine vision (PCB detection, IC quality control);

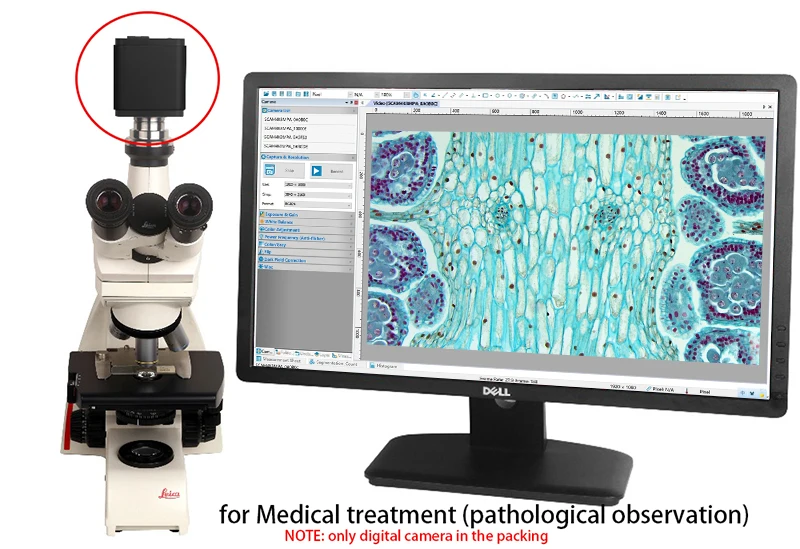

  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;



Feature:



  • 4K HDMI  multiple video output
  • H.265/H.264 codec
  • 8G bit DDR4 running smoothly
  • 4k/1080P switch adaptively
  • 30fps for USB output
  • Embedded measurement functionsand meausurement objects can be exported to Excel or saved with the image data in layer mode or in burn in mode.
  • RisingView application for the PC output via USB3.0

Specification:



  • Sensor:  SONY IMX585 Sensor, senzor size:1/1.2"
  • Pixel(μm) :  2.9x2.9 (SONY IMX585)
  • Resolution: 4K Ultra HD (8mp 3840x2160)
  • Preview frame rate:30fps@4K under HDMI , 30fps@3840x2160 (USB 3.0)
  • Max recording frame rate: 50fps-60fps under HDMI (1080P)
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk and SD card storage

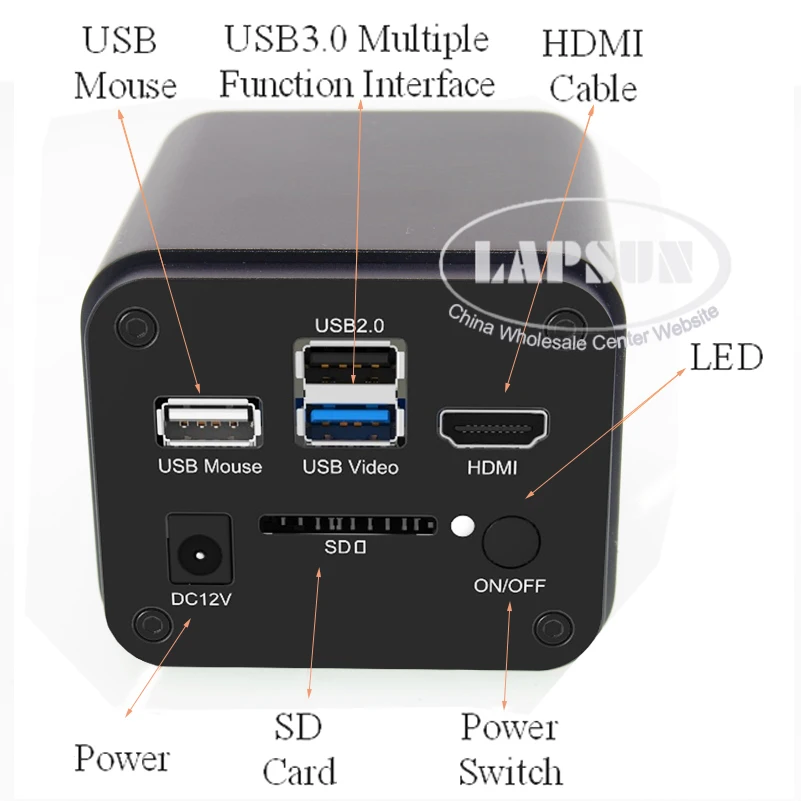

  • HDMI, USB output







Video Output:



  • HDMI Interface
  • 1. Comply with HDMI2.0 standard;
  • 2. Max frame rate 30FPS@4K or 60fps@1080P;
  • 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
  • USB3.0 Output
  • 1. Max frame rate 30fps@4K Resolution
  • 2. Camera Working with Computer via USB3.0 cable,

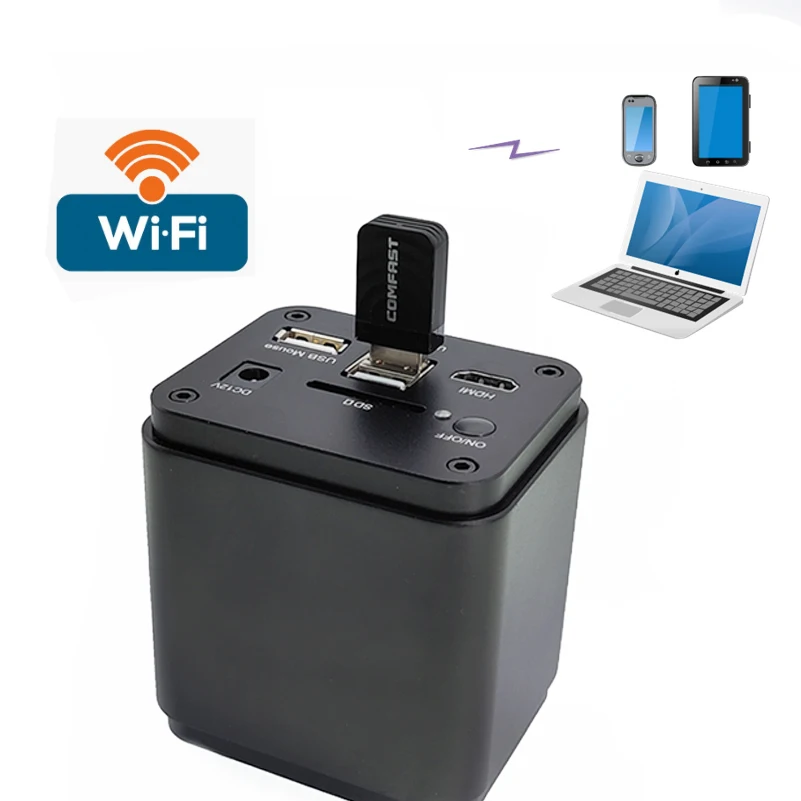

  • WIFI Output
  • 1. Max frame rate 30fps@1080P Resolution
  • 2. Connecting 5G WiFi adapter (USB2.0 slot) in AP/STA mode
  • 3. 1080P H264 format video, 8M (3840*2160) image

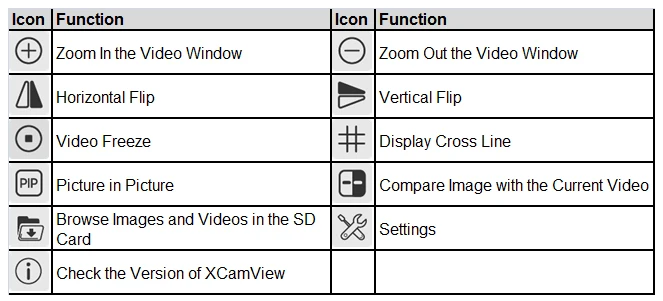

Camera Control Panel:





Camera Measurement Toolbar:





  • The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar

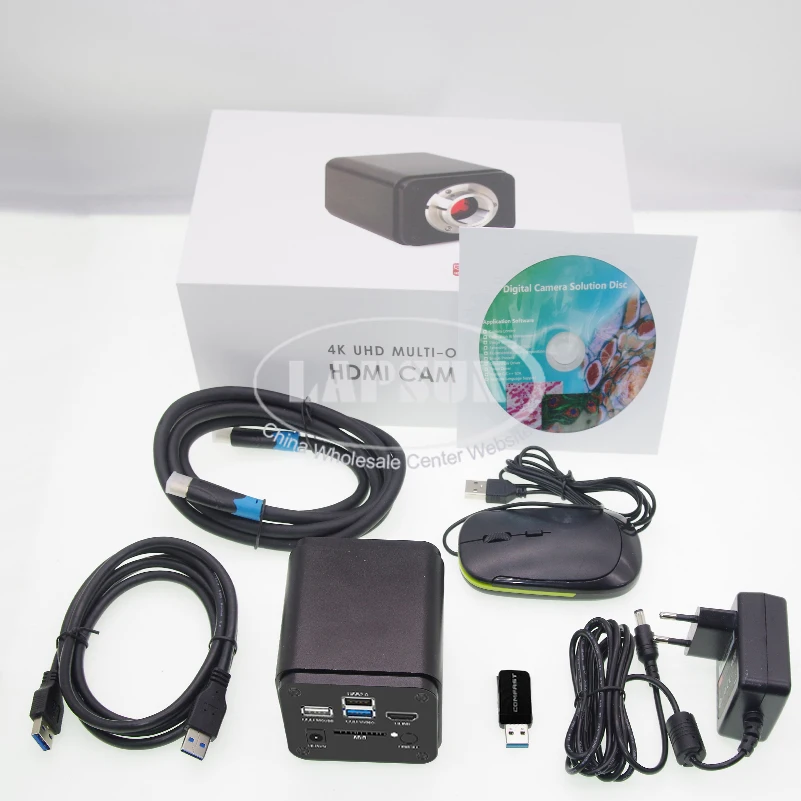

Package including

  • 1 x 4K Camera (SONY IMX585 Sensor)
  • 1 x HDMI cable
  • 1 x USB3.0 Cable (USB Video Cable)
  • 1 x Mouse
  • 1 x WiFi transmitter
  • 1 x Power Supplier (EU, US and UK for choice)
