2023 4K IMX334 V3 60FPS HDMI USB LAN Industry Microscope Camera with 0.75X Barlow Lens

V3 4K Ultra HD 60fps SONY imx334 1/1.8" Sensor HDMI digital microscope camera 4K HDMI USB GE microscope camera + 5X-160X C-mount Lens + 96 LED Ring Light

The Camera V3 is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.

The Camera V3 comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.

Camera Application:

• Scientific research, digital teaching (teaching, demonstration and academic discussing);
• Digital laboratory, medical research;
• Machine vision (PCB detection, IC quality control);
• Medical treatment (pathological observation);
• Food (microbial colony observation and counting);
• Aviation and military;

Feature:

• 4K HDMI / GE multiple video output
• High performance and fast response video
• H.264 codec
• 4k/1080P switch adaptively, Preview frame rate 60fps, max recording frame rate: 60fps

Specification:

• SONY imx334 Sensor, senzor size:1/1.8"
• Pixel(μm) : 2.0x2.0
• Resolution: 4K Ultra HD (8mp 3840x2160)
• HDIM Video Output Preview frame rate： 4K@60fps / 4K@30fps / 1080P@60fps / 1080P50@fps
• Exposure : 1/50s(1/60s)～1/10000s
• Real time measurement
• Support U disk storage
• HDMI output

Video Output:

• HDMI Interface
• 1. Comply with HDMI2.0 standard;
• 2. Max frame rate 60fps@4K or 60fps@1080P;
• 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
• USB3.0 Output
• 1. Max frame rate 10fps@4K, 30fps@1080P Resolution
• 2. Camera Working with Computer via USB3.0 cable,
• 3. RisingTech will provide RisingView software for buyer
• GE Output
• 1. Max frame rate 10fps@4K, 30fps@1080P Resolution
• 2. H264 encoded video;
• 3. Bandwidth adjustment in real time;
• 4. unicast/multicast configuration;
• 5. DHCP configuration or manual configuration

Camera Measurement Toolbar:

• The Measurement Toolbar will pop up when moving mouse cursor to any place near the Top left of the video window. Here is the introduction of the various functions on the Measurement Toolbar

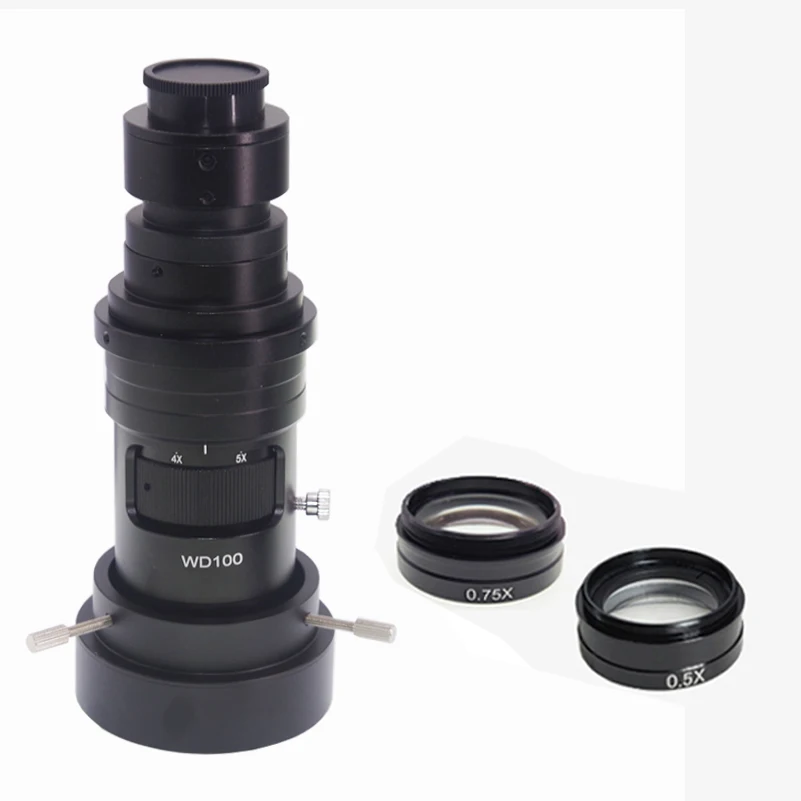

5X-160X C-MOUNT Lens:

• Working distance: 100mm
• zoom c-mount Lens
• 0.4X C-mount adapter
• zoom ratios: 6.7:1
• Objective Magnification Power by 0.7 - 5X(about 5 - 160X on the display)
• Size: 180mm(L) * 50mm(DIA)
• Weight: 450g

96 Bulbs Microscope LED Ring Light:

• 96 bright white LED bulbs
• 100,000 hours of life
• Intense and focused shadow-free illumination
• The brightness of 10-100%Adjustable,high brightness
• Variable intensity control
• Power input: 100-240V, 50-60HZ
• Suit for the dia of the lens: 15mm-50mm
• Power: 10W

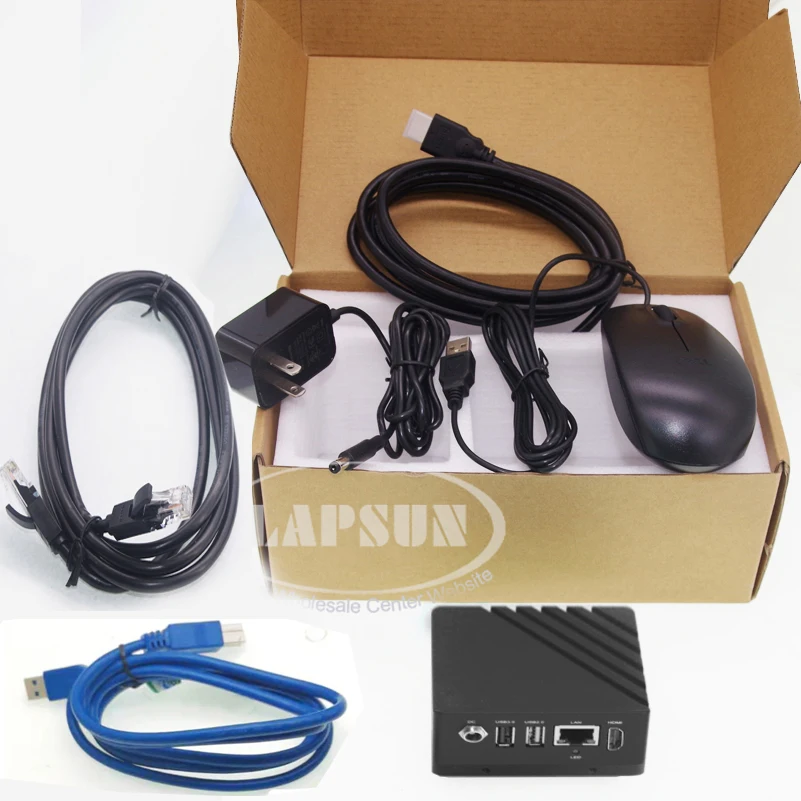

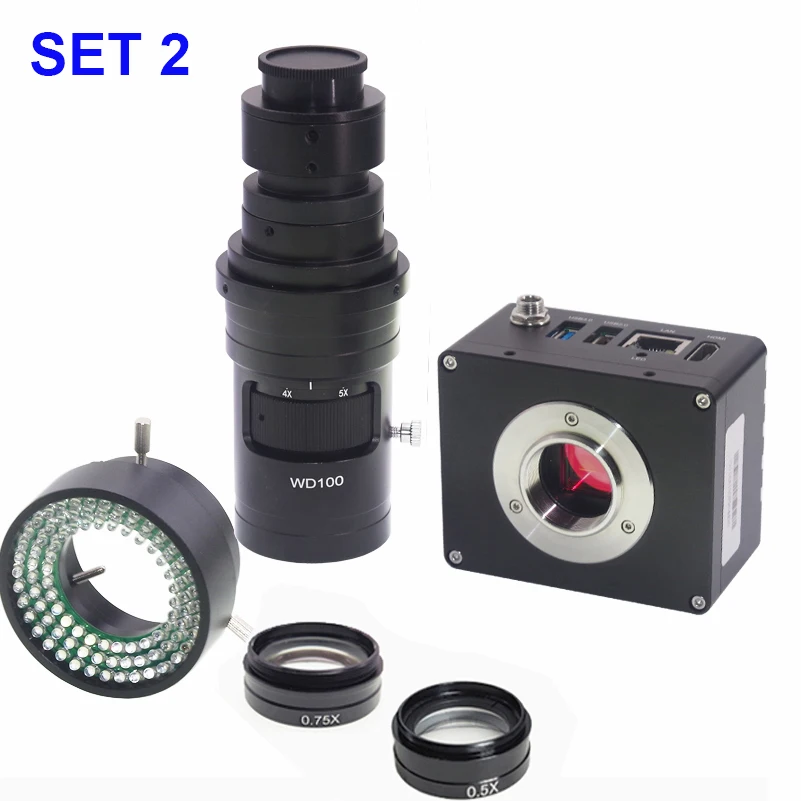

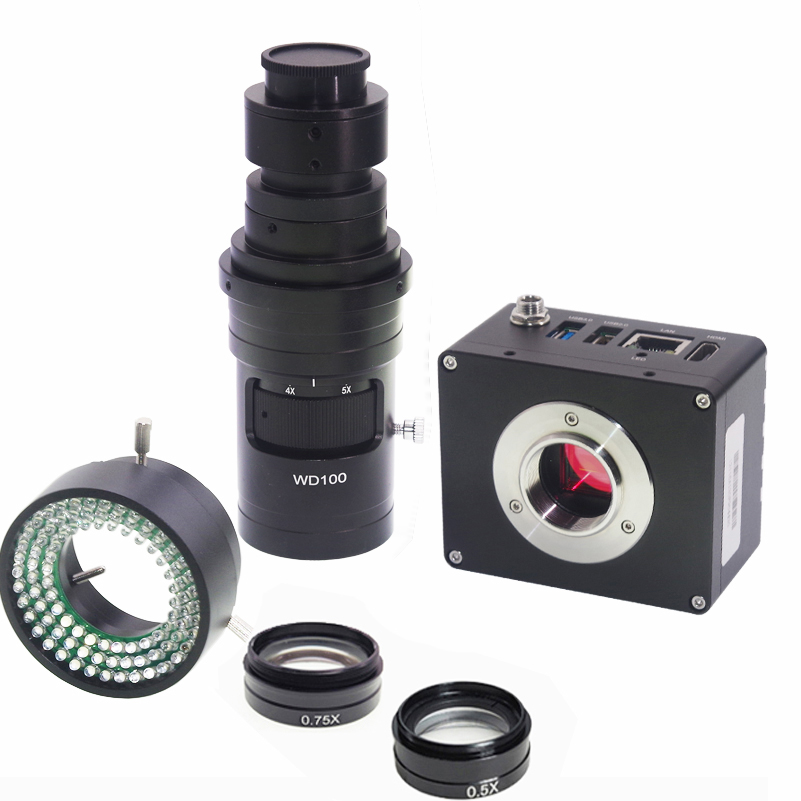

Package including

• 1 x V3 Microscope Camera
• 1 x HDMI Cable
• 1 x USB Mouse
• 1 x Power Adapter
• 1 x USB 3.0 Cable
• 1 x Network cable
• 1 x 5X-160X C mount Lens
• 1 x 96 Bulbs Microscope LED Ring Light
• 1 x 0.5X Auxiliary objective
• 1 x 0.75X Auxiliary objective
