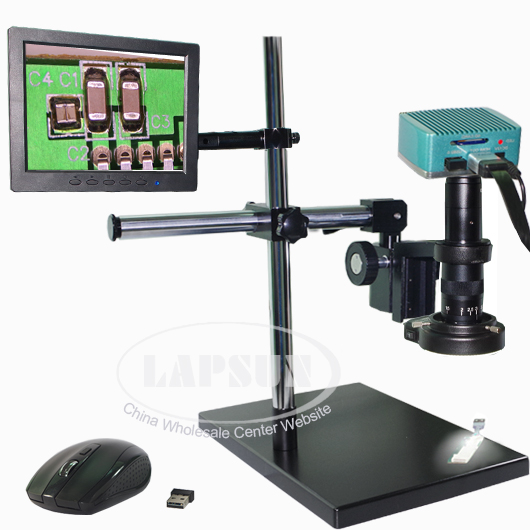

1080P HDMI Microscope USB Industrial Camera + 8" LCD Monitor 180X C-mount Lens +Dual-arm Stereo Table Stand
  • 1080P HDMI Microscope USB Industrial Camera + 8
  • 1080P HDMI Microscope USB Industrial Camera + 8
  • 1080P HDMI Microscope USB Industrial Camera + 8
  • 1080P HDMI Microscope USB Industrial Camera + 8
  • 1080P HDMI Microscope USB Industrial Camera + 8" LCD Monitor 180X C-mount Lens +Dual-arm Stereo Table Stand

1080P HDMI Microscope USB Industrial Camera + 8" LCD Monitor 180X C-mount Lens +Dual-arm Stereo Table Stand

$559.00



  • Description
  • Reviews
  • Shipping & Returns

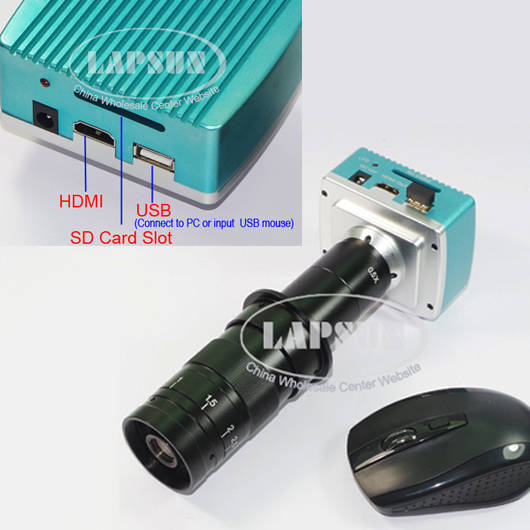

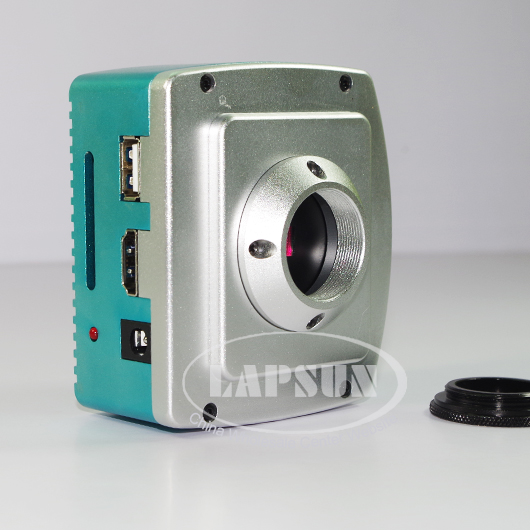

Features:

  • High Quality, High Resolution, Clear Images
  • 1080P HDMI output
  • SD Card Video Recorder
  • 1920*1080 FULL HD Panasonic Image sensor
  • 1/2.86 inch sensor
  • 1920*1080 pixels
  • The pixel size is 2.75*2.75um
  • 60@FPS
  • All metal shell
  • Certificate:CE,FC,RoHS
  • Industry CMOS Camera. It can Show the live image directly on any HDMI monitor or Projector.
  • Supply HDMI output ports.
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.
  • Image sensor 1920*1080 FULL HD Panasonic
  • sensor 1/2.86 inch
  • 1920*1080 pixels
  • The pixel size is 2.75*2.75um
  • 60@FPS
  • White balance automatic
  • Brightness control automatic

Dual-arm Stereo Table Stand Feature:

  • Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm

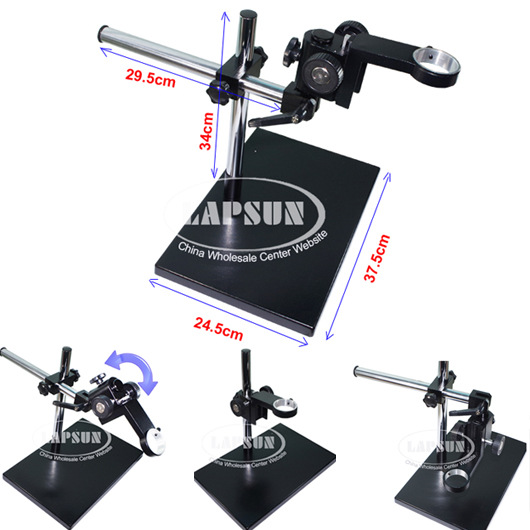

  • Item size: see the 4th picture
  • Weight: 3.3kg

C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

8" TFT LCD Color Monitor Feature:

  • 8 inch (1024*768) high resolution TFT LCD monitor
  • Clear image and colorful display
  • Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
  • Multi video input supported (RCA, VGA, BNC)
  • Support 15-pin VGA input , connect with PC
  • Suitable for CCTV monitor, PC monitor or indoor use
  • Built-in high quality speakers
  • Auto standy function with timer switch and no signal
  • Screen Size : 8"
  • Aspect Ratio : 4 : 3
  • Screen Resolution : 1024 x 768 pixels
  • Screen Brightness : 400 cd/m2
  • Screen Contrast : 400 : 1
  • Viewing Angle : 160° (H) x 160° (V)
  • Response Time : <= 12ms
  • Video Input : AV-in, VGA, BNC
  • Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
  • Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm

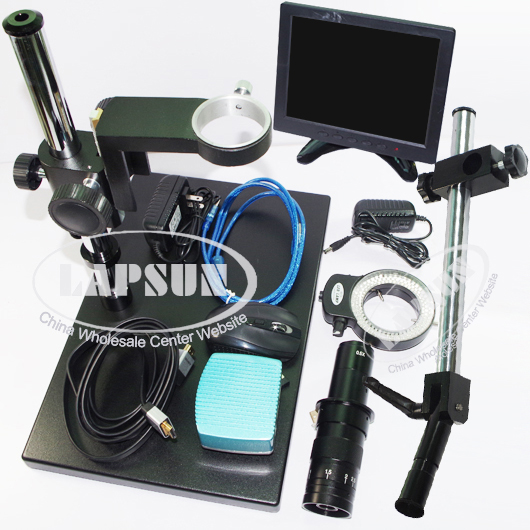

Package Content:

  • 1 x Camera
  • 1 x C-MOUNT Lens
  • 1 x power supply
  • 1 x USB line
  • 1 x Software DISC
  • 1 x Wireless USB Mouse
  • 1 x LED Ring light
  • 1 x Digital Microscope Table Stand
