2023 SONY IMX385 V2 Auto Focus Industry HDMI Video Microscope Camera
Support U Disk Saving Photos and Videos
with Measurement Function






Digital Camera Feature:



  • 1080P FULL HD 60FPS high speed camera
  • UI design menu, easy to control by mouse

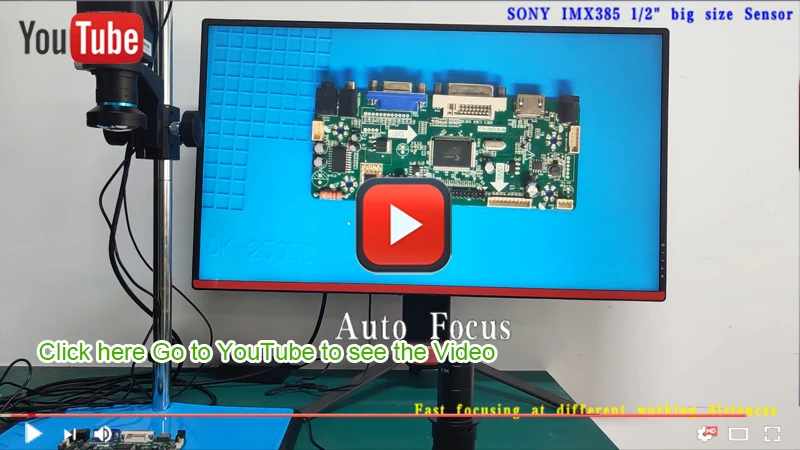

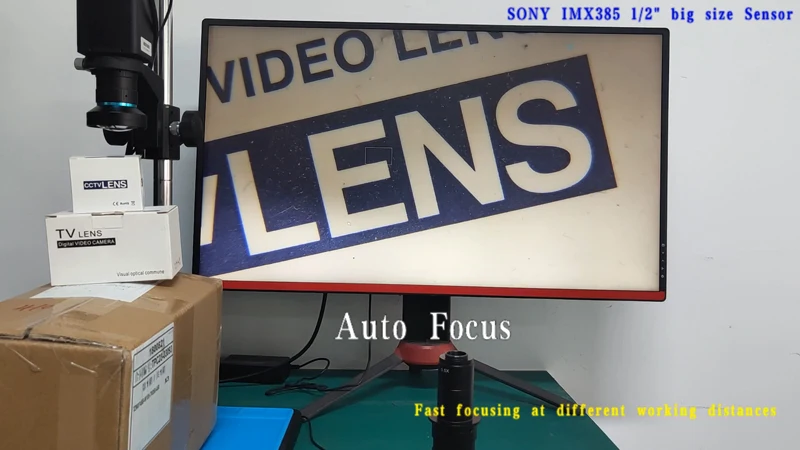

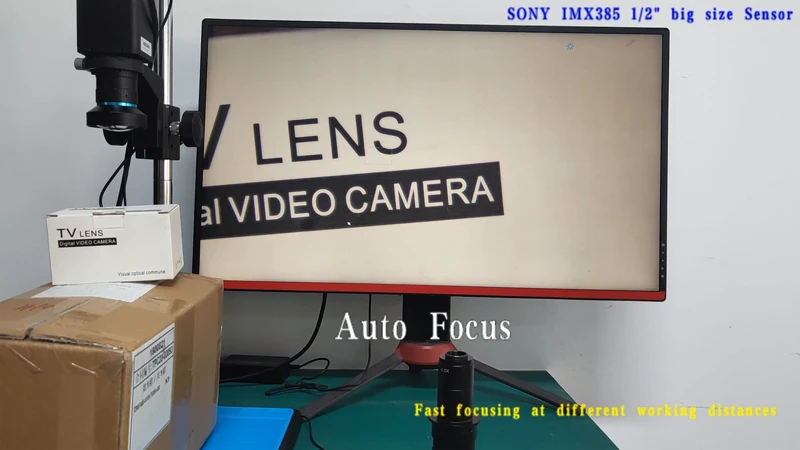

  • Autofocus, when observation Objects of different heights, you do not need adjust the lens's Working distance
  • When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
  • When you adjust the lens's Working distance, you do not need adjust the lens's Magnification, The camera can Autofocus

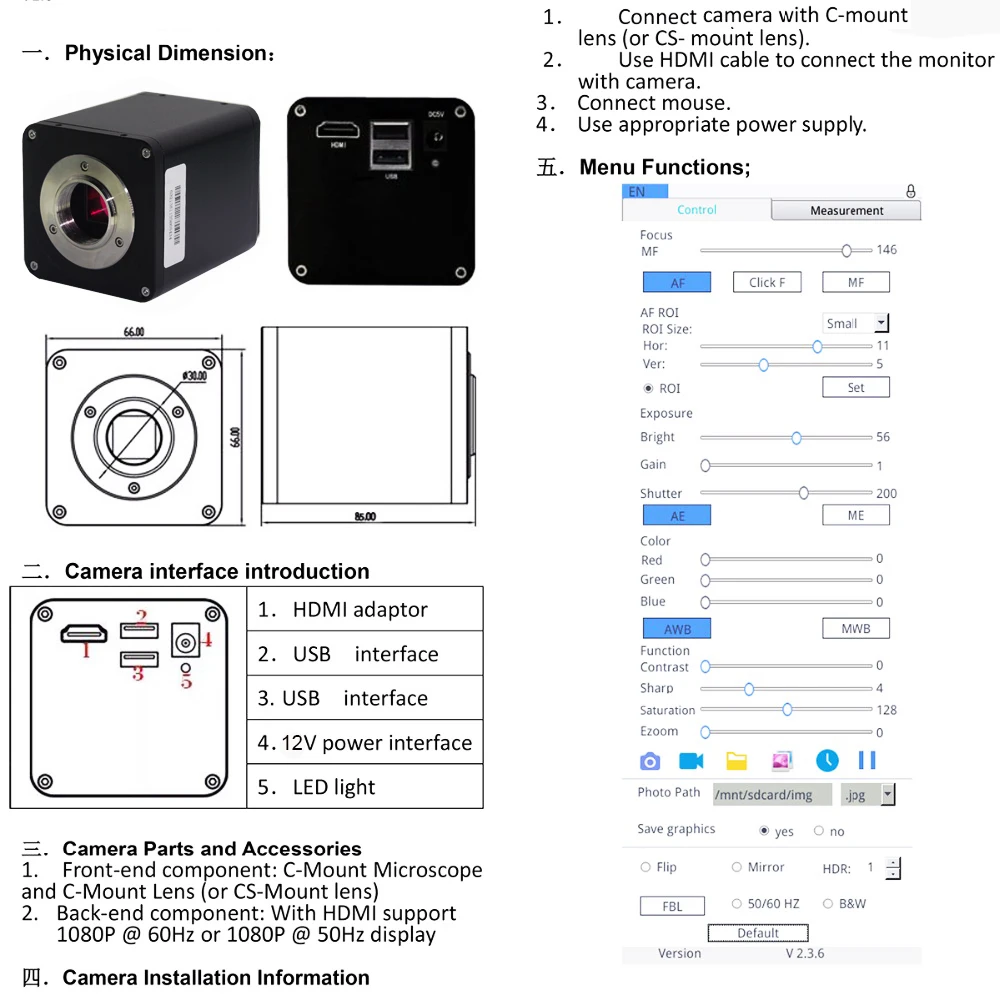

Specification:




  • Sensor: SONY IMX385 V2
  • Image Sensor : Colour CMOS
  • Pixel size : 1/2〞
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC12V

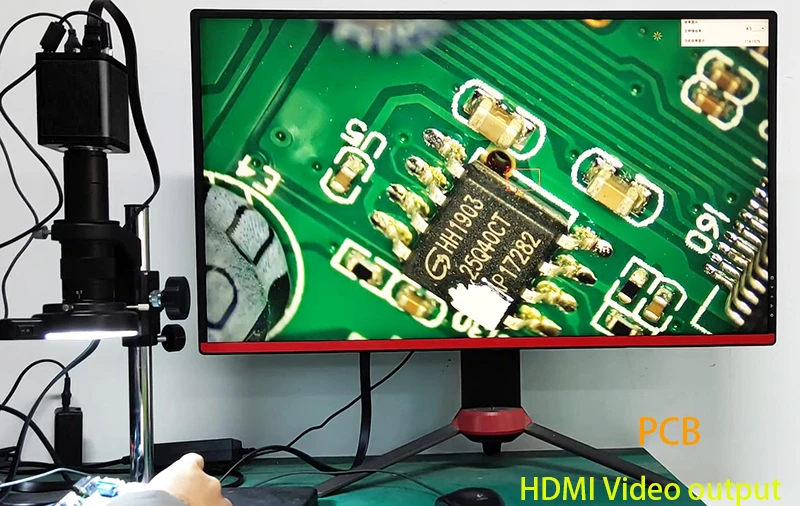

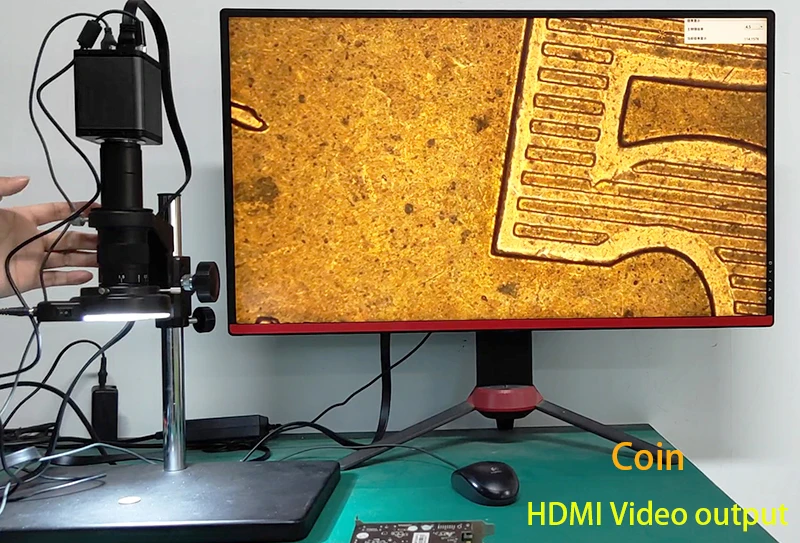

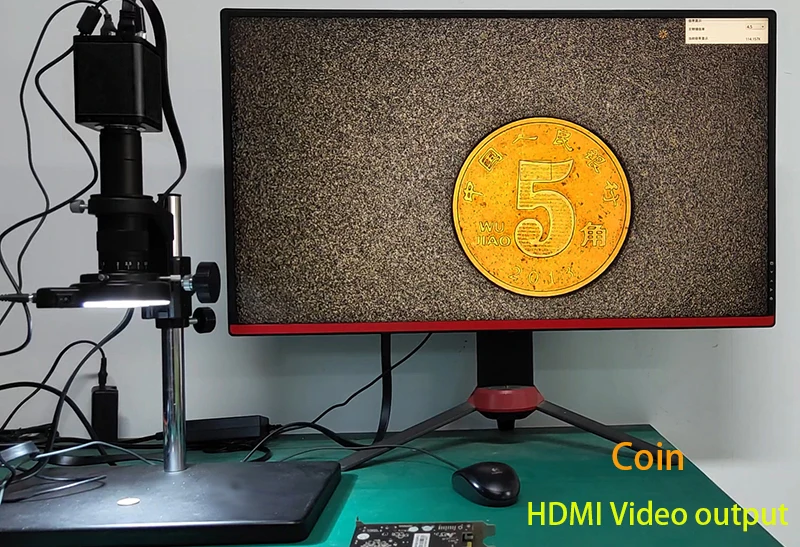

  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Magnification / Zoom : Support
  • Saving function : Support  U disk

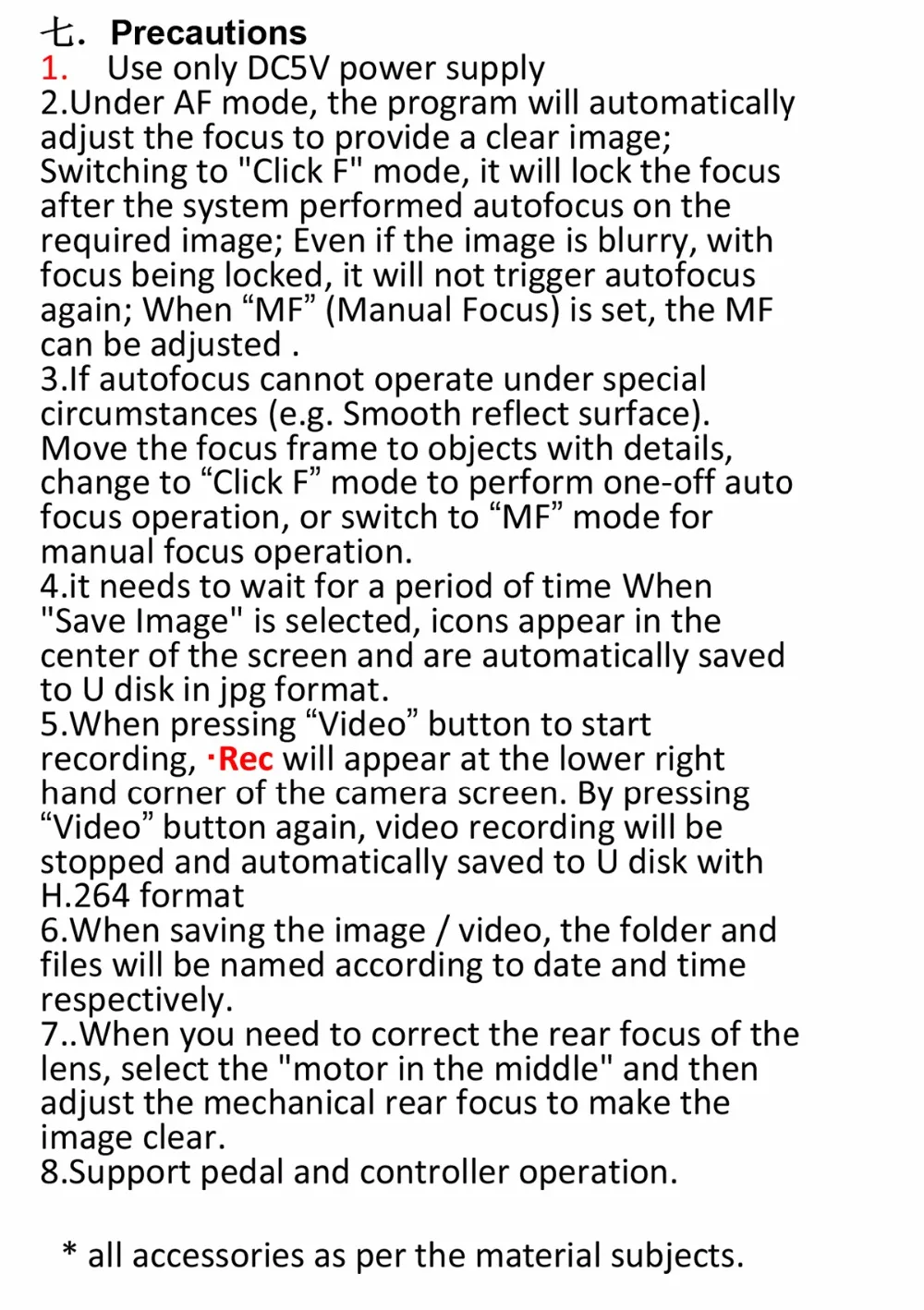

  • HOW TO USING:
  • 1.Before connecting power supply, please connect  mouse to the camera.

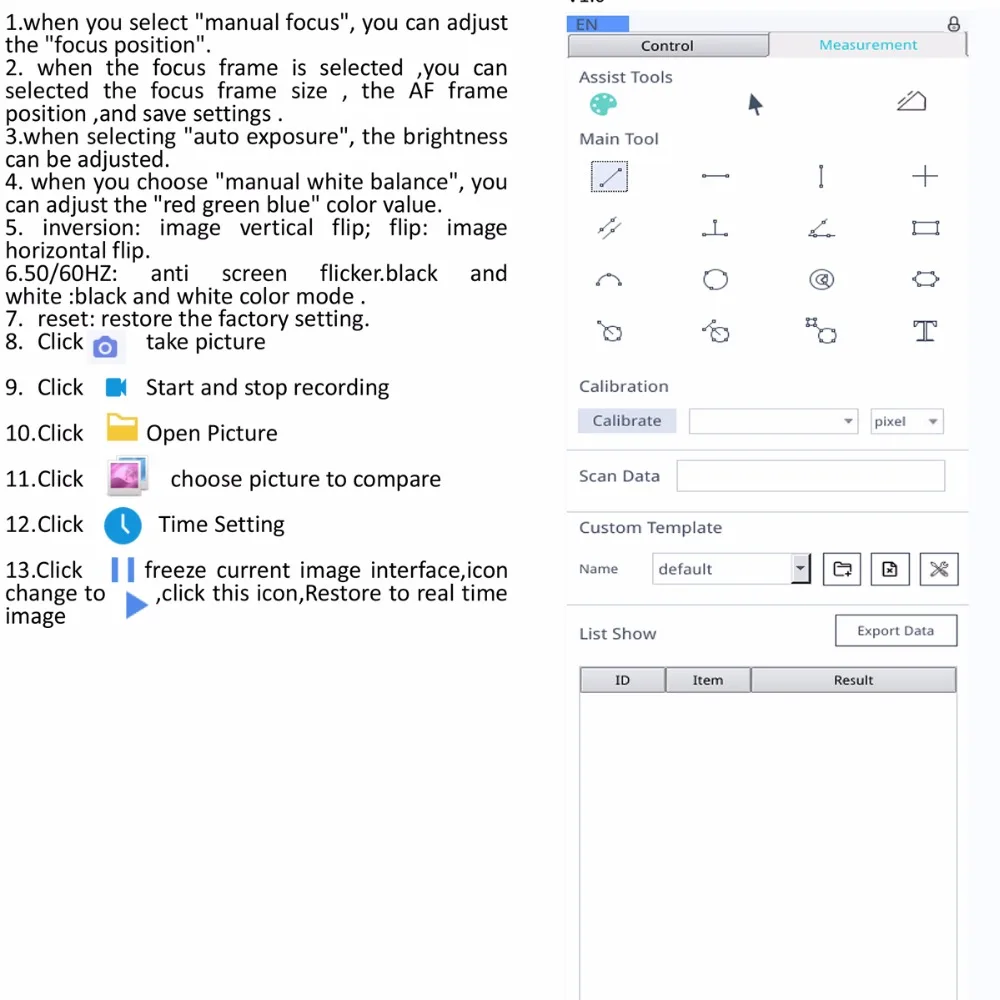

    2.Under AF mode, the program will automatically adjust the focus to provide a clear image; Switching to "Click F" mode, it will lock the focus after the system performed autofocus on the required image; Even if the image is blurry, with focus being locked, it will not trigger autofocus again; When “MF” (Manual Focus) is set, the MF can be adjusted .

    3.If autofocus cannot operate under special circumstances (e.g. Smooth reflect surface).  Move the focus frame to objects with details, change to “Click F” mode to perform one-off auto focus operation, or switch to “MF” mode for manual focus operation.

    4.it needs to wait for a period of time When "Save Image" is selected, icons appear in the center of the screen and are automatically saved to U disk in jpg format.

    5.When pressing “Video” button to start recording, •Rec will appear at the lower right hand corner of the camera screen. By pressing “Video” button again, video recording will be stopped and automatically saved to TF card with H.264 format

    6.When saving the image / video, the folder and files will be named according to date and time respectively.

    7.When you need to correct the rear focus of the lens, select the "motor in the middle" and then adjust the mechanical rear focus to make the image clear.

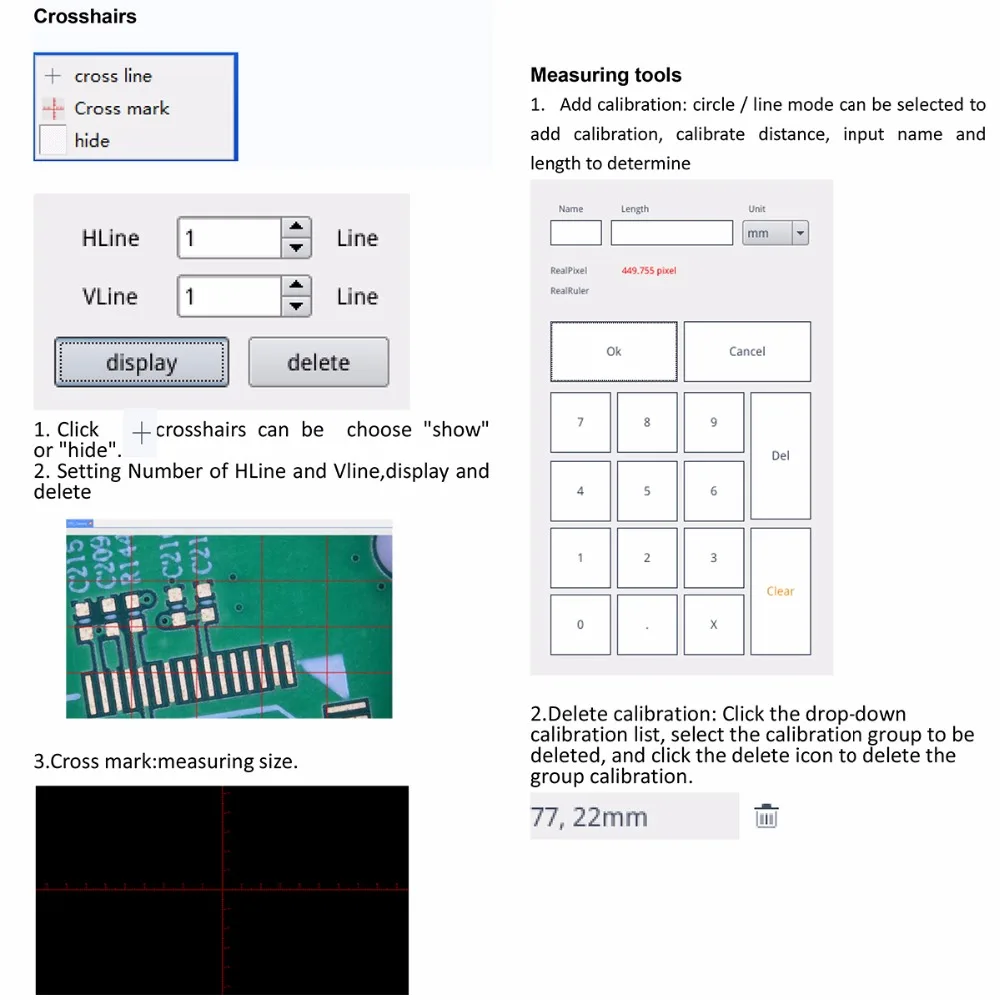

Measurement Function:



  • Labeling functions : Point coordinates, cross lines, text annotations
  • Length measurement: Line length, line length, curve length, parallel line distance, point line distance
  • The center distance : The radius fixed circle, two points setting circle, three points setting circle
  • Geometric measurement : Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles The geometric area: Polygon, square

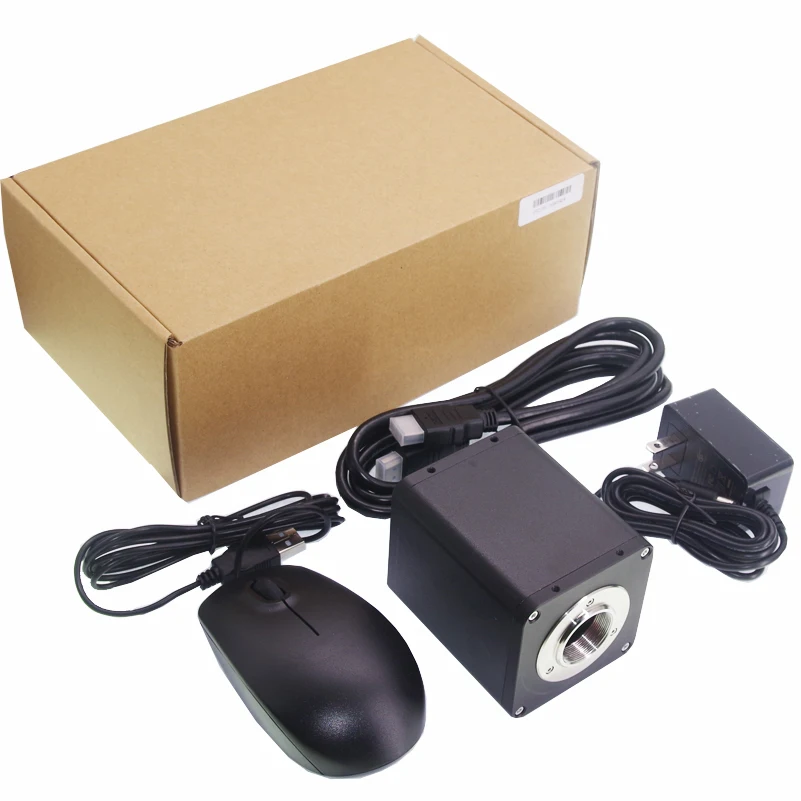

Package including(OPTION):



  • 1 x Microscope Camera
  • 1 x Power supply(AU/EU/US/UK)
  • 1 x HDMI Cable
  • 1 x USB Mouse
