2025 4K SONY IMX383 1/1.1"16MP C-Mount HDMI GE USB WIFI Digital Industry Microscope Camera For Soldering Lab

4K Ultra HD
SONY (IMX383 1/1.1" ,16MP)
HDMI GE port USB output WIFI digital microscope camera
4K HDMI USB microscope camera

The X8CAM4K series is the next-generation live-view imaging-system with 4K resolution

X8CAM4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB or Gigabit Ethernet (GE) for image-capture and video-recording.

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Application:

• Scientific research, digital teaching (teaching, demonstration and academic discussing);
• Digital laboratory, medical research;
• Machine vision (PCB detection, IC quality control);
• Medical treatment (pathological observation);
• Food (microbial colony observation and counting);
• Aviation and military;

Feature:

• 4K HDMI / USB3.0 / GE multiple video output
• Double Cortes ARM 53 CPU processor, high performance and fast response video
• H.265/H.264 codec
• 8G bit DDR4 running smoothly
• 4k/1080P switch adaptively, Preview frame rate 60fps
• Embedded measurement functionsand meausurement objects can be exported to Excel or saved with the image data in layer mode or in burn in mode.
• RisingView application for the PC output via USB3.0 or GE port

16MPA Camera Specification:

• Model: 16MPA
• Sensor: 16MP SONY IMX383
• Sensor size: 1/1.1"(13.06x7.34mm)
• Pixel(μm) : 2.4x2.4 (SONY IMX383)
• Resolution: 5440*3060
• HDMI, USB and GE port (NETWORK) output
• Preview frame rate：
  HDMI: 60fps@3840*2160, 60fps@1920*1080
  USB: 25fps@5440*3060, 45fps@2688*151260fps@1920*1080
  NETWORK: 30fps@3840*2160, 60fps@1920*1080, 60fps@1280*720
• Video Recording :60fps@3840*2160
• Exposure : 0.048~1000ms
• Real time measurement
• Support U disk and SD card storage

Video Output:

• HDMI Interface
• 1. Comply with HDMI2.0 standard;
• 2. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
• GE Interface
• 1. H264 encoded video;
• 2. Bandwidth adjustment in real time;
• 3. unicast/multicast configuration;
• 4. DHCP configuration or manual configuration
• USB3.0 Output
• 1. Camera Working with Computer via USB3.0 cable,
• 2. RisingTech will provide RisingView software for buyer

Camera Control Panel:

Camera Measurement Toolbar:

• The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar

GE port Ethernet output mode :

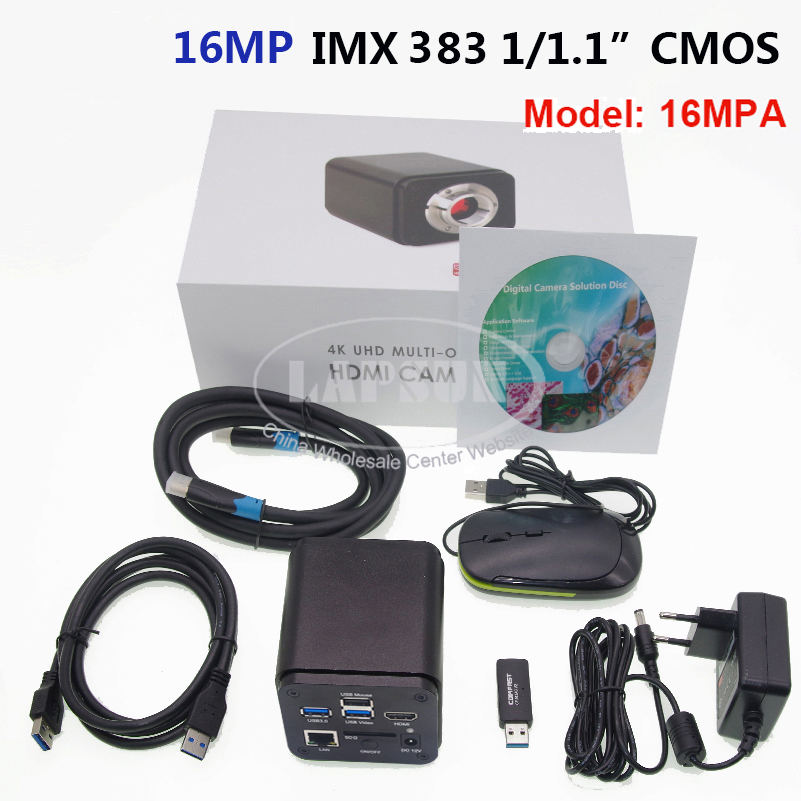

Package including:

• 1 x 4K Camera (OPTION)
• 1 x HDMI cable
• 1 x USB3.0 Cable (USB Video Cable)
• 1 x Mouse
• 1 x WiFi transmitter
• 1 x Power Supply (EU, US and UK plug is available)

--------------------------------------------------------------------------------------------------------------------

• 1. Item will be shipped within 3 days after payment received
• 2. Tax: we are not responsible for the import tax and customs charges at destination country
• 3. Usually we ship the item by standard shipping if the item weight is less than 2KG, but if the item has high value and weight is over 2KG, we will ship by DHL / UPS / FedEx express shipping, usually the shipping time is about 5-10 days to your country(depends on the customs clearance schedule).
• 4. Important! International shipment not under our control, sometimes delayed please contact us let me know. We will check for you. Over 30 days have not arrive after we checked will be replacement or give other solution. Thank you~

• 1. The warranty period is one year
• 2. If you are unhappy with your purchase, please contact us within 30 days of receipt and let us know why.
• 3. We would like to assure the all products can be arrived on time and in good condtion, but some quality problem caused by such as manufacture, material or bad quality under normal use. Defective/ Wrong Items - within the warranty period---please contact with us directly, a picture or video will be better understand the probem, so that we can provide the best suitable solution.
