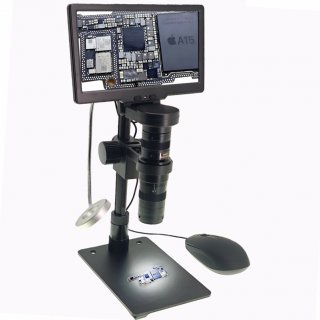

48.0MP HD Industrial Lab Microscope Camera 2K HDMI, 1080P @60FPS HDMI / USB Output , TF Card Video Recorde Zoom 10X-180X C-Mount Lens + Stand

2022 Lastest 48.0MP HD Industrial Lab Microscope Camera 2K HDMI, 1080P @60FPS HDMI / USB Output , TF Card Video Recorde
Zoom 10X-180X C-Mount Lens + Stand

Camera Application:

• Scientific research, digital teaching (teaching, demonstration and academic discussing);
• Digital laboratory, medical research;
• Machine vision (PCB detection, IC quality control);
• Medical treatment (pathological observation);
• Food (microbial colony observation and counting);
• Aviation and military;

Specification:

• Model: Camera with HDMI USB2.0 two output
• Image sensor: 38 megapixel sensor
• Frame rate: 4K @30FPS HDMI output ,2K @30FPS HDMI output , 1080P @60F/S HDMI output , 1080P @30F/S USB output
• Movie size4K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 2K video, you need to use the SDHC class10 TF card.)
• Housing: All metal
• Support:C-Mount lens
• White balance: Auto/manual
• Cross cursor: Support
• TF card interface: Max 32G
• Interface: HDMI / USB output
• Image : 38M 8320x4680
• Language:Chinese/English
• Mirroring: Support
• Frequency:50Hz/60Hz
• Grid line: 8 Horizontal line, 8 Vertical line, Central scale line,Custom colors,Size
• Power supply: 5-12V 1A

10X-180X LENS:

• Working distance: 95mm
• zoom c-mount Lens
• 0.5X C-mount adapter
• zoom ratios: 6.5:1
• Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
• Size: 180mm(L) * 50mm(DIA)
• Weight: 450g

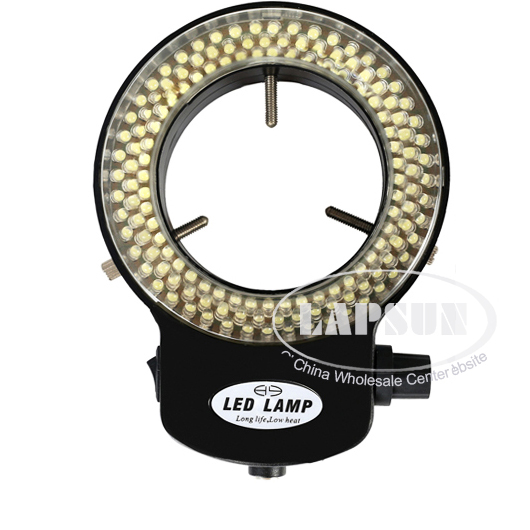

144 LED Ring Light:

• 144 bright white LED bulbs
• 100,000 hours of life
• Intense and focused shadow-free illumination
• The brightness of 0-100%Adjustable,high brightness
• Variable intensity control
• Power input: 100-240V AC, 50-60HZ
• Suit for the dia of the lens: 30mm-63mm

Common Metal Bracket Feature:

• Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
• Steel Gears on Focusing Holder.
• Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
• Weight: 3.3kg

Universal Stand Feature:

• This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
• The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
• Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
• Steel Gears on Focusing Holder.
• Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
• Weight: 4kg

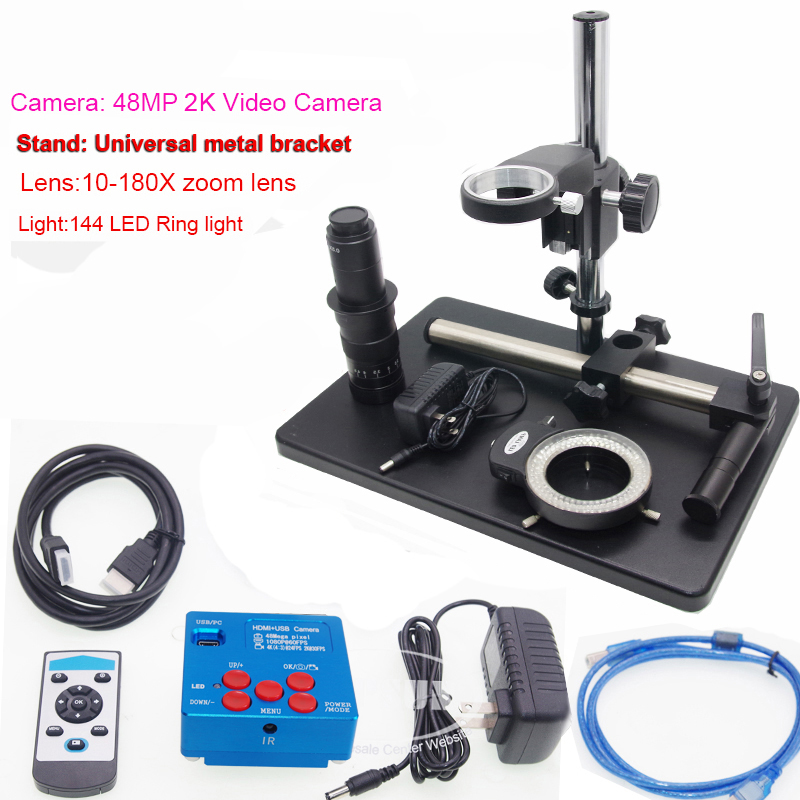

Package including :

• 1 x 48MP Microscope Camera
• 1 x Power Supply
• 1 x IR remoter
• 1 x HDMI Line
• 1 x USB Line
• 1 x 10-180X Lens
• 1 x 144 LED Ring Light
• 1 x Universal Metal Bracket
