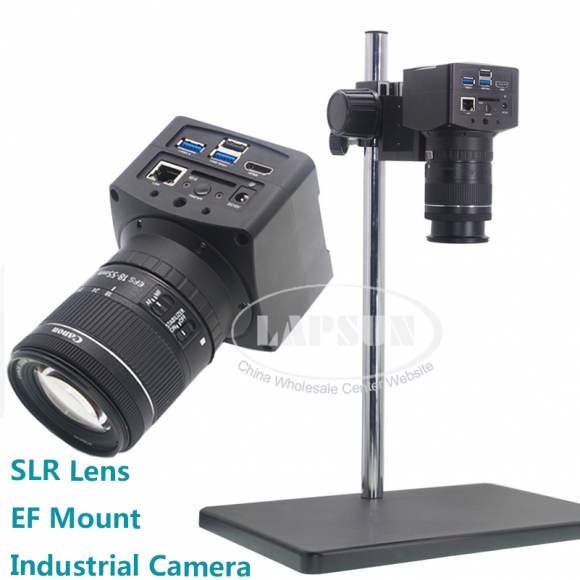

4K 60FPS Sony IMX283 1/1.1" Auto Focus Focal HDMI USB Network WIFI Industry Camera Microscope Set EF-Mount SLR Lens Stand

4K 60FPS Sony IMX283 1/1.1" Auto Focus Focal HDMI USB Network WIFI Industry Camera Microscope Set EF-Mount SLR Lens Stand

$975.00



  • Description
  • Reviews
  • Shipping & Returns





































































Auto Focus (Lens focusing) Support Canon EF Mount
4K Ultra HD SONY IMX283 1/1.1" HDMI USB NETWORK output WIFI digital microscope camera 4K HDMI USB microscope camera






The Camera is a camera designed by Lapsun that includes multiple modes of output (HDMI/WiFi/USB/NETWORK),
The CMOS camera with multiple interfaces, and auto focus. It uses ultra-highperformance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and
subsequent research.


Enhanced with an embedded ARM core, this camera integrates various functions inside. With the help of a USB
mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled.
The camera comes with the built-in Auto Focus system(Lens focusing), which can realize Auto Focus on specific
areas of the sample.


By inserting a WiFi module or connecting to a computer via a USB cable, the user can directly control the camera's
hardware with the software ToupView or ToupLite. The camera can be used for tool field inspection,
microscope observation, etc.


































Camera Application:



  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;
  • Machine vision (PCB detection, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;



Feature:



  • 16MP Sony STARVIS 2 back-illuminated CMOS sensor
  • 4K HDMI/ WiFi / USB multiple video synchronous outputs
  • 4K/1080P auto switching according to monitor resolution
  • Support 4K 30fps / 1080P 30fpslow delay HDMI output mode, with an average delay of 40ms
  • SD card/USB flash drive for captured image and video storage, support local preview and playback
  • Auto Focus (Lens focusing),Support Canon EF Mount Lens
  • Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
  • ToupView/ToupLite software for PC
  • iOS/Android applications for smart phones or tablets

Specification:



  • Sensor(option): SONY IMX283 Sensor, senzor size:1/1.1" ,
  • Pixel(μm) : 2.4x2.4 ,
  • Resolution: 16MP
  • Preview frame rate: 30fps @ 4K under HDMI , 60fps @ 1080P under HDMI , 30fps@3840x2160 (USB,NETWORK)
  • Max recording frame rate: 50fps-60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk and SD card storage
  • HDMI, USB output




















Video Output:







Camera Control Panel:



Package including:

  • 1 x EF Mount 4K Camera Body (SONY IMX283 Sensor)
  • 1 x Metal Stand
  • 1 x Canon EF-S 18-55mm f/4-5.6 IS STM Lens
  • 1 x Extension rod
  • 1 x HDMI cable
  • 1 x USB3.0 Cable (USB Video Cable)
  • 1 x Mouse
  • 1 x WiFi transmitter
  • 1 x 32G U-Disk
  • 1 x Power Supplier (EU, US and UK for choice)
  • 1 x Camera storage box
