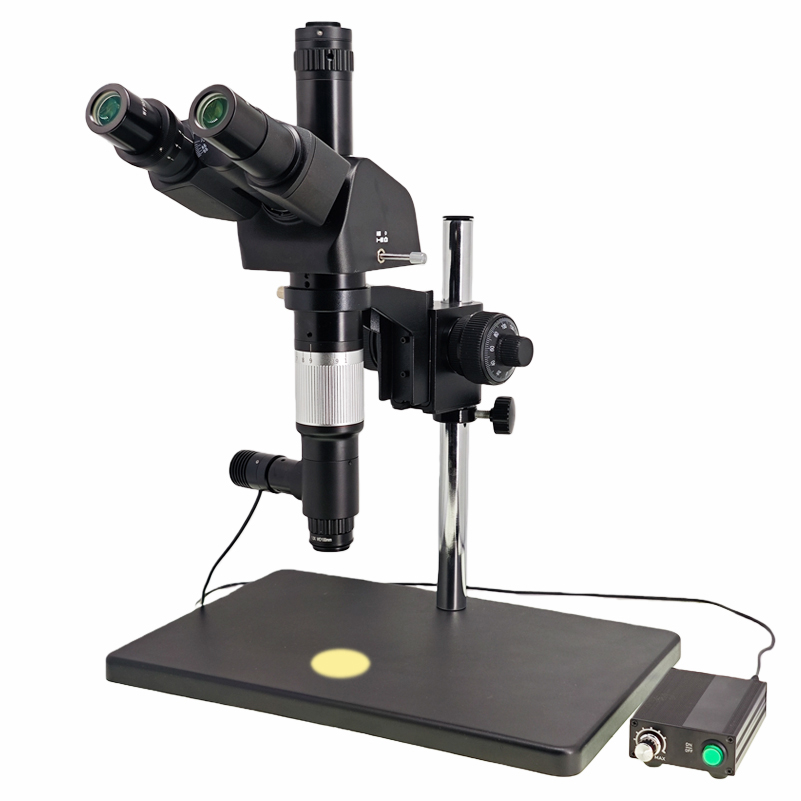

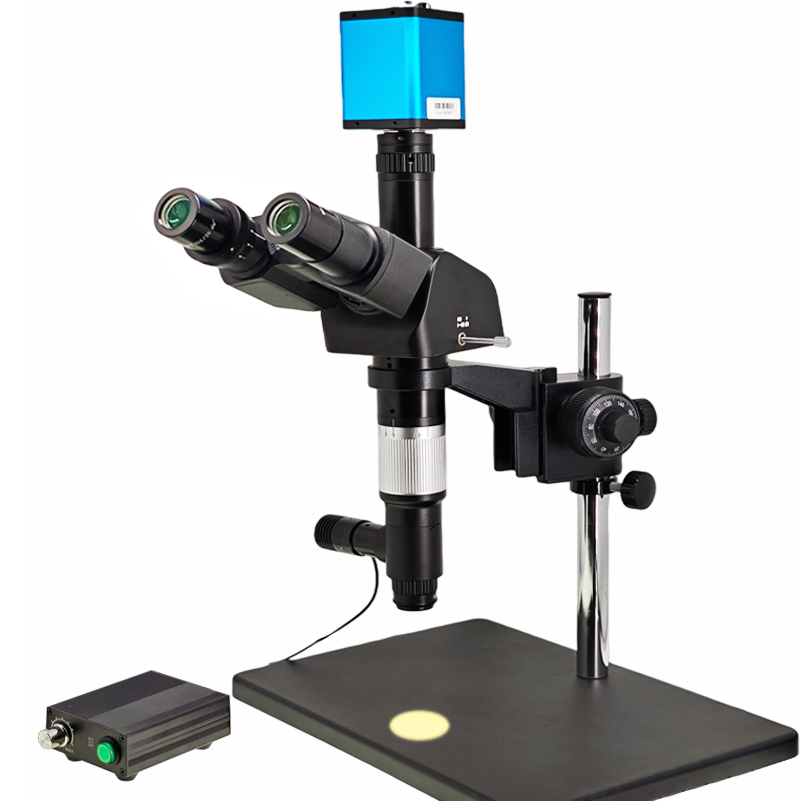

FB0990 Coaxial Dual Top Light Lens with Trinocular Stereo Microscope Set Max 1000X APO 5X 4K HDMI USB LAN Industry Camera

9-90X Trinocular Microscope Dual Top Light Microscope Coaxial Light + Ring Light, Third Camera Port Digital Magnification 50X - 500X

Trinocular Microscope Feature:

• Apochromatic optical system with 4K ultra-high-definition imaging, significantly enhancing the analytical and automated intelligent computing capabilities.
• The Trinocular Microscope 0.9–9.0X main body supports 2/3-inch cameras. Compared with conventional lenses, the field of view at the same magnification is increased by more than 1.5X.
• Modular design allows functional components to be configured as needed, such as coaxial illumination, apochromatic objectives, objective turrets, etc.
• Utilizing apochromatic principles, the lens delivers perfectly sharp images under different wavelength illuminations without refocusing. Widely used in inspection and research fields including food, silicon wafers, chips, electronic components, and biology.
• With an ultra-high 1:10 zoom ratio, the standard 0.9–9.0X main body can be combined with different magnification interfaces and objectives to achieve the extended magnification ranges shown in the table below

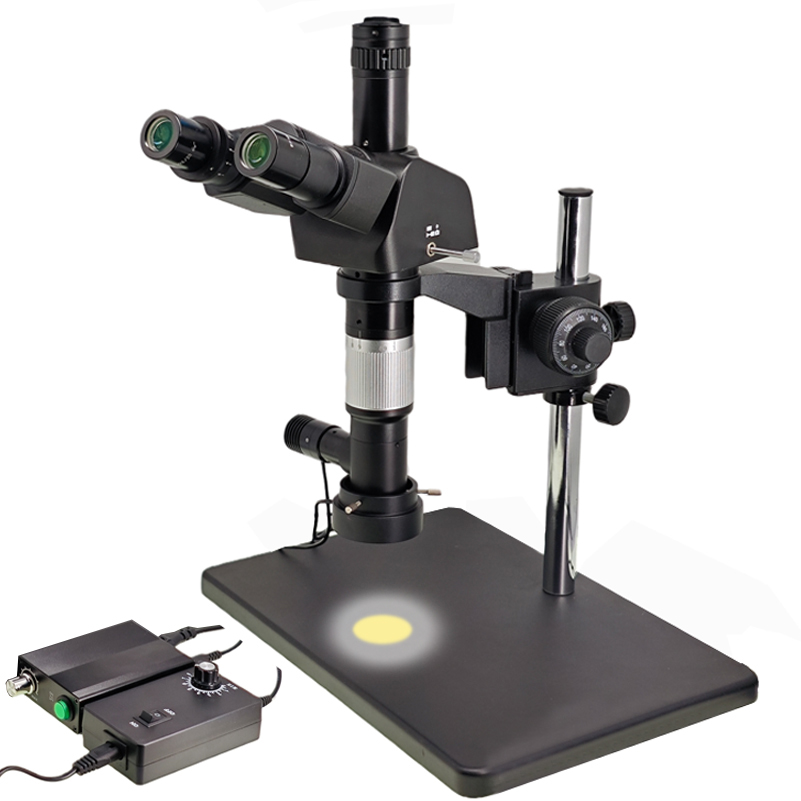

Trinocular Microscope Specification:

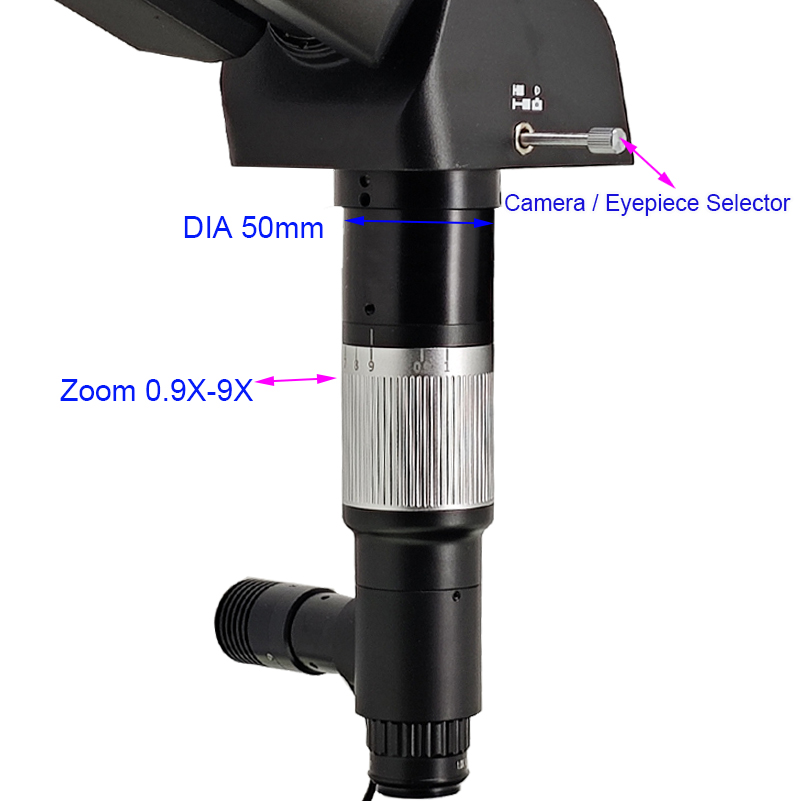

• 0.9–9.0X Zoom Magnification Power Main Body

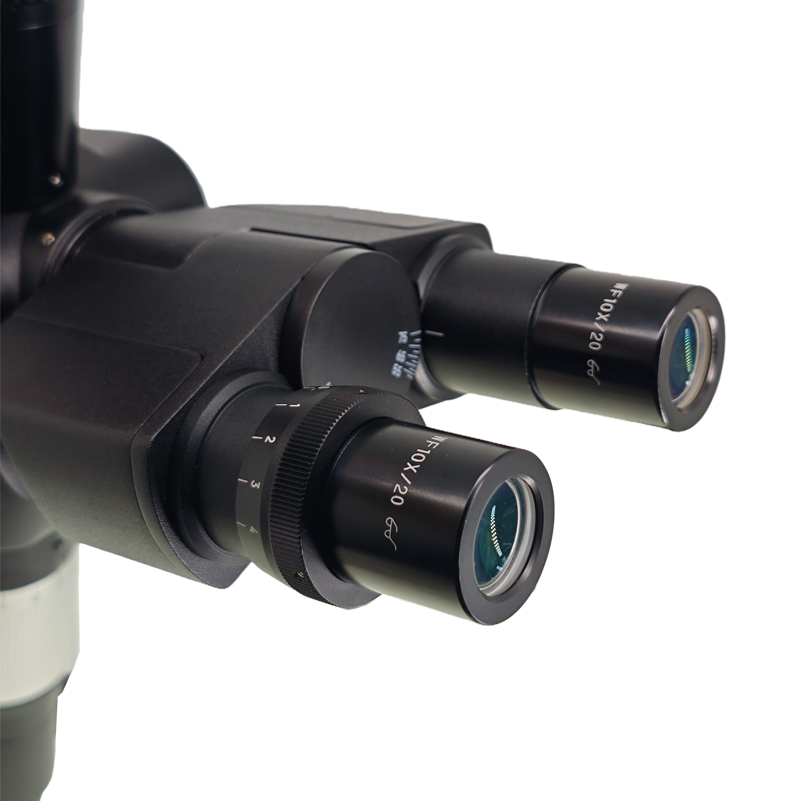

• WF10X/20 Eyepiece
• 4" (100mm) working distance
• 50mm Outer Diameter
• Powerful 5W Coaxial Lighting

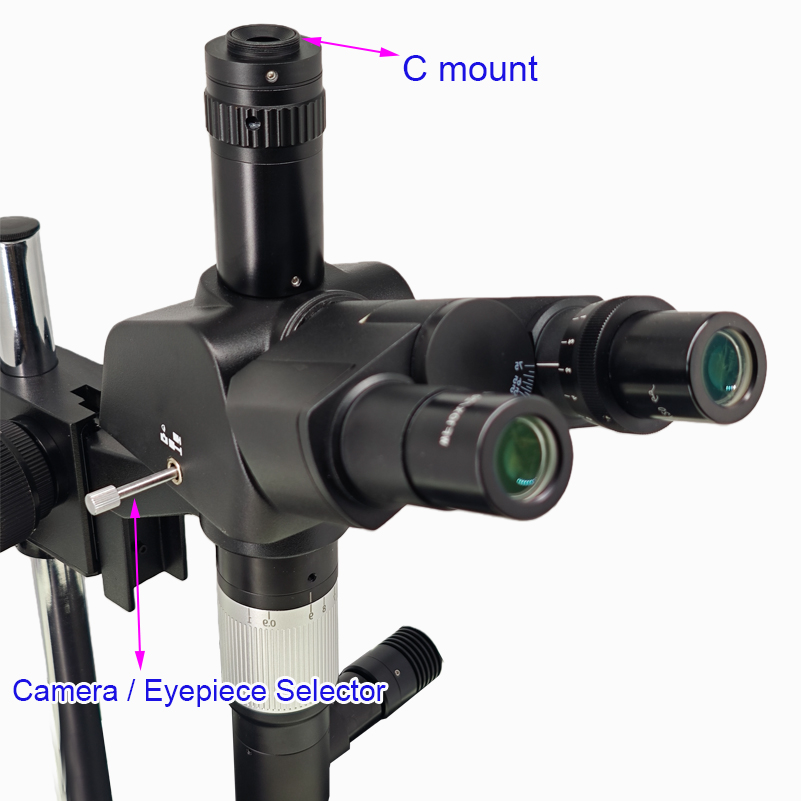

• The trinocular port is equipped with a C-Mount
• Third Camera Port Digital Magnification 50X - 500X (when 1/2-inch CMOS Camera, 21 inch Monitor)
• Main Body Size: 39CM x 23CM x 12CM

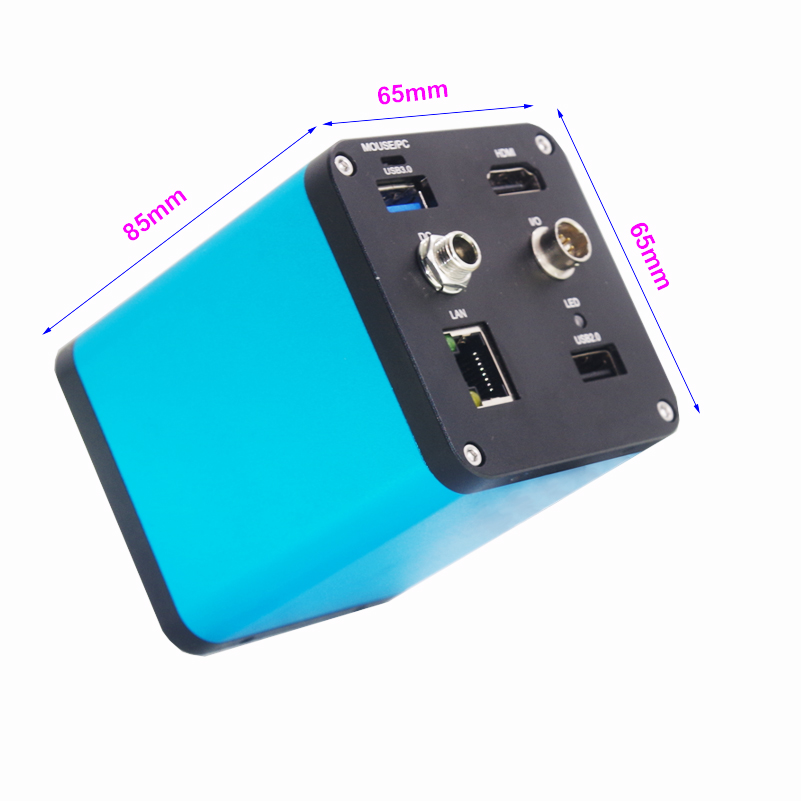

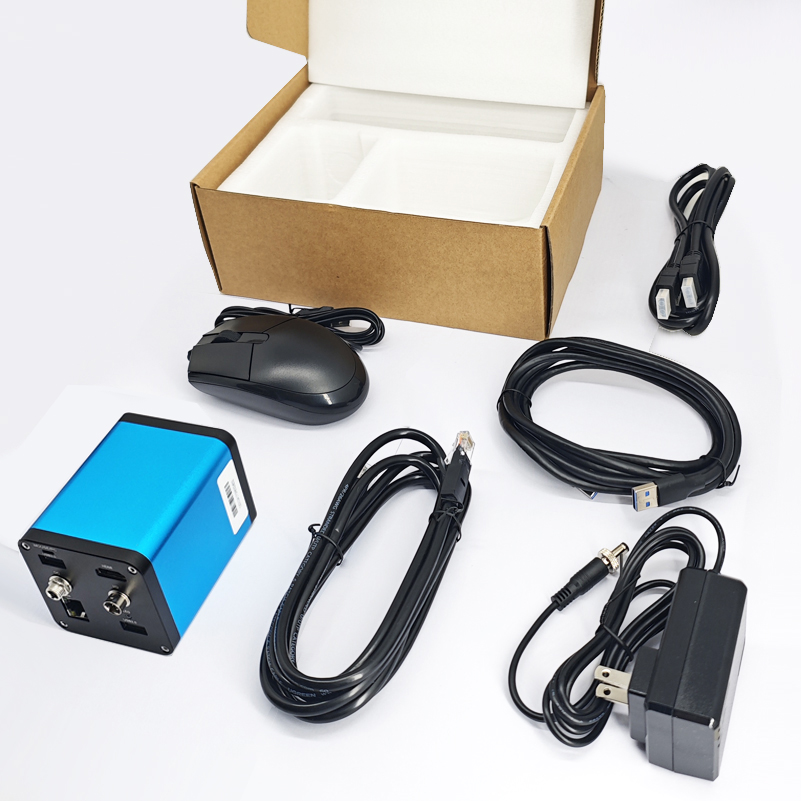

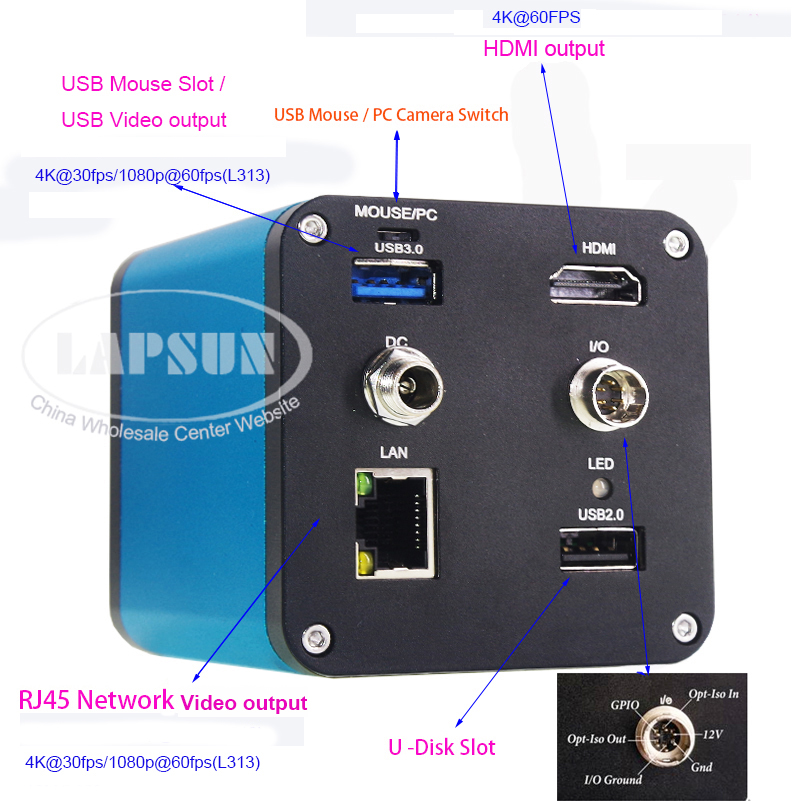

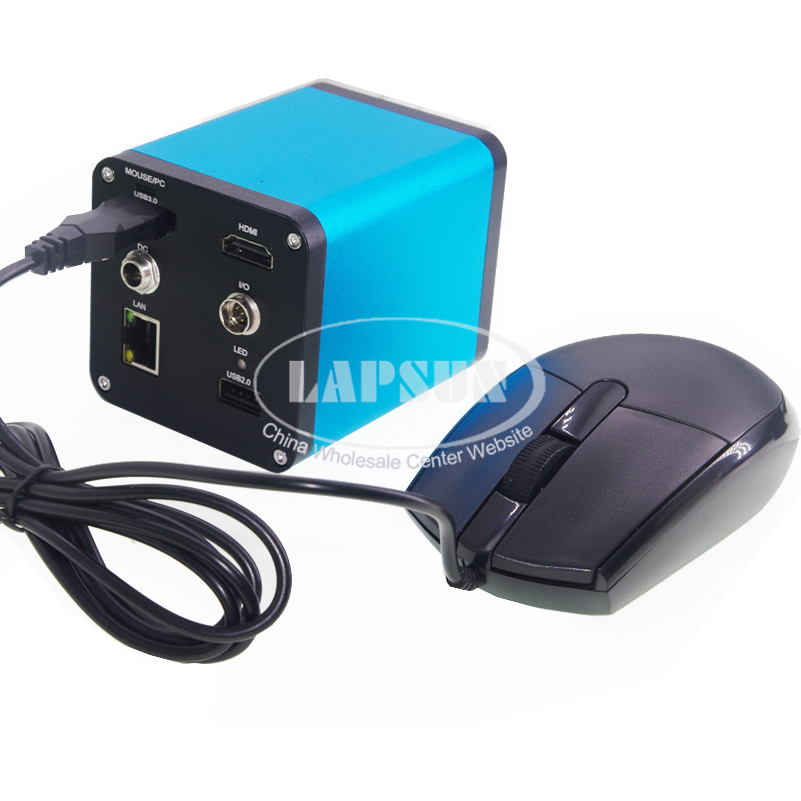

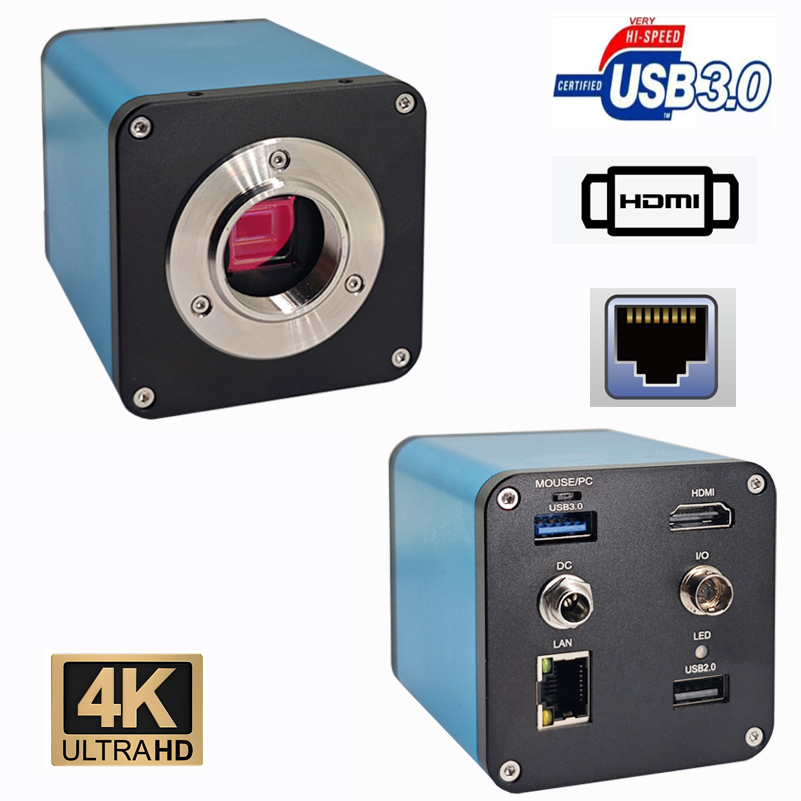

Third Camera Specification (option):

• Model: L313
• SONY 8MP Sensor, senzor size:1/1.8"
• Pixel(μm) : 2.0 x 2.0
• Resolution: 8MP Ultra HD (3840x2160)
• Preview frame rate：
  HDMI: 4K@60fps/1080p@60fps ,
  USB: 4K@30fps/1080p@60fps ,
  LAN: 4K@30fps/1080p@60fps
• Exposure : 0.1ms~1000ms
• Real time measurement
• Lens Interface: C-mount
• Support USB flash drive storage

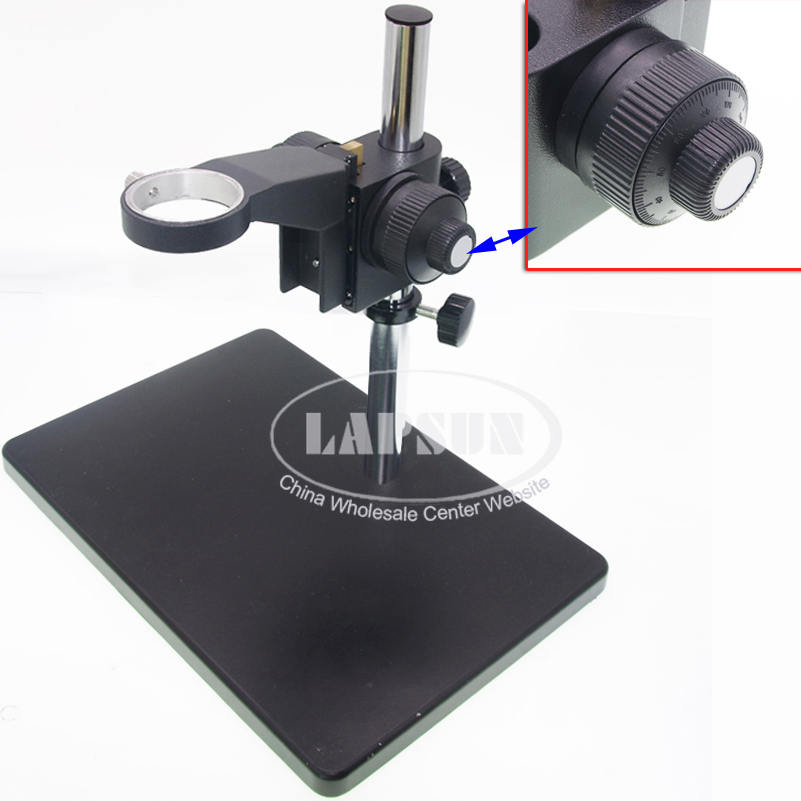

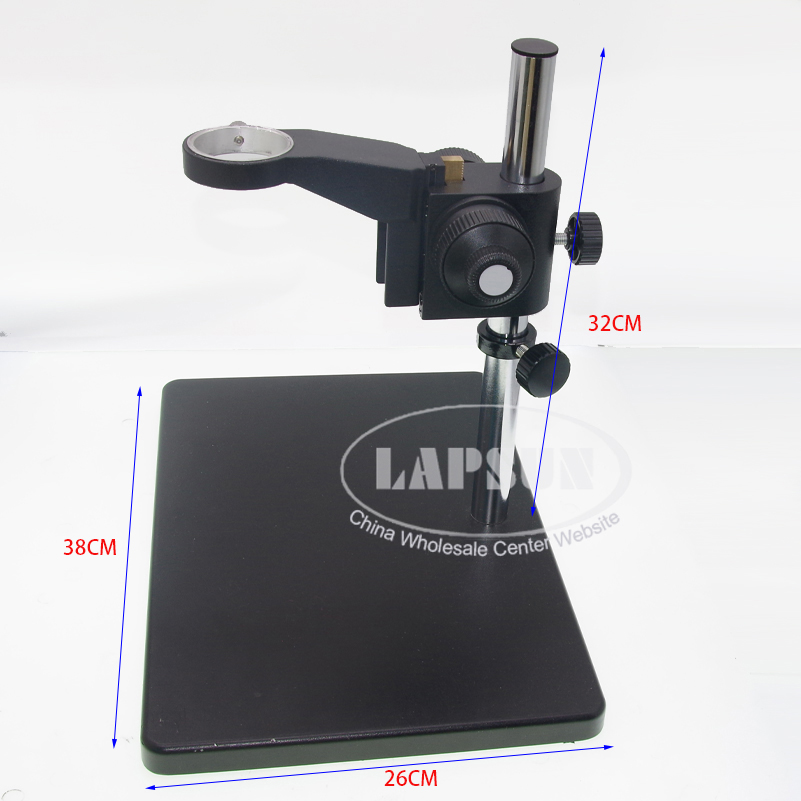

Coarse and Fine Focus Microscope Stand:(OPTION)

• New focus rack with ball bearing

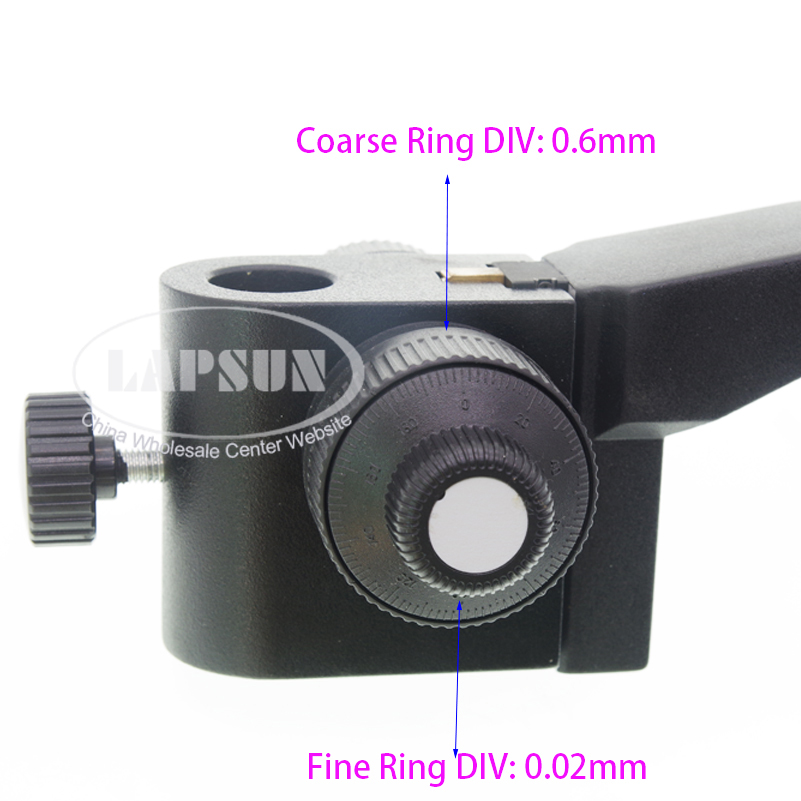

• Coaxial coarse and fine focusing
• Diameter of annular ring holding microscope head: 50mm
• Diameter of opening for stand post (arbor): 25 mm
• One scale of fine focusing: 0.002 mm
• Rotating 360 degree of coarse: 37.7 mm
• Suit Microscope: zoom high power digital microscope
• Weight: 3kg

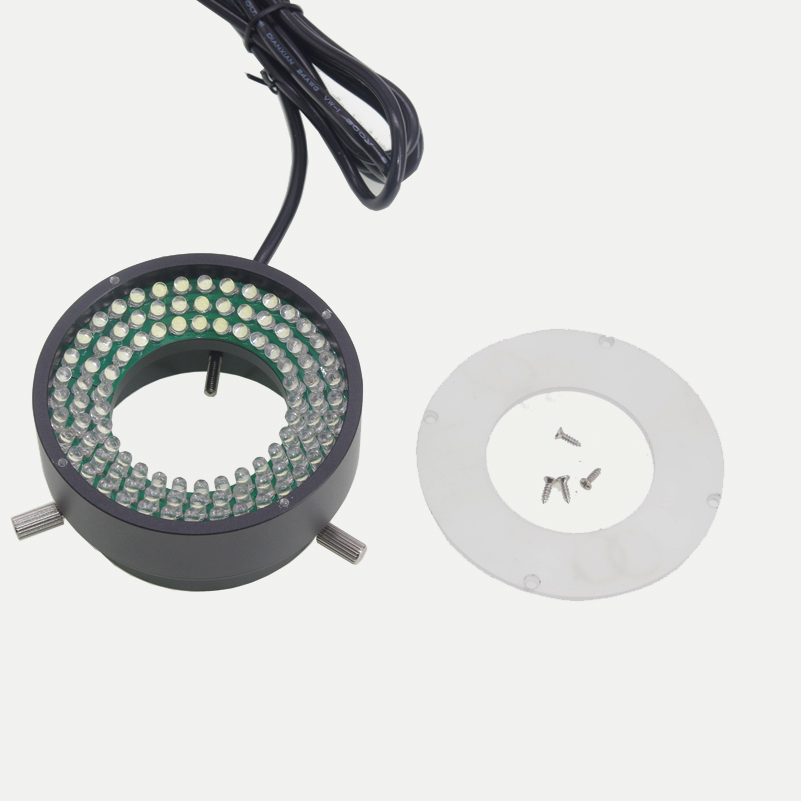

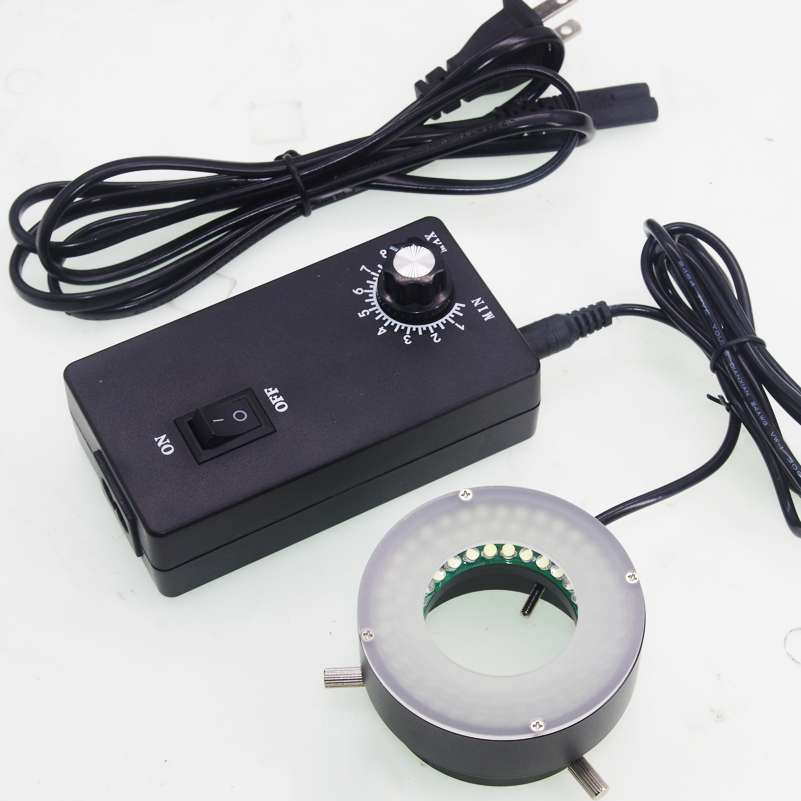

LED Ring Light (OPTION):

• Buit-in diffuse reflective plate
• 96 bright LED bulbs
• 100,000 hours of life
• Intense and focused shadow-free illumination
• The brightness of 0-100% Adjustable,high brightness
• Aluminum alloy shell, strong and durable, easy to dissipate heat
• Power input: 90-240V, 50-60HZ
• Suit for the dia of the lens: 20mm-50mm
• Color of LED (option) : White (6500K) / Red / Yellow / Blue / Green / Purple (Note: the color is not Adjustable, only brightness is Adjustable)
• Working Distance : 30mm to 300 mm
• Quantity Of LED : 96
• Power: <=10W

Package including:

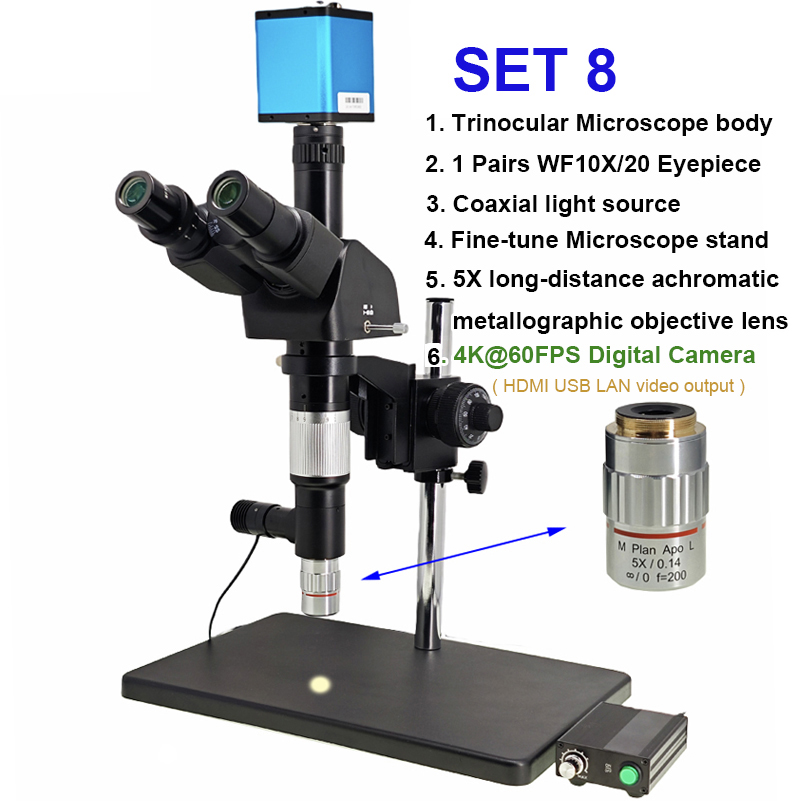

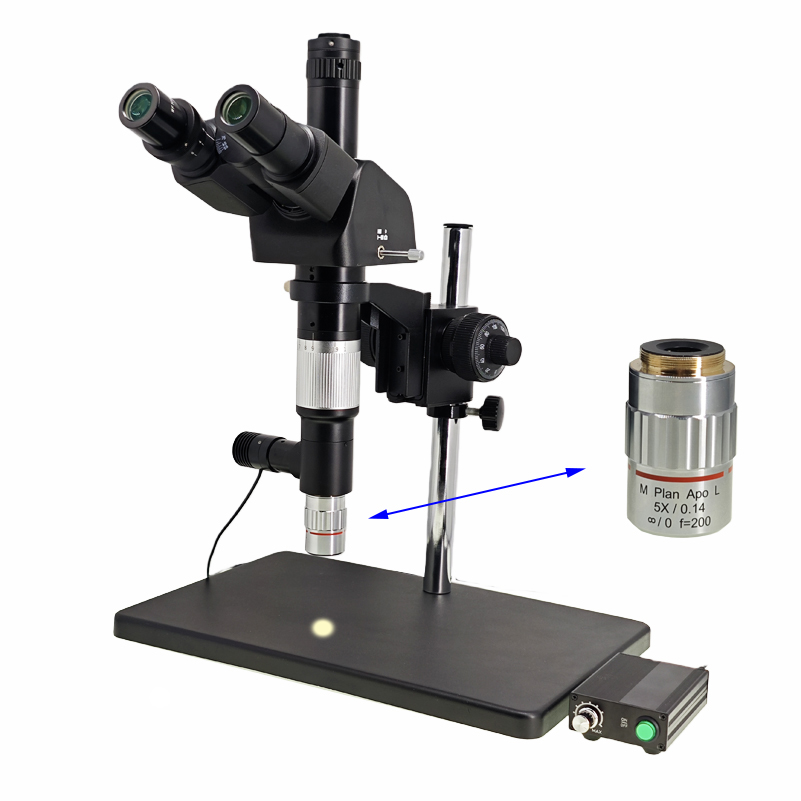

• 1 x 9-90X Trinocular Microscope Dual Top Light Microscope + 5X APO Lens + 96 LED Ring Light + Fine adjustment stand + 4K HDMI USB LAN Industry Camera
