The XCAM4K series is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.
XCAM4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB or Gigabit Ethernet (GE) for image-capture and video-recording.
Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Camera Feature:
- 4K HDMI / GE multiple video output
- Double Cortes ARM 53 CPU processor, high performance and fast response video
- H.265/H.264 codec
- 8G bit DDR4 running smoothly
- 4k/1080P switch adaptively, Preview frame rate 60fps, max recording frame rate: 60fps
- 30fps for USB and GE port output
- Embedded measurement functionsand meausurement objects can be exported to Excel or saved with the image data in layer mode or in burn in mode.
- RisingView application for the PC output via USB3.0 or GE port
Specification:
- Sensor(option): SONY imx334 Sensor, senzor size:1/1.8" , SONY imx485 Sensor, senzor size:1/1.2"
- Pixel(μm) : 2.0x2.0 (SONY imx334) , 2.9x2.9 (SONY imx485)
- Resolution: 4K Ultra HD (8mp 3840x2160)
- Preview frame rate： 60fps @ 4K under HDMI , 30fps@3840x2160 (USB,GE)
- Max recording frame rate: 50fps-60fps under HDMI
- Exposure : 0.1ms~1000ms
- Real time measurement
- Support U disk and SD card storage
- HDMI, USB and GE port (Ethernet) output
Video Output:
- HDMI Interface
- 1. Comply with HDMI2.0 standard;
- 2. Max frame rate 60fps@4K or 60fps@1080P;
- 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
- GE Interface
- 1. Max frame rate 30fps@ 4K resolution
- 2. H264 encoded video;
- 3. Bandwidth adjustment in real time;
- 4. unicast/multicast configuration;
- 5. DHCP configuration or manual configuration
- USB3.0 Output
- 1. Max frame rate 30fps@4K Resolution
- 2. Camera Working with Computer via USB3.0 cable,
- 3. RisingTech will provide RisingView software for buyer
|
Spectral Range 380-650nm (with IR-filter)
|
Other Specification for HDMI Output
|
| UI Operation |
With USB Mouse |
| Image Capture |
8M (3840*2160) JPEG Image in SD Card or USB Flash Disk |
| Video Record |
Video Format:8M(3840*2160) H264 Encoded MP4 Format |
| Video Recording Frame Rate:50~60FPS(related with the SD card speed class and video resolution) |
| Camera Control Panel |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar |
Including Zoom, Mirror, Comparison, Freeze, |
|
Cross, Browser Function
|
|
Other Specification for USB Output
|
Resolution
White Balance
|
8M (3840*2160) frame rate 30fps
Auto/Manual/ROI White Balance
|
| Color Technique |
Ultra-Fine Color Engine (USB) |
| Capture/Control API |
Standard network API for Windows/Linux/Mac(USB) |
| Recording System |
Still Picture or Video
|
Other Specification for GE Output
|
| White Balance |
Auto/Manual/ROI White Balance |
| Color Technique |
Ultra-Fine Color Engine (USB) |
| Capture/Control API |
Standard network API for Windows/Linux/Mac(USB) |
| Recording System |
Still Picture or Video
|
| Software Environment (for GE port Connection) |
| Operating System |
Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) |
| OSx(Mac OS X) |
| Linux |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More |
| Ethernet Port: RJ45 Ethernet Port |
| Display: 19” or Larger |
|
CD-ROM
|
| Operating Environment |
| Operating Temperature(in Centidegree) |
-10~ 50 |
| Storage Temperature(in Centidegree) |
-20~ 60 |
| Operating Humidity |
30~80%RH |
| Storage Humidity |
10~60%RH |
| Power Supply |
DC 12V/2A Adaptor |
Camera Control Panel:
Camera Measurement Toolbar:
- The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar
GE port Ethernet output mode :
LENS Feature:
- Shadow-free coaxial light
- C-mount lens
- Sharp images
- 1.75X-45X Optical multiplier zoom objective ( about 50 - 4000X on the display)
Specification:
- Zoom microscope objective: 1.75X-45X
- Mount: C-mount for PC or TV camera connection (camera sold separately)
- Working distance: 10-15mm
- Field of view: 3mm-0.1mm
- Illumination: coaxial light
- Light Power input: 110 - 240V, 50 - 60HZ, auto switching
- Pillar: 320mm long
PLAN Achromatic Objective Lens:
- Type: Microscope achromatic Objective lens
- Magnification: 5X 10X 20X
- Mounting size :20.2mm
- Standard RMS thread
- Material: Precision Copper core
Metal Stand:
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Coaxial coarse and fine focusing
- One scale of fine focusing: 0.02 mm
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
- Weight: 3kg

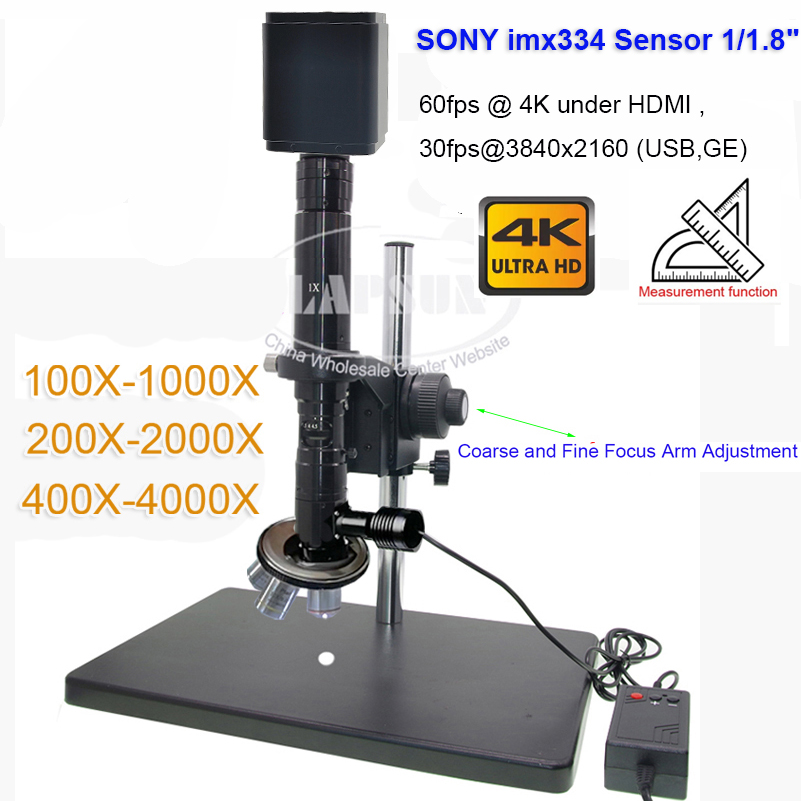

Package including:
- 1 x 50X-4000X Coaxial C-mount Lens
- 1 x Coaxial Light
- 1 x Metal Stand
- 1 x 4K HDMI USB WIFI Digital Camera
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 100V-240V power supply (EU / UK / AU Adapter for free)
|
