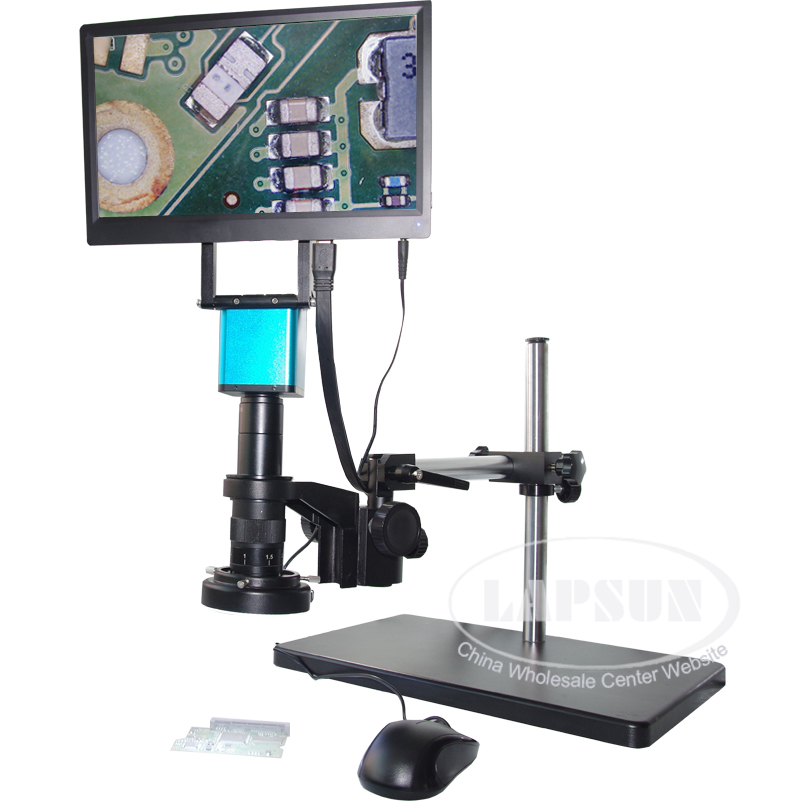

1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6" Monitor
  • 1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6
  • 1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6
  • 1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6
  • 1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6
  • 1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6" Monitor

1080P 60FPS HDMI 180X Lens Digital Microscope Camera Sony IMX290 (NOT AUTO)+ 11.6" Monitor

$559.00



  • Description
  • Reviews
  • Shipping & Returns
1080P@60FPS HDMI Industrial
180X Zoom C-mount Digital Microscope Camera
+ 11.6" FHD 1920 * 1080 IPS HDMI Color Monitor Screen LCD
+ with Dual Arm System Stand


Features:

  • High Quality, High Resolution, Clear Images
  • 1080P FULL HD 60FPS high speed camera
  • SONY SENSOR IMX290 Colour CMOS
  • UI design menu, easy to control by mouse
  • TF Card Video Recorder
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.

Specification:

  • Image Sensor : Colour CMOS
  • Pixel size : 1/2.8〞
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type

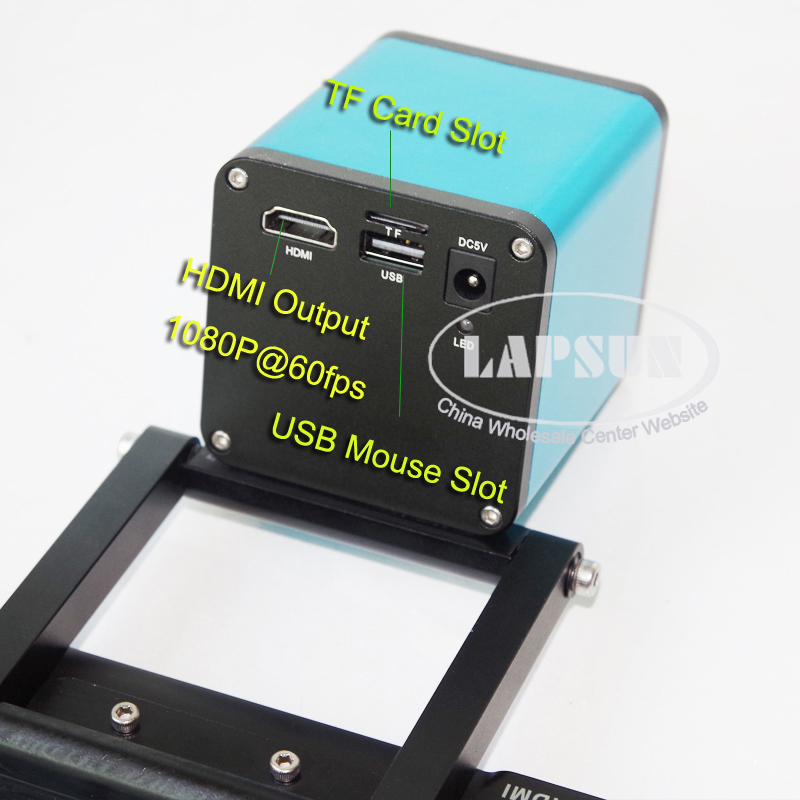

  • Power DC : DC5V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Magnification / Zoom : Support
  • Saving function : Support TF card

LCD Color Monitor Specification:

  • Screen Size : 11.6"
  • Screen Resolution : 1920 x 1080 pixels
  • Screen Brightness : 400 cd/m2
  • Screen Contrast : 1000 : 1
  • Viewing Angle : 178° (H) x 178° (V)
  • Video Input : HDMI (support 720P & 1080P), AV-in, VGA, BNC
  • Multicolor model: PAL , NTSC
  • Refurbish ratio: 60-75Hz
  • Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA

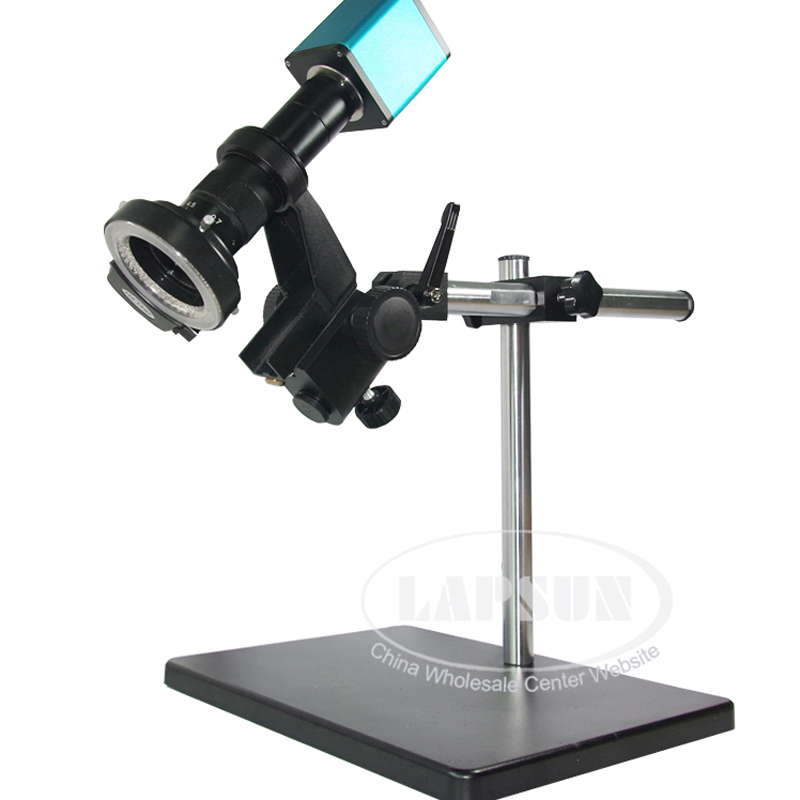

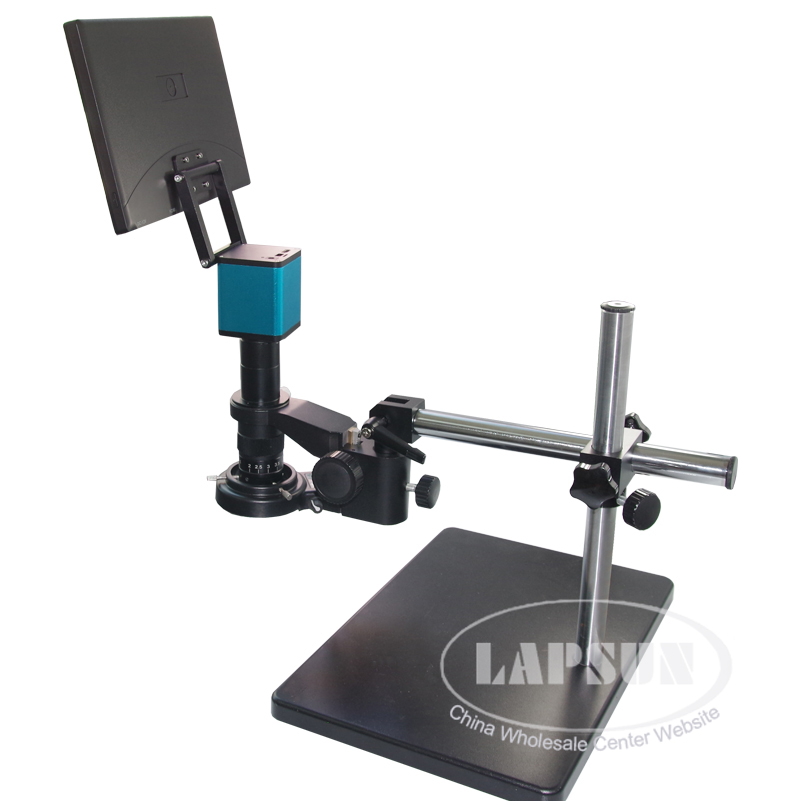

Dual Arm System Stand:

  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
  • Item size: see the 4th picture
  • Weight: 3.5kg

C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the 21inch display)
  • Visual field: 2.3mm-15mm
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

Package Content:

  • 1 x Camera Body with 11.6" IPS LCD Monitor
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x Stereo Table Stand
  • 1 x C-MOUNT Lens
  • 1 x 144 Bulbs Microscope LED Ring Light
  • 1 x 100V-240V Camera power supply (US / EU / UK / AU )
  • 1 x 100V-240V LCD power supply (US / EU / UK / AU )
  • 1 x 100V-240V LCD power supply (US / EU / UK / AU )
