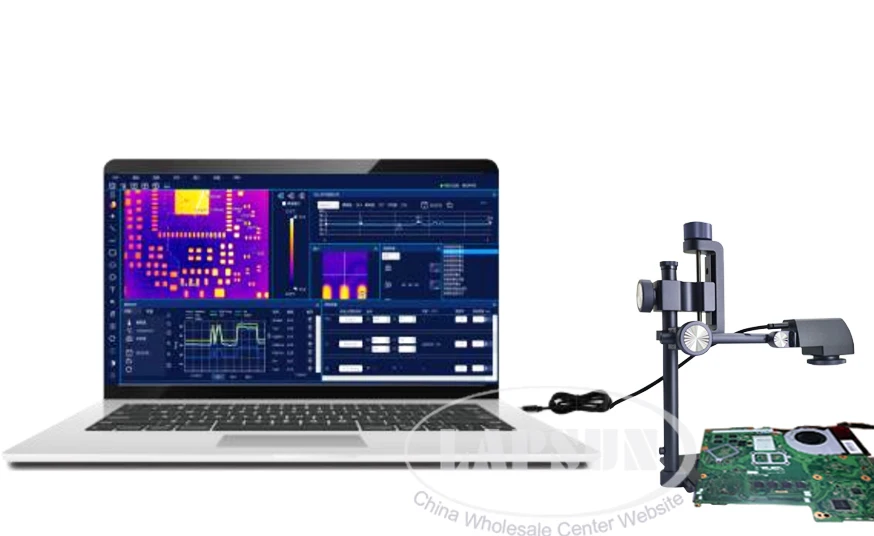

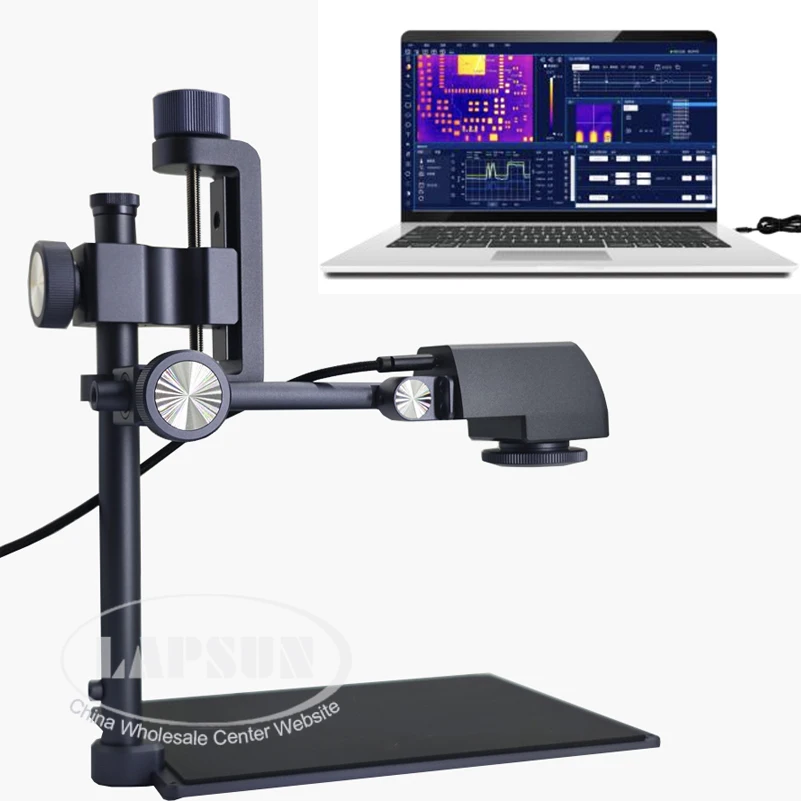

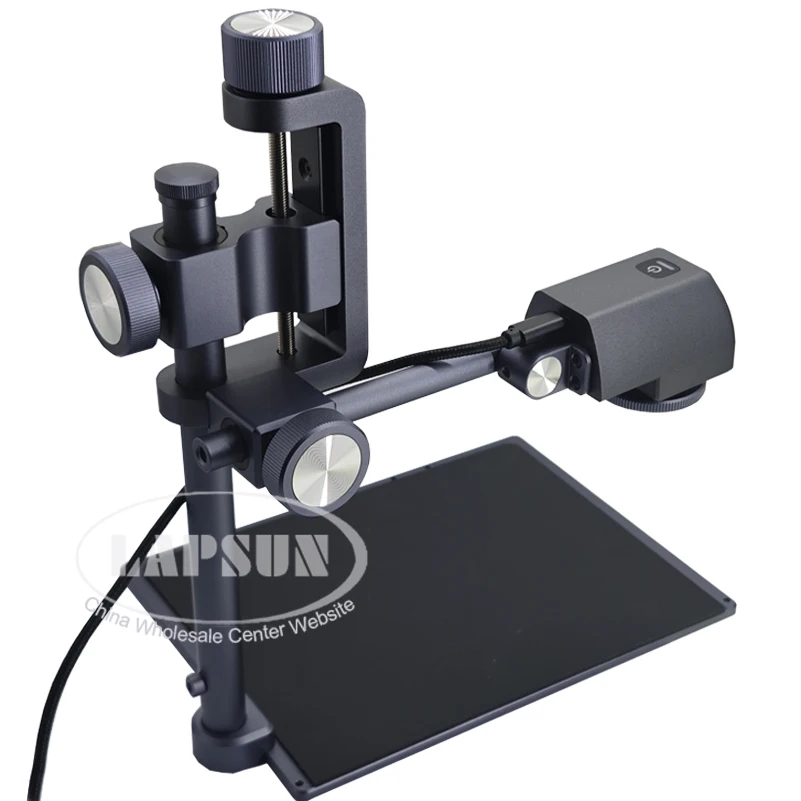

-10℃~450℃ CA Series Scientific-Research Grade Thermal Analyzer with Angle adjustment frame

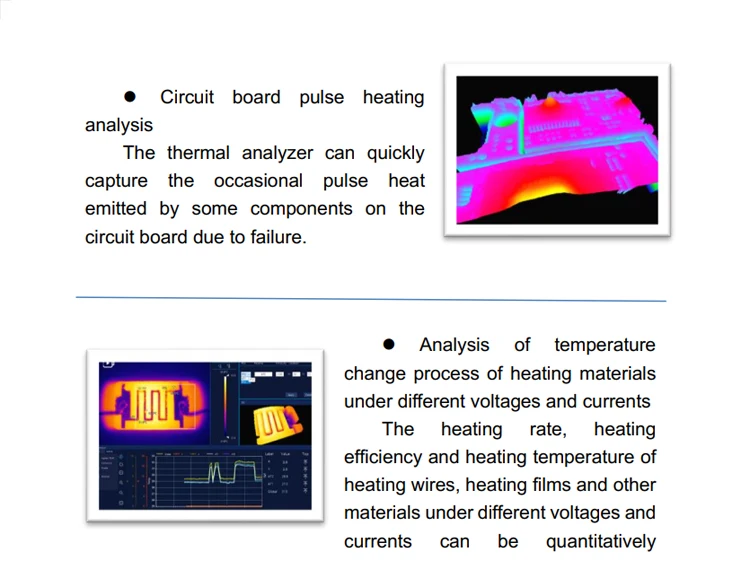

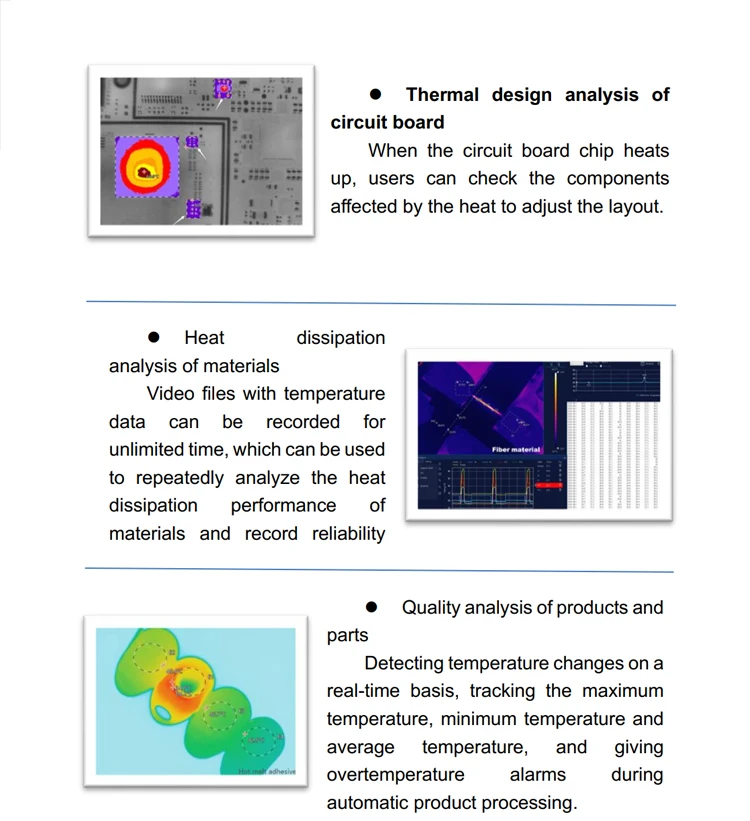

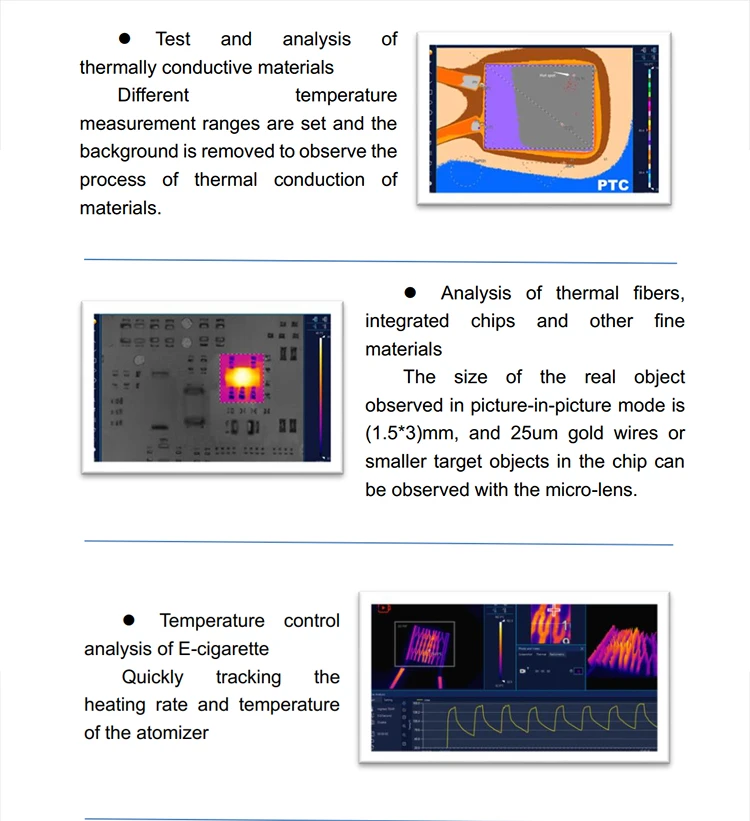

Application Scenarions:
















Feature:



  • Adopting a high quality thermal imaging detector; wide temperature measurement range: -20℃~450℃

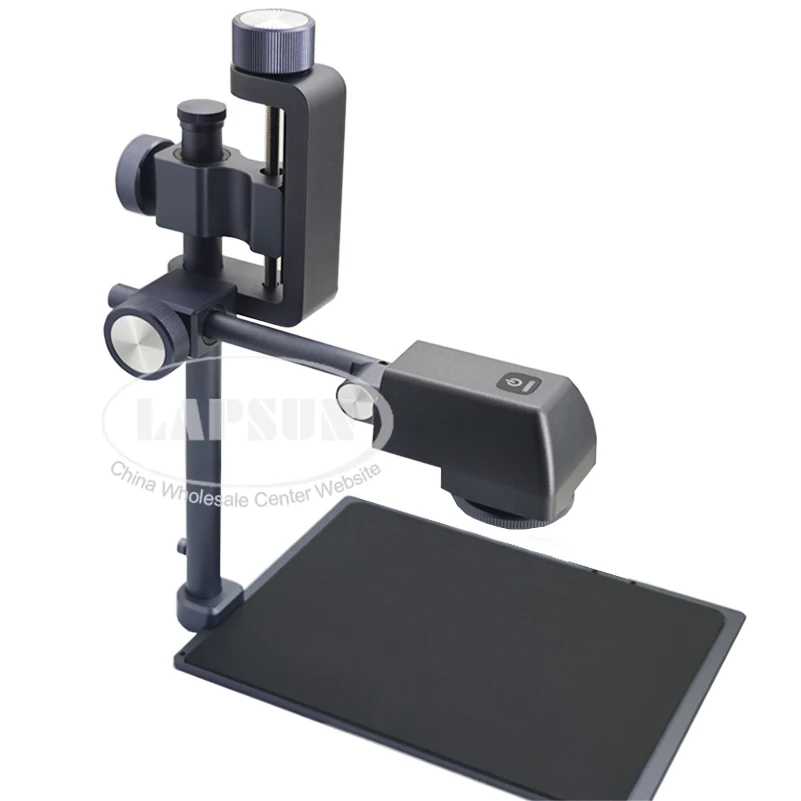

  • Angle adjustment frame, with the adjustment mode designed according to experimenters' custom
  • Direct connection via USB; image transmission without delay; simple connection and ease of used
  • Can be connected to power analyzers and temperature sensors for multi-dimensional analysis of ambient temperature, voltage, current and temperature data
  • With the professional analysis software, smaller details and richer contents can be observed, recorded and detected
  • Automatic upgrade of software: the new version of software can be received at any time
  • Full radiometric thermal video can be observed in real time, or full radiometric thermal video can be recorded for offline analysis

Specification:



  • IR Resolution: 260*200
  • NETD: <70mK@25℃,
  • FOV: 34.4°X25.8°
  • Image Frequency: 25Hz

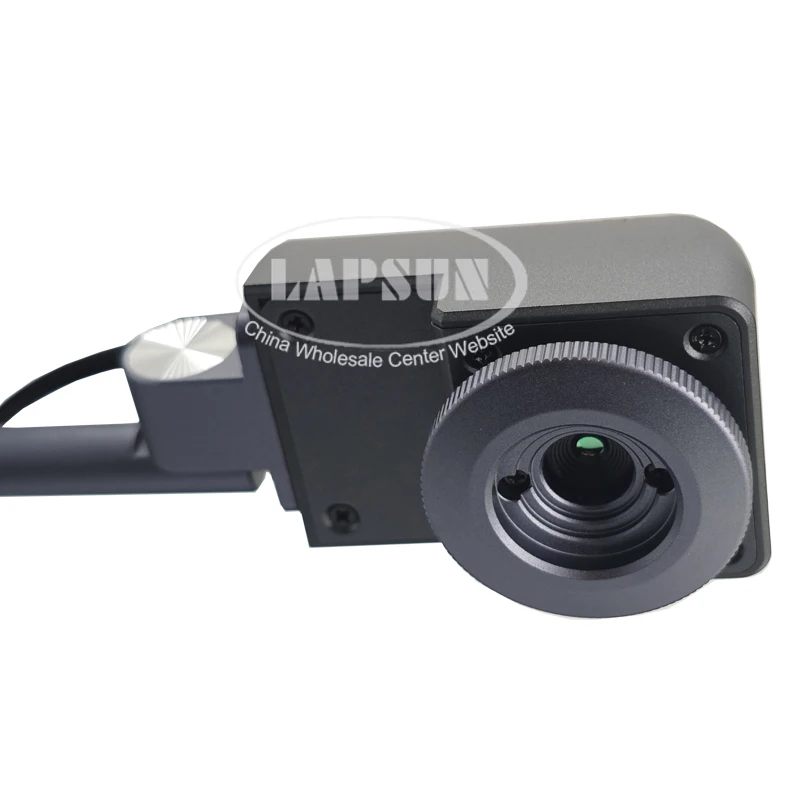

  • Focus mode: Manual focus
  • Working temperature: -10℃~+55℃
  • Measurement and Analysis
  • Object Temperature Range: -10℃~450℃
  • Temperature measurement accuracy: ±2 or ±2% for -10℃~120℃, and ±3% for 120℃~450℃
  • Measuring distance :(4 ~ 200)cm
  • Temperature: correction Automatic
  • Separate emissivity set: Adjustable within 0.1-1.0
  • Image file: Full-temperature JPG thermogram (Radiometric-JPG)

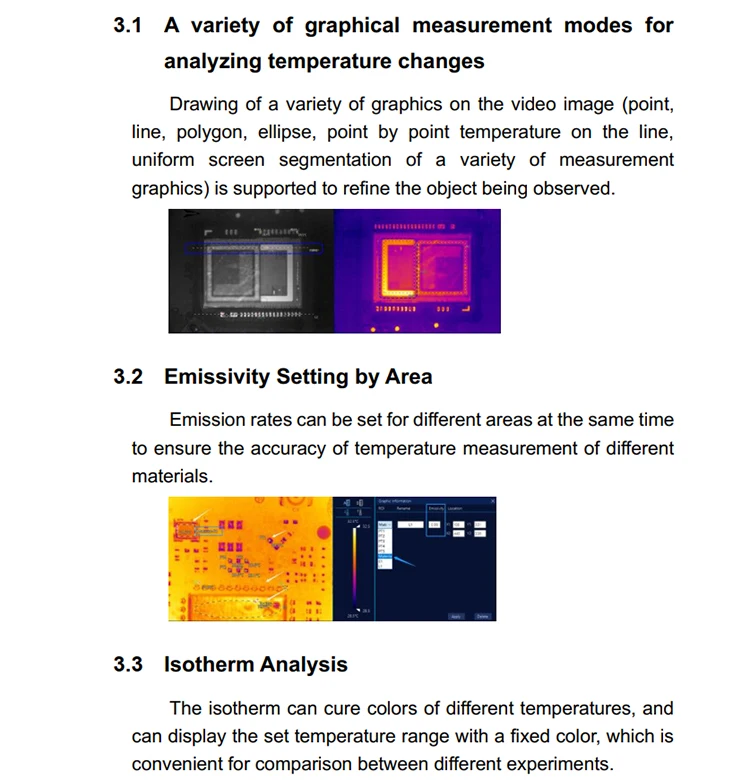

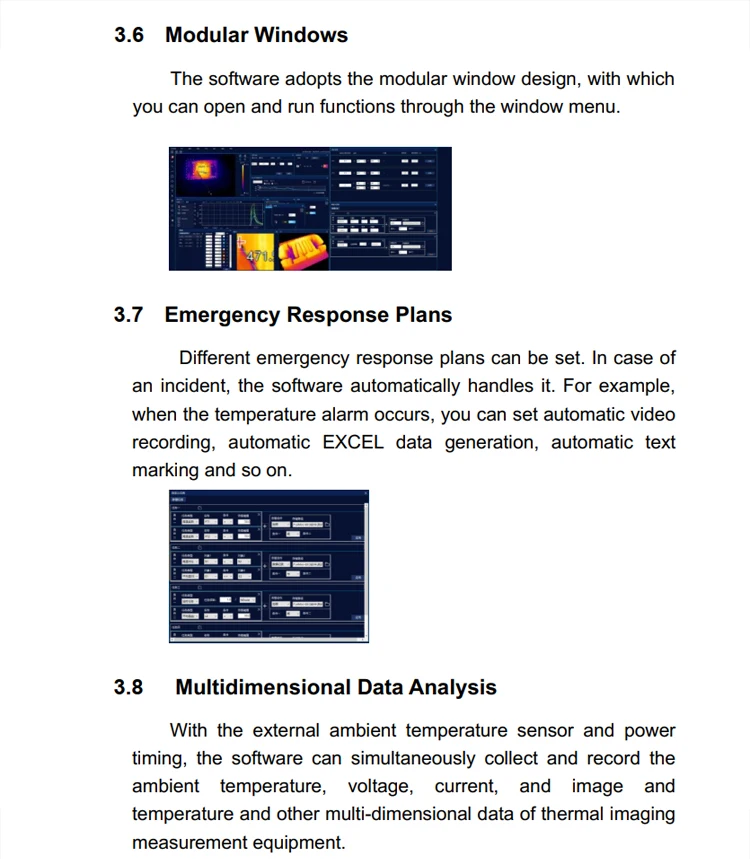

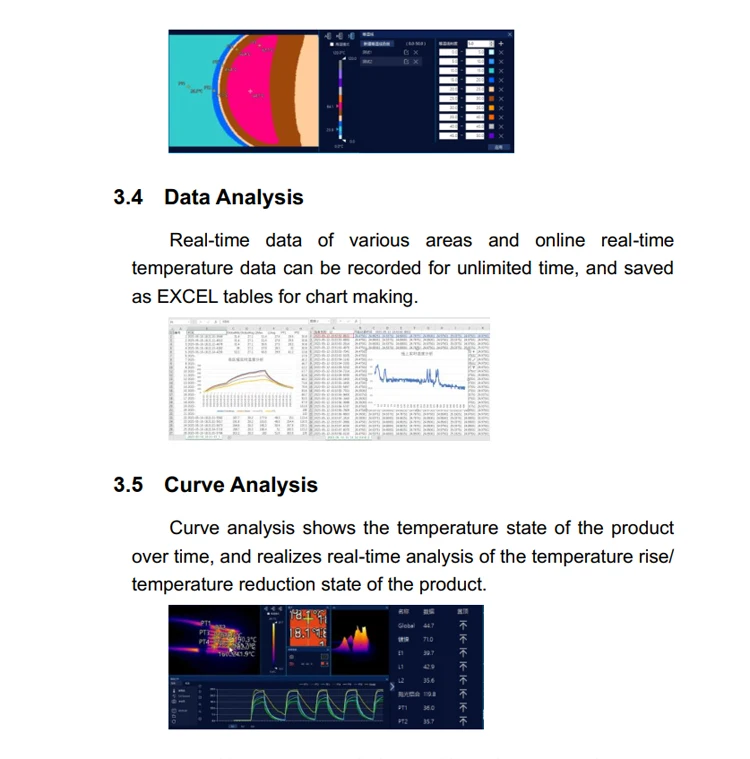

Software Functions:














Package including:



  • 1 x Scientific-Research Grade Thermal Analyzer with Angle adjustment frame
    (Including the camera, stand and software)
