- High Quality, High Resolution, Clear Images
- 800 lines Definition
- Japan CMOS

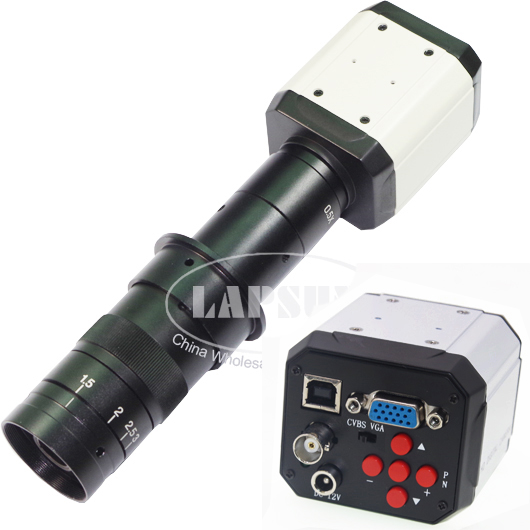

- Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
- It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negativeï¼ŒCompare function ã€‚
- Supply USB2.0, VGA, CVBS three output ports.
- Supply USB2.0 + VGA or USB2.0+CVBS output at the same time.
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.
- Model: Camera with VGA AV USB2.0 three output
- Sensor: 2.0mp,1/3 inch
- Full Resolution: 1600X1200 (UXGA)
- 800 lines Definition
- Frame rate: 10-15(USB2.0)
- White Balance: Auto
- Light: Auto
- Color: Color/B&W
- Negative: Support
- Morror: Left/right,Up/Down
- Freeze: Support
- OSD: English/Chinese
- Picture compare: Captured picture dynamic video 1/2 screen compare
- Contrast: Support
- Saturation: Support
- Cross cursor: Support,different color
- Line: different color,2 horizontal line
2 vertical line,any positions
- Digital Noise reducer: Support
- VGA(RGB): 720P/1024x768/1280x1024/1366x768@60HZ

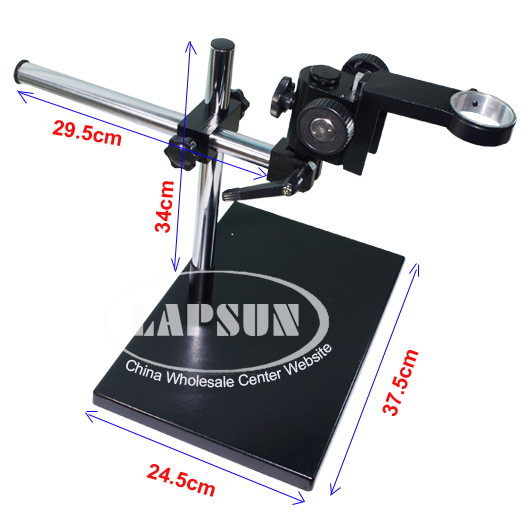

Stereo Table Stand Feature:
- Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
- This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.

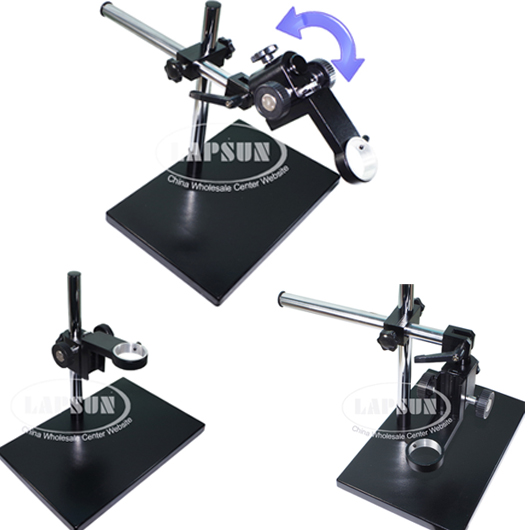

- The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
- We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
- Item size: see the 4th picture
- Weight: 3.3kg
- Working distance: 95mm

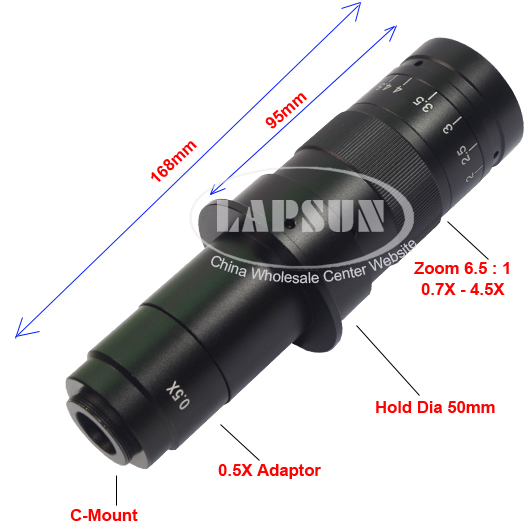

- zoom c-mount Lens
- 0.5X C-mount adapter
- zoom ratios: 6.5:1
- Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
- Size: 180mm(L) * 50mm(DIA)
- Weight: 450g

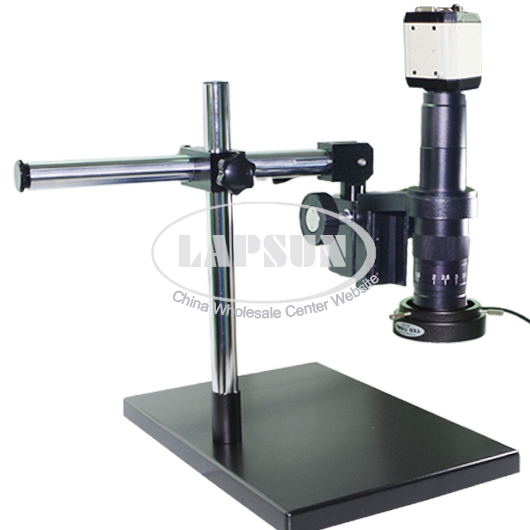

- 1 x Camera
- 1 x C-MOUNT Lens
- 1 x power supply
- 1 x USB line
- 1 x Software DISC
- 1 x LED Ring light
- 1 x Digital Microscope Table Stand
