20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178
  • 20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178
  • 20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178
  • 20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178
  • 20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178
  • 20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178

20-180X Panorama USB 3.0 C-mount Lens Industrial Microscope Camera Sony IMX178

$539.00



  • Description
  • Reviews
  • Shipping & Returns
180X High Speed 3072 x 2048 :40fps USB 3.0 6MP Color sensor Microscope Camera, it is suitable for Win7/ 8/win10, free Panorama software to connect with PC Sony professional CMOS sensor, 6 megapixel sensor-IMX178 with Dual Arm System Stand with Dual Arm System Stand








Features:

  • Sony professional CMOS sensor:
    • 6 megapixel sensor-IMX178
    • Sensor Size-1/ 1.8"
    • Pixel Size-2.4x2.4μm
    • Resolution -3072 x 2048
  • ISP color-interpolation algorithm:
    • Effectively improve the color deviation of the sensor
    • Perfectly restore the true color of the sample
  • USB3.0 Stable high-speed transmission:
    • Simple and convenient while ensuring a stable rate
    • At full resolution, 35 fps rapid imaging can be achieved
  • Supports 4 Cameras Simultaneously:
    • Automatic matching data bandwidth algorithm Achieve
    • the state of 4 cameras running synchronously

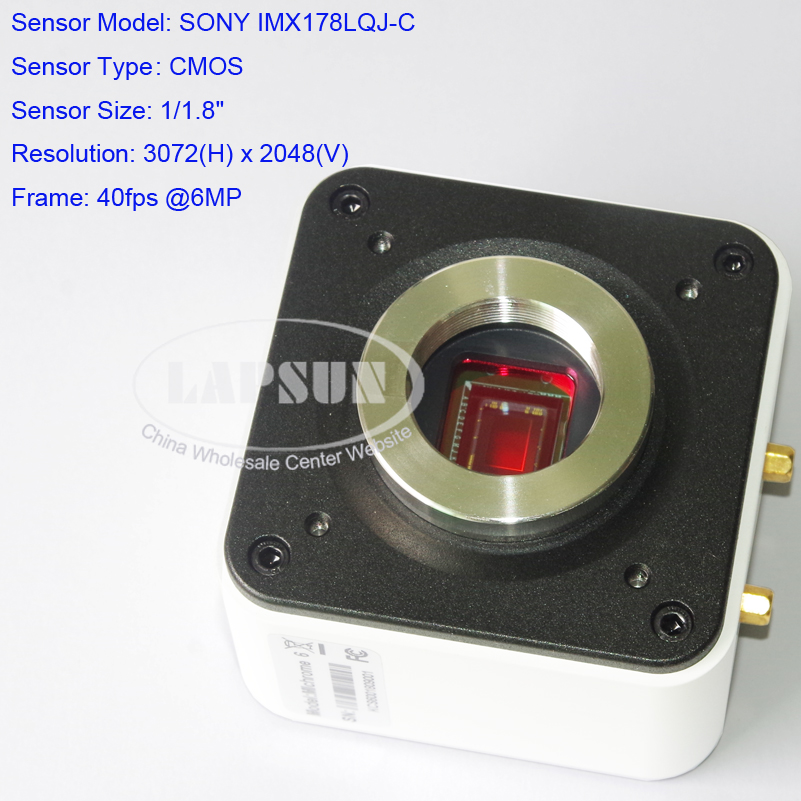

Specification:

  • Sensor Model: IMX178LQJ-C
  • Sensor Type: CMOS
  • Sensor Size: 1/1.8"
  • Color/Mono: Color
  • Pixel Size: 2.4 x 2.4(μm)
  • Resolution: 3072(H) x 2048(V)
  • Frame: 40fps @6MP (Need Your CPU and GPU are powerful. )
  • Shutter Mode: Rolling
  • Exposure Time: 0.13ms-15s
  • Automatic Set: Exposure, Color Scale, White Balance
  • Manually Set: Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction
  • Color Temperature: 2000-15000K
  • ADC Depth: 12Bit
  • PC Software: Mosaic V 2.0
  • Picture Format: JPG / PNG / TIFF
  • Operating System: Windows / Linux / Mac
  • Multiple Cameras: Supports 4 Cameras Simultaneously
  • Data Interface: USB 3.0
  • Optical Interface: Standard C Mount
  • Camera Size: 68 x 68 x 46 mm
  • Camera Weight: 330 g



DMosaic V 2.0 software (include in the U-Disc for free) feature function:

  • Intelligent 12-bit ISP color reproduction
  • Real-time depth of field fusion
  • Real-time image stitching
  • Real-time fluorescence image synthesis and editing
  • HDR image synthesis
  • Micro-imaging-based intelligent automatic exposure
  • Smart measurement workflow
  • Implements multiple iterations of workflow execution
  • Supports single shot, integral camera, delayed camera
  • Automatic video and delay video generation
  • Output format selection
  • User parameter group save and load
  • Dynamic static measurement, layered measurement
  • Supports measuring gauges, layers, precision, naming, style
  • Implements drawing: points, lines, rectangles, polygons, circles, arcs, angles
  • Data export as TXT or Excel
  • Report generation and printing

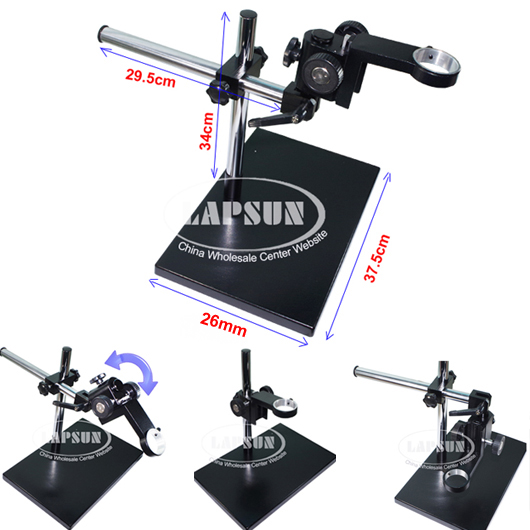

Dual Arm System Stand:

  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
  • Item size: see the 4th picture
  • Weight: 3.5kg

C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

Package Content:

  • 1 x USB3.0 /USB 2.0 high speed camera body
  • 1 x USB3.0 Cable
  • 1 x U-Disc (include Mosaic V 2.0 software )
  • 1 x Stereo Table Stand
  • 1 x C-MOUNT Lens
  • 1 x 144 Bulbs Microscope LED Ring Light
  • 1 x 100V-240V power supply (EU / UK / AU Adapter for free)
