Feature:
- Shadow-free coaxial light
- C-mount lens
- Sharp images
- 3.5X-22.5X Optical multiplier zoom objective ( about 200 - 2000X on the display( CCD/COMS Size: 1/3 ", display Size: 21 ") )
Specification:

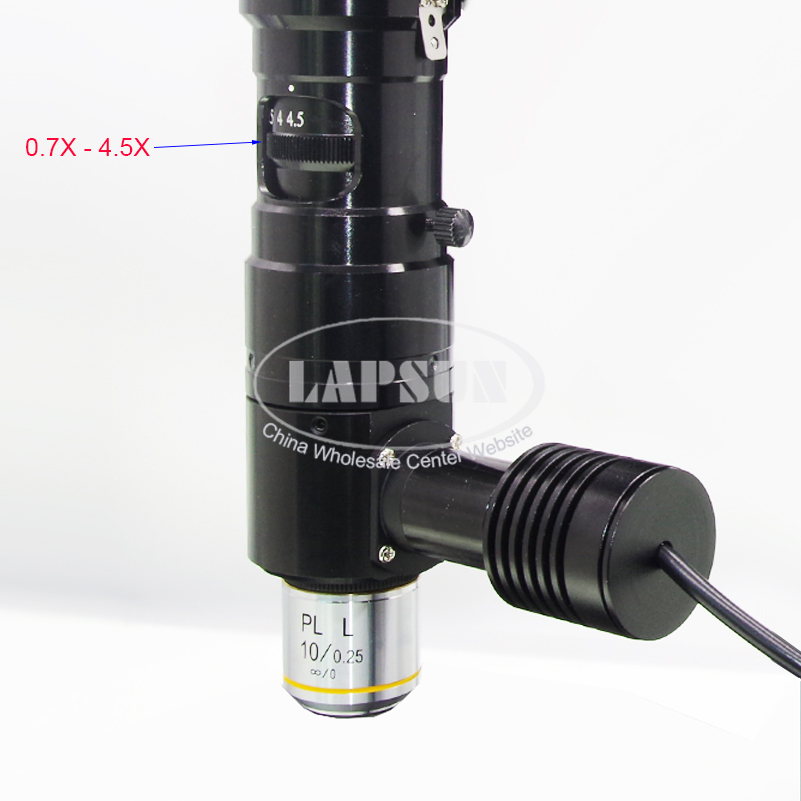

- Zoom microscope objective: 3.5X-22.5X
- Mount: C-mount for PC or TV camera connection (camera sold separately)
- Working distance: 10-15mm
- Field of view: 1.5mm-0.2mm
- Illumination: coaxial light
- Light Power input: 110 - 240V, 50 - 60HZ, auto switching
- Pillar: 280mm long
Metal Stand:
- Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm

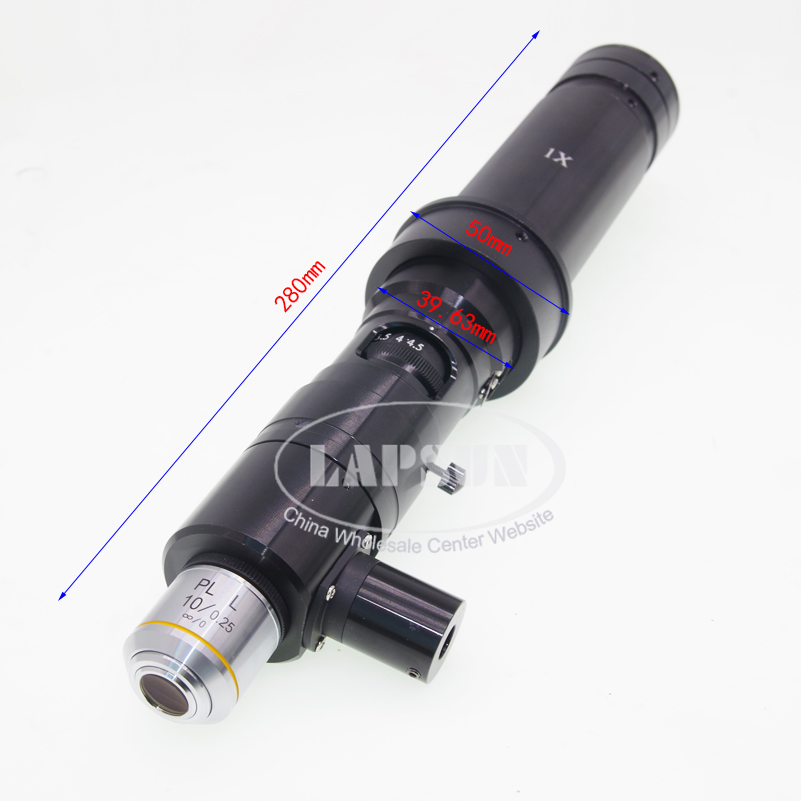

- Item size: see the picture
- Weight: 2.5kg
- 14MP 1080P CMOS HDMI HD USB Output Industry Lab PCB Soldering Microscope Camera
- High Quality, High Resolution, Clear Images
- 14 megapixel Panasonic sensor
- Photo Model / Video Model
- Industry Cmos Camera. It can show the living image directly on any HDMI monitor , Projector or TV.
- It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative，Compare function
- Supply USB2.0,HDMI HD video,Two output ports
- We sold a lot of to the factory for review and analysis, it is a good tool to find the problem directly on monitor.
- Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB),.
- HDMI Video resolution: 1920 *1080 @ 30FPS
- USB Video resolution: 1920 *1080 @ 25FPS
- TF Card Video Recorder
- 1080P 1280*1080@30FPS video recorder
- White balance: Auto/manual
- Digital magnification: 5 times digital zoom
- Brightness control: Auto/manual
- Freeze: Support
- OSD: Support
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line Support multi-color, 4 pcs of transverse lines/vertical lines, moveable SNR Support
- TF card interface: Max 32G
- HDMI interface: Standard HDMI output (Type A)
- Video format: AVI
- Light: Auto
- Color: Color
- Negative: Support
- Morror: Left/right,Up/Down
- Freeze: Support
- OSD: English/Chinese
- SONY IMX290 HDMI TF Video Industry Microscope Camera
- Measurement function (only L102 Digital Camera Support):
Labeling functions : Point coordinates, cross lines, text annotations
Length measurement: Line length, line length, curve length, parallel line distance, point line distance
The center distance : The radius fixed circle, two points setting circle, three points setting circle
Geometric measurement : Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
The geometric area: Polygon, square
- UI Digital design, mouse operation, humanized design
- High Quality, High Resolution, Clear Images
- 1080P FULL HD 60FPS high speed camera
- SONY SENSOR IMX290 Colour CMOS
- UI design menu, easy to control by mouse
- TF Card Video Recorder
- Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
- It build in digital crosshairs and color control, add line in the pictures
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.
- Image Sensor : Colour CMOS
- Pixel size : 1/2.8〞
- Menu : Fully digital UI design
- Method of Operation : Mouse
- Lens interface : C/CS-type
- Power DC : DC5V
- Output method : HDMI
- White Balance : Auto / Manual / One-push control
- Exposure : Auto / Manual
- Display Frame rate : 1080P@60fps
- Scanning method : Line by line scanning
- Shutter Speed : 1/50s(1/60s)～1/10000s
- Operating Temperature : 0℃～50℃
- Magnification / Zoom : Support
- Saving function : Support TF card
Package including:

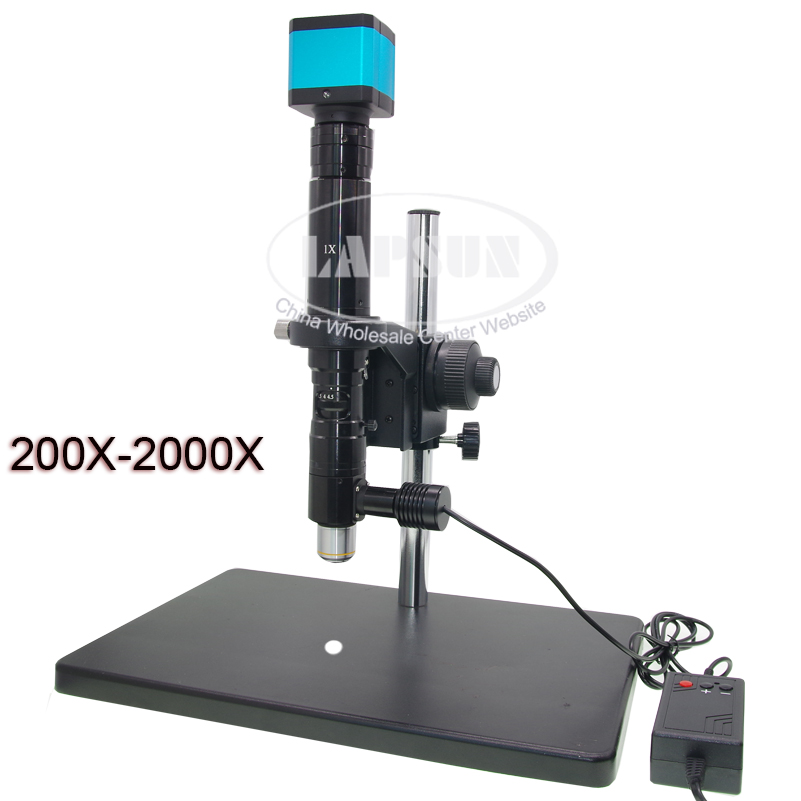

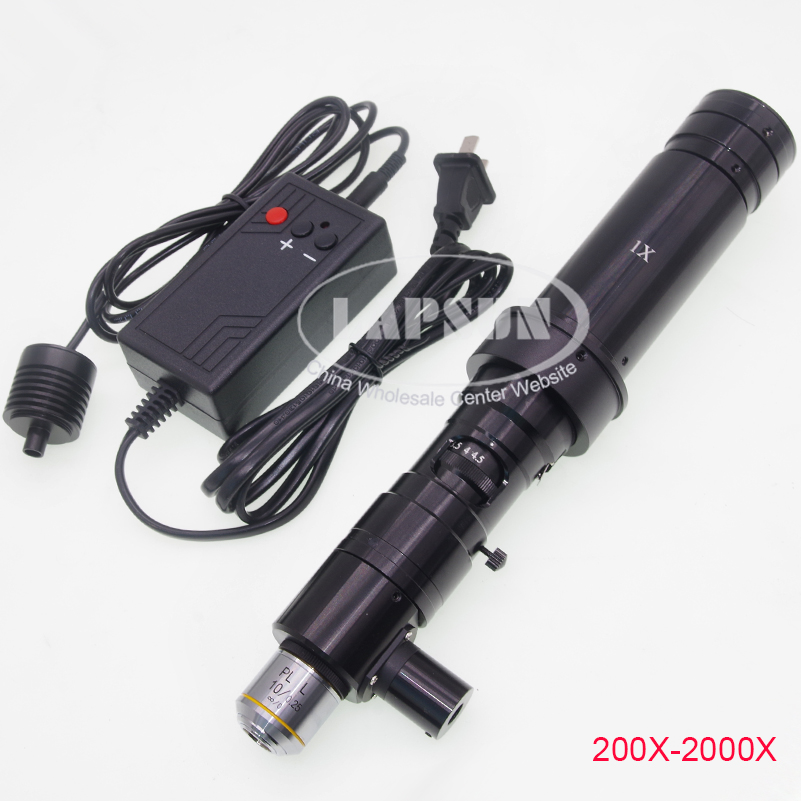

- 1 x 200X-2000X Coaxial C-mount Lens
- 1 x Coaxial Light
- 1 x Metal Stand
- 1 x Digital Camera (Option)
|
