3D & 2D 20X-200X Auto Focus Focal 1080P 60FPS HDMI Camera Parfocal C-Mount Industry Microscope Set

3D & 2D 20X-200X Auto Focus Focal 1080P 60FPS HDMI Camera Parfocal C-Mount Industry Microscope Set

$875.00
 Sold Out



  • Description
  • Reviews
  • Shipping & Returns

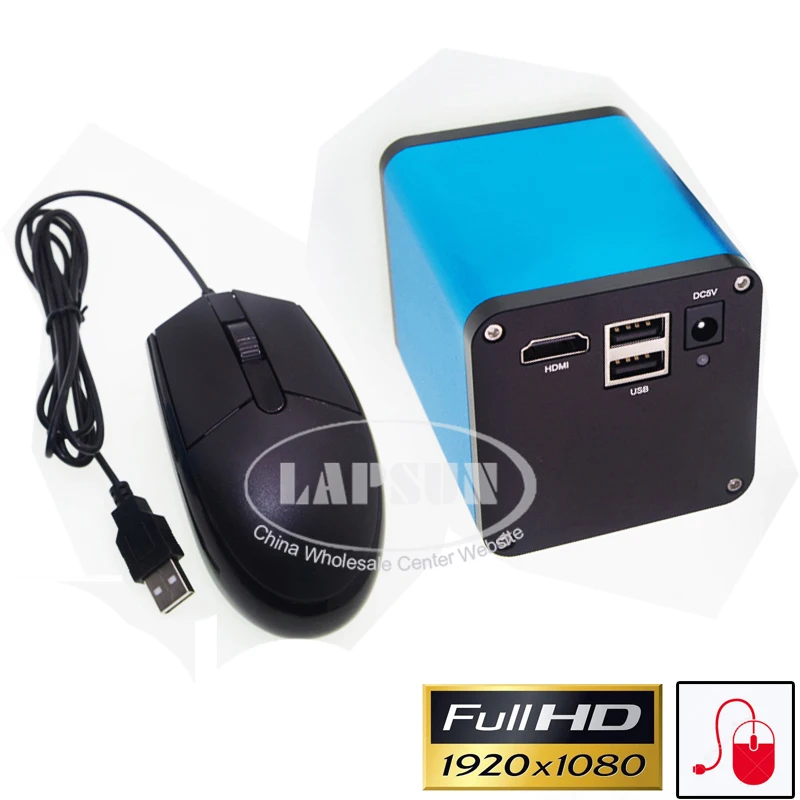

Autofocus 1080P@60FPS HDMI Industrial C-mount Digital Microscope Camera with Measurement Function
+ Parfocal 2D & 3D Stereoscopic 20-200X C-MOUNT Lens + Ring LED light 4 Zones Control Box















Camera Feature:



  • Full HDMI 1080P@60FPS, Sony High sensitivity CMOS sensor
  • The camera uses HDMI cable to connect to the HD monitor. The dual USB ports of the camera can be connected to a mouse and USB stick to achieve the image capture or recording, no need to connect to computer
  • The Type-C connector of the camera can connect to computer, which can achieve HDMI and USB 1080P@60fps sync output
  • The camera can start within 5-second. With user-friendly WINDOWS style UI interface, so that it's easy to operate even it's first time to use it
  • UI design menu, easy to control by mouse
  • Autofocus (C212),
    when Change the focal length of the lens ,no need to Adjusting the focusing ring,
    when observation Objects of different heights(2D Mode ,MAX 10CM), you do not need adjust the lens's Working distance








Specification:



  • Image Sensor : SONY IMX307 Colour CMOS
  • Pixel size : 1/2.8〞
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC5V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Magnification / Zoom : Support
  • Saving function : Support USB stick
  • Autofocus( OPTION)





  •



Parfocal 2D/ 3D Lens:



  • 1. The 3D industry lens based on infinity optical system

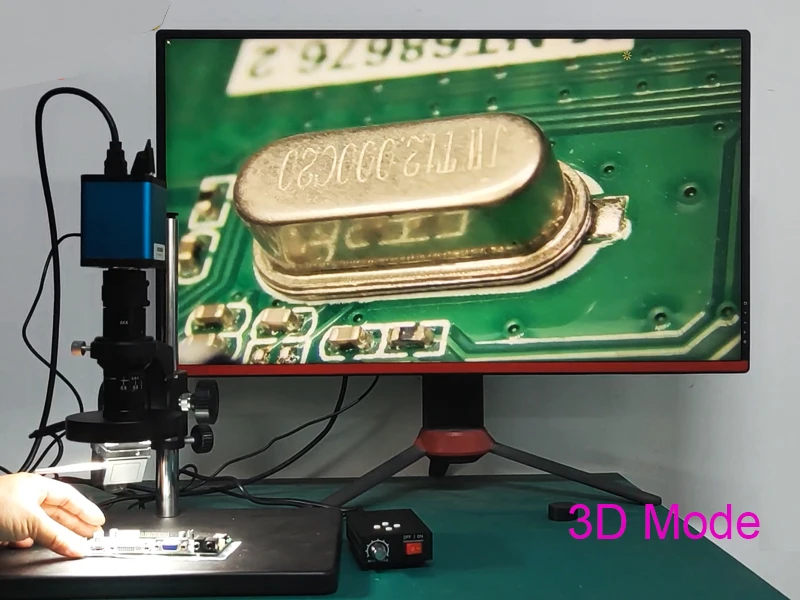

  • 2. It can manual swtich 2D and 3D observation, 360 degree rotation. When you swtich 2D to 3D Model, the working distance can keep at the same working distance.
  • 3. At mininum magnification, the field of view is full image without dark edge, high solution, and large depth of view.
  • 4. CCD adapter with fine-tuning device, it can match any CCD camera.
  • 5. Widely used in microelectronic, precision electrics, precision hardware, deep hole wall, life science, morphology

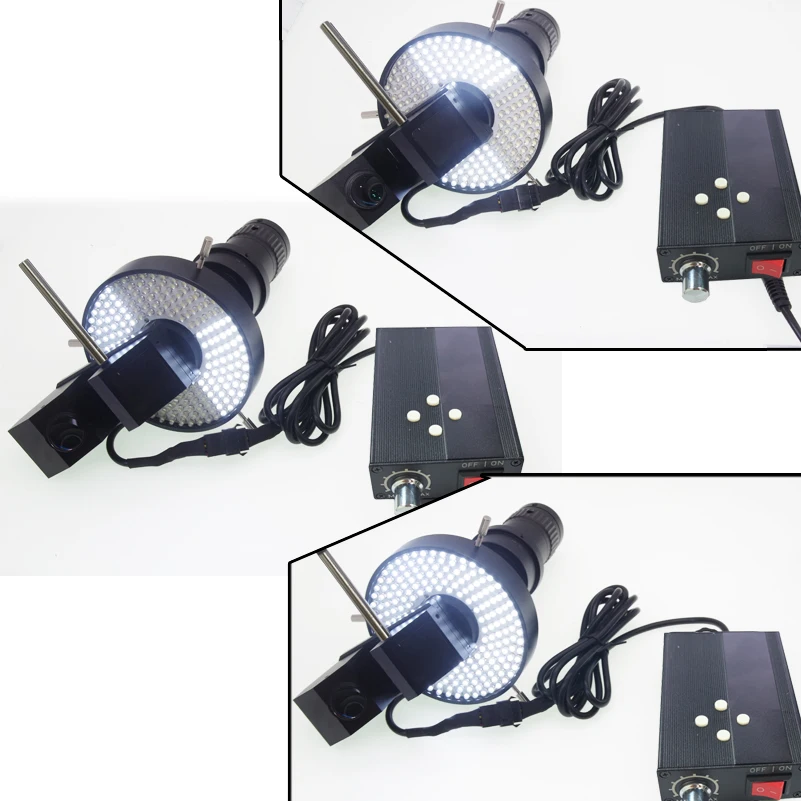

  • 6.Ring LED light 4 zones control
  • Working distance:
    2D model: 8CM
    3D model: 5CM
  • Field of view:
    2D model: 2mm-25mm
    3D model: 2.4mm-20mm

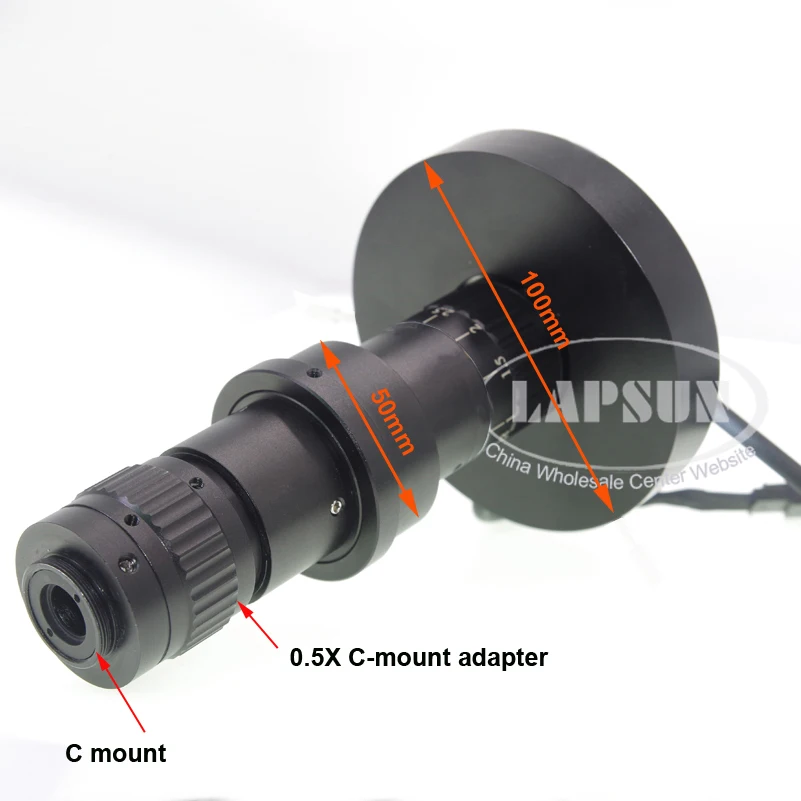

  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • Objective Magnification Power by 0.6 - 5X
  • ALL Optical mag: 0.3X- 2.5X(about 20 - 200X on the display)
  • Size: 220mm(L) * 105mm









Package including:



  • 1 x C-mount Digital Camera (OPTION)
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x 100V-240V power supply (EU / UK / AU Adapter for free)
  • 1 x Metal stand
  • 1 x Parfocal 2D & 3D C-MOUNT Lens with LED Light
