40X-1600X Medical Lab Clinic Vet Trinocular Compound Biological Microscope + 14MP HDMI USB FULL HD Digital Camera

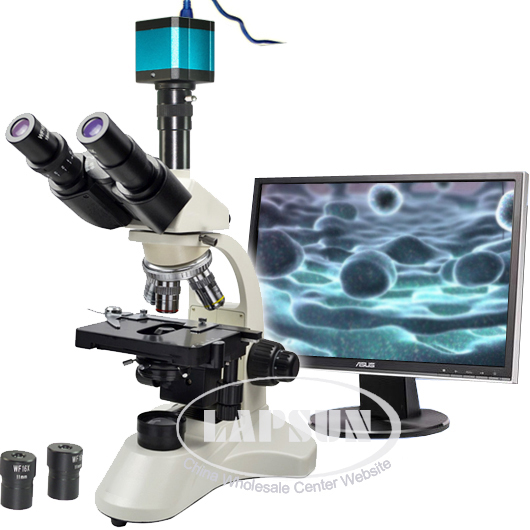

This is an advanced trinocular Siedentopf compound microscope with 4 objectives and the power range from 40X to 1600X. It comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four objectives, large double layer mechanical stage with slide clips and variable intensity halogen transmitted illumination system. The trinocular port is easy to mount photo or video capability. You can add advanced accessories including darkfield condenser to upgrade your microscope. This top level lab microscopy is designed for research laboratories and advanced applications in clinical offices.


Features:

  • Siedentopf trinocular viewing head with adjustable interpupillary distance

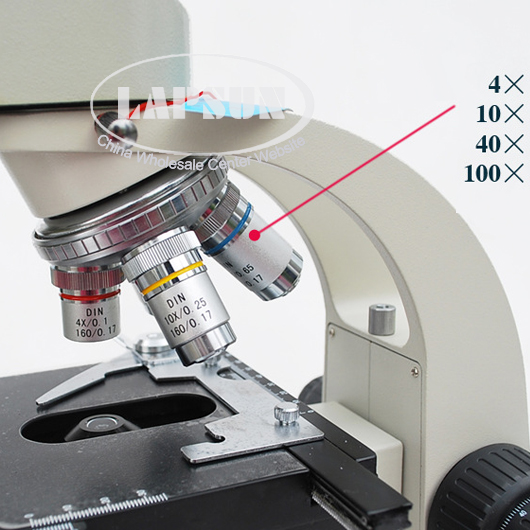

  • 4 objectives 4X, 10X, 40X (spring), 100X (spring, oil)

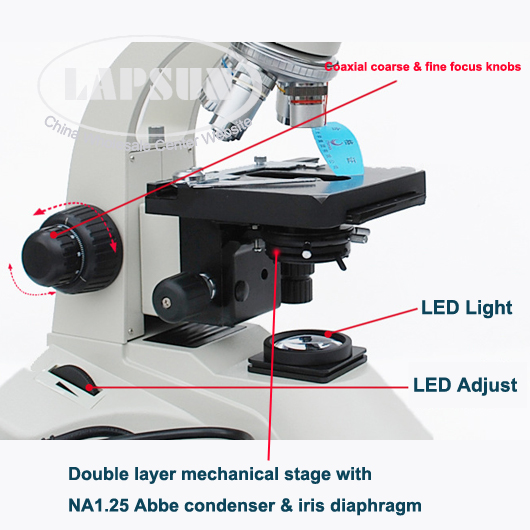

  • Double layer mechanical stage with NA1.25 Abbe condenser & iris diaphragm
  • Coaxial coarse & fine focus knobs on both sides and sturdy metal framework
  • Variable intensity transmitted halogen illumination

Specification:

  • Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X
  • Eyepieces: widefield WF10X/18 and P16X
  • Objectives: achromatic 4X , 10X , 40X ( spring), 100X ( spring,oil)
  • Viewing head: Inclined 360°rotatable
  • Focusing Range: 22mm
  • Division of Fine Focusing: 0.004mm
  • Diopter: adjustable on left eyepiece tube
  • Nosepiece: reversed revolving quadruple nosepiece
  • Stage: double layer X-Y mechanical stage with scales, size 125mm x 110mm, translation range 62mm x 30mm
  • A specially designed back slot on the microscope stand for easy hand holding and carrying
  • Illumination: transmitted, LED lamp, variable intensity
  • Focus: coaxial coarse and fine focus knobs on both side with tension control
  • Stage upward stopper for protecting objective and slides
  • Condenser: Abbe condenser NA1.25 with iris diaphragm & filter holder, rack & pinion adjustment
  • All metal mechanical components
  • Power supply: 100-240V, 50/60Hz
  • Dimension: 37cm x 34cm x 20.5cm

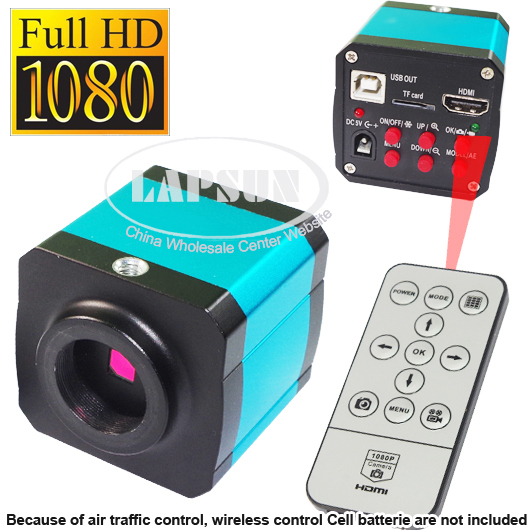

Digital camera:

  • High Quality, High Resolution, Clear Images
  • 14MP Japan CMOS
  • Encode: H.264 (High Profile)
  • TF Card Video Recorder
  • Photo Model / Video Model
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures, freeze
  • Supply USB2.0,HDMI HD video,Two output ports
  • Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB)
  • Video resolution: 1920 *1080 @ 30FPS (USB output 1920 *1080 @ 25FPS )
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor
  • Video format: AVI
  • Encode: H.264 (High Profile)
  • White Balance: Auto
  • Light: Auto
  • Color: Color
  • Negative: Support
  • Morror: Left/right,Up/Down
  • Freeze: Support
  • OSD: English/Chinese
  • Line: different color,4 horizontal line , 4 vertical line,any positions

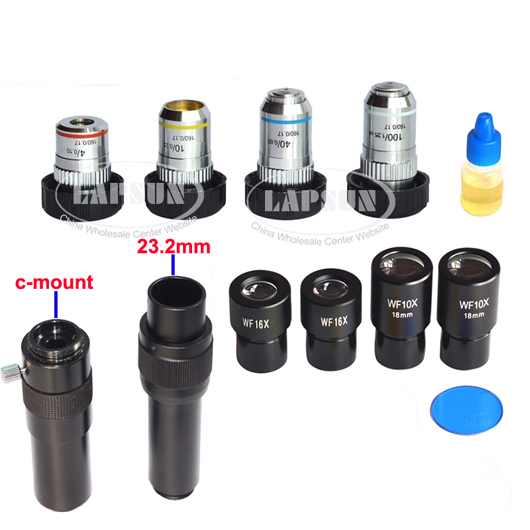

Packing including:

  • Trinocular microscope Siedentopf viewing head
  • Microscope stand
  • 4 achromatic objectives: 4X, 10X, 40X, 100X
  • A pair of eyepieces WF10X/18
  • A pair of eyepieces P16X
  • 1 color filters: blue
  • 1 bottle of immersion oil
  • 23.2mm Trinocular adapter (connect 23.2mm digital camera)
  • C-Mount Trinocular adapter (connect C-Mount digital camera)
  • Dust cover
  • Power cord
  • Extra fuses
  • Digital HDMI Camera
  • USB Cable
