2025 RZSP4 1/1.8" IMX678 60FPS COMS 4K HDMI UVC Industry Microscope Camera USB Mouse Operation with Measurement

1/1.8" Big Size SONY 678 COMS
8.4MP 3840*2160 Photo, 4K Video HDMI Industrial Microscope Camera Support TF Card Storage Picture Mouse Operation with Measurement Function

Feature:

• 1, Multifunction measurement function
• 2, 1920*1080/3840*2160(4K) HDMI output (Long press the 5 second photo key to convert 1080P 4K)
• 3, Two USB interfaces (one USB mouse, one U disk).
• 4, Save the picture (picture) to the TF Card or browse the pictures in the TF Card
• 5. Cross lines: 1-12 groups, color is optional, size adjustable.
• 6. Freeze function: two split screen, four split screen
• 7. Scale: any number of scale pixels can be adjusted arbitrarily.

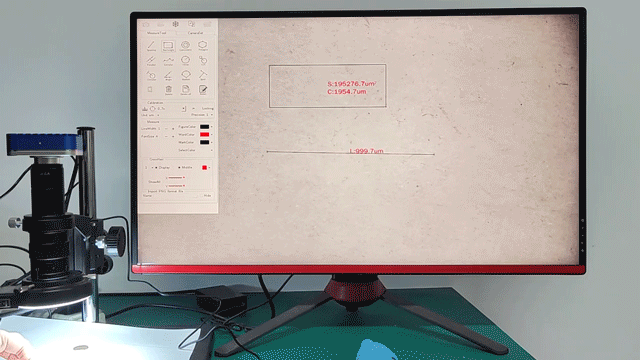

• 8. Measure function: distance between two points, rectangle, circle, angle, etc.

Specification:

• Sensor type: SONY IMX678 8.29 million pixels, 1 / 1.8 "CMOS color
• Effective pixels: 3840*2160
• Pixel size: 2.0*2.0μm
• Number of data bits: 10bit
• Frame rate: 1920*1080 60 frames / sec . 3840*2160 60 frames / sec
• Scan mode: progressive
• Shutter Type: Electronic Shutter
• Dynamic range> 90dB
• Signal to noise ratio: 55dB
• Sensitivity: 2.0 V / lux-sec (550 nm)
• Exposure method: manual / automatic
• White Balance: Auto / Manual
• Lens Interface: C / CS
• Video interface: standard HDMI interface
• HDMI output resolution: 3840*2160@60FPS , 1920*1080@60FPS
• USB output resolution: 3840*2160@20FPS , 1920*1080@60FPS
  (only RZSP4 Camera Supply USB Video output, USB and HDMI  Simultaneously Output video, when open the UVC Model on the menu)
• Support USB Disc saving function

Measuring Feature:

• UI Digital design, mouse operation, humanized design
• Labeling functions:  Point coordinates, cross lines, coordinate systems, text annotations
• Length measurement:  Line length, line length, curve length, parallel line distance, point line distance
• The center distance:  The radius fixed circle, two points setting circle, three points setting circle
• Geometric measurement:  Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
• The geometric area:  Polygon, square

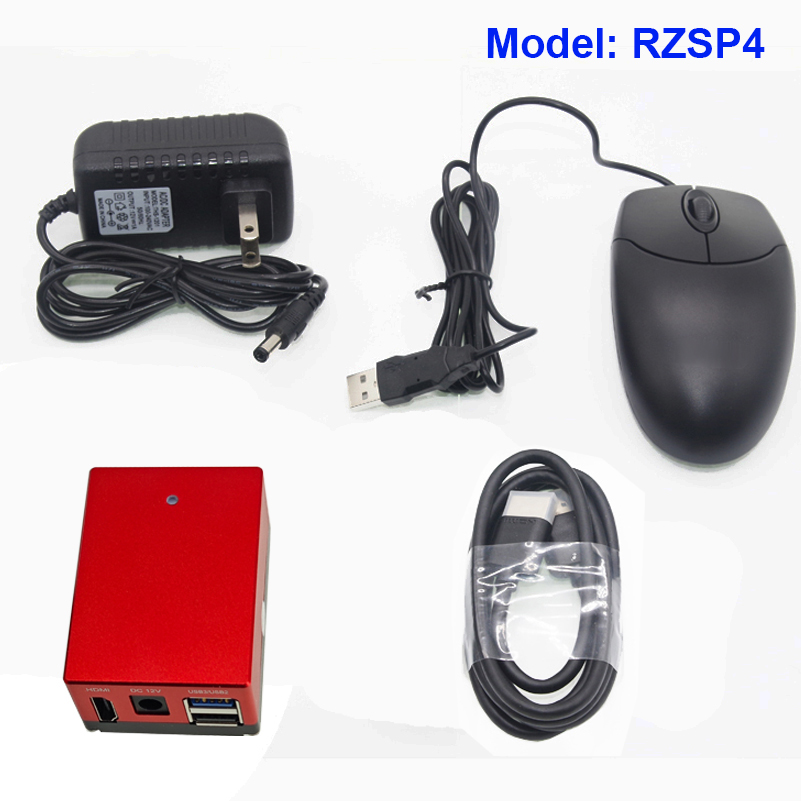

Package including:

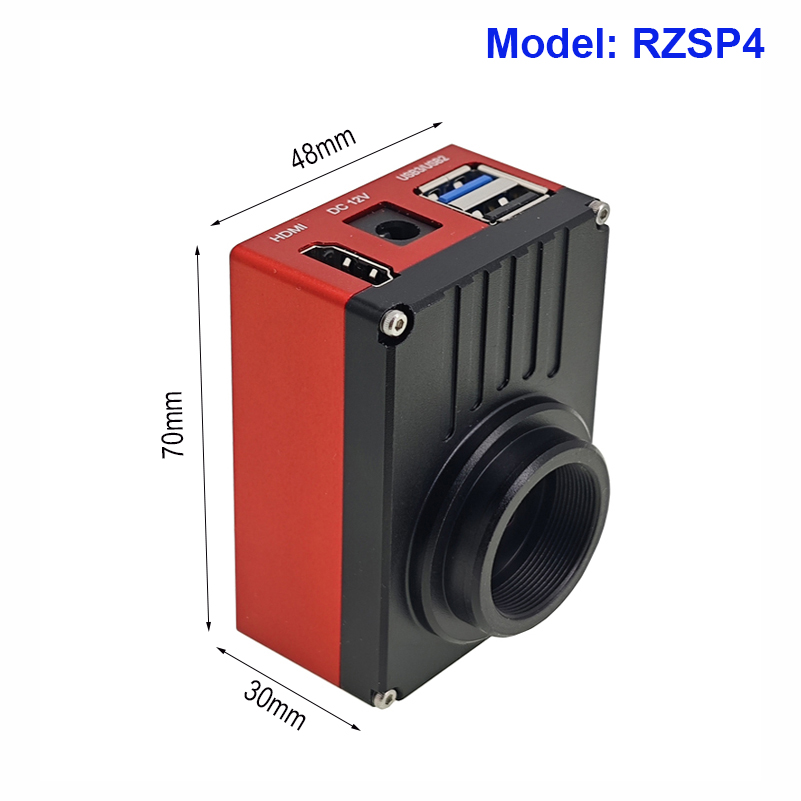

• 1 x 4K Digital Camera (Model RZSP4)
• 1 x HDMI Cable
• 1 x USB Mouse
• 1 x 4GB U-Disc
• 1 x Power Adapter( UK/EU/US/AU plug is available)

• 1. Item will be shipped within 3 days after payment received
• 2. Tax: we are not responsible for the import tax and customs charges at destination country
• 3. Usually we ship the item by standard shipping if the item weight is less than 2KG, but if the item has high value and weight is over 2KG, we will ship by DHL / UPS / FedEx express shipping, usually the shipping time is about 5-10 days to your country(depends on the customs clearance schedule).
• 4. Important! International shipment not under our control, sometimes delayed please contact us let me know. We will check for you. Over 30 days have not arrive after we checked will be replacement or give other solution. Thank you~

• 1. The warranty period is one year
• 2. If you are unhappy with your purchase, please contact us within 30 days of receipt and let us know why.
• 3. We would like to assure the all products can be arrived on time and in good condtion, but some quality problem caused by such as manufacture, material or bad quality under normal use. Defective/ Wrong Items - within the warranty period---please contact with us directly, a picture or video will be better understand the probem, so that we can provide the best suitable solution.
