10MP 100X Inwall Large Depth of Field Endoscope Machine Vision lens industry IMX385 HDMI C-Mount Camera Microscope Set

10MP 100X Inwall Large Depth of Field Endoscope Machine Vision lens industry IMX385 HDMI C-Mount Camera Microscope Set

$695.00



  • Description
  • Reviews
  • Shipping & Returns

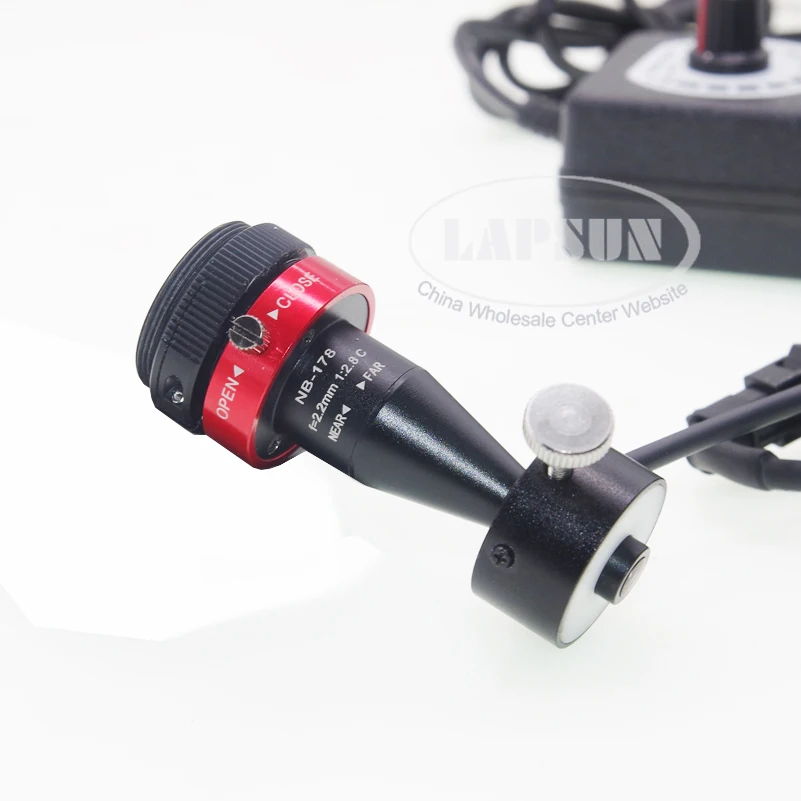

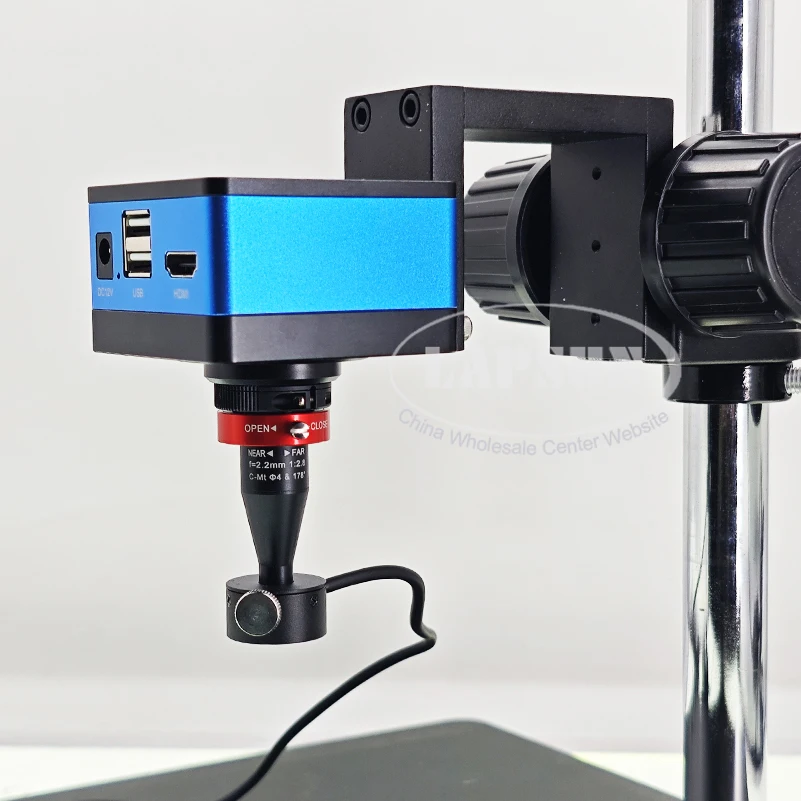

10MP HD Inwall Endoscopic industrial lens C-Mount Industrial Machine Vision lens + SONY imx385 1/2" (1080P@60FPS) Sensor HDMI output digital microscope camera





Feature:



  • 10MP High resolution Lens

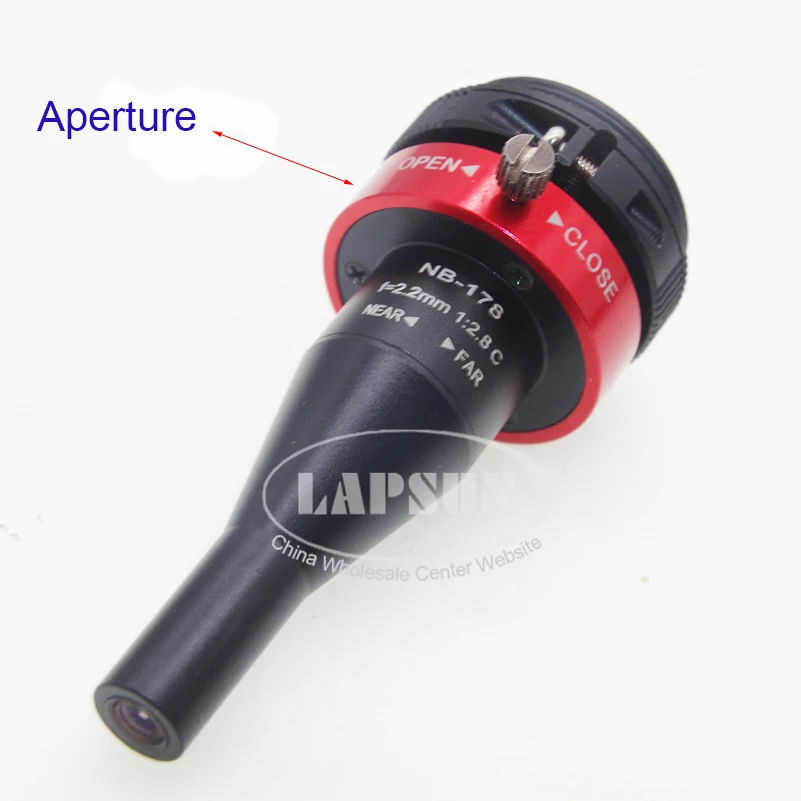

  • Adjustable aperture
  • Pointed design, suitable for small holes
  • With min bright LED ring light



Specification:



  • Focal length : 2.2mm
  • Image plane format :Image circle Φ 8(1/2") Proposal 1/1.8"
  • Relative aperture (D / F) : 2.8-16
  • Interface (Mount) : C-Mounts
  • Field angle (H / V) : 178 °
  • Back focal length : 17.53mm
  • Iris : Manual / locking (w / lock)
  • Zoom
  • Resolution (MTF) : 10Mega Pixel
  • Nearest working distance : (m.o.d) (m) 0.005m
  • Size: Φ 29.0mm * 64.0mm
  • Weight (g): 40g







Camera Application:



  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;
  • Machine vision (PCB detection, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;



Feature:



  • HDMI camera using Sony Starvis backlit CMOS sensor

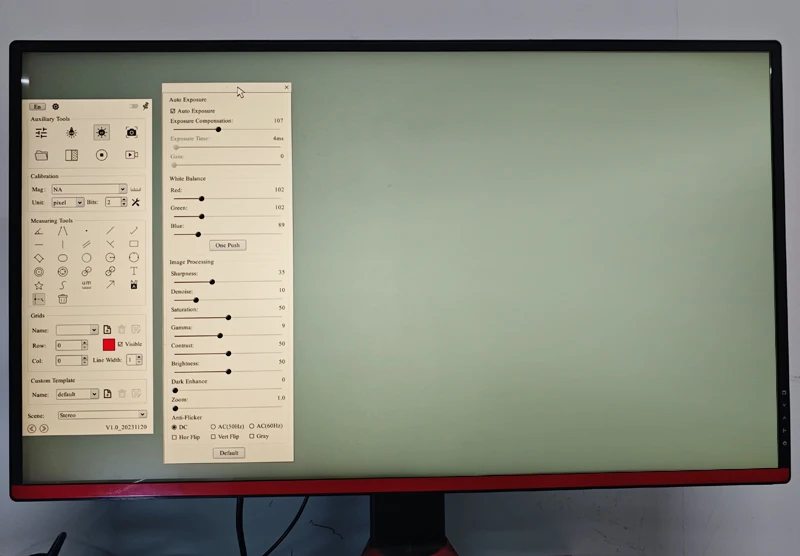

  • Embedded XCamView software for controlling cameras, providing rich measurement, grid line management, and custom template functions
  • Provide automatic edge finding, parallel line distance measurement, rectangle measurement, and other automatic measurement functions
  • Provide USB storage function, support local preview and playback, image to image, image to video comparison function
  • Powerful ISP function, providing functions such as dark enhancement, sharpening, and 3D noise reduction
  • Support quick switching of default effects between biological microscopes and stereo microscopes, making it convenient for users to use in multiple scenarios

Specification:



  • Sensor(option): SONY imx385 Sensor, senzor size:1/2" ,
  • Pixel(μm) : 3.75x3.75 (SONY imx385)
  • Resolution(option): 1080P FHD (2mp 1920x1080)
  • Preview frame rate: 60fps @ 1080P
  • Max recording frame rate: 60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk storage

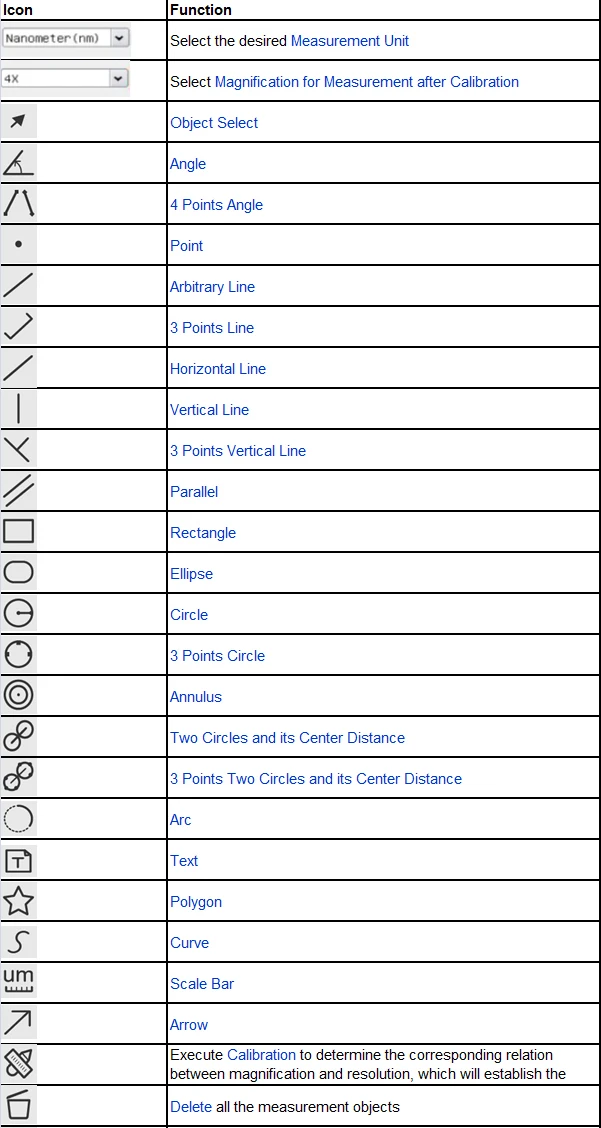

Camera Measurement Toolbar:




  • The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar

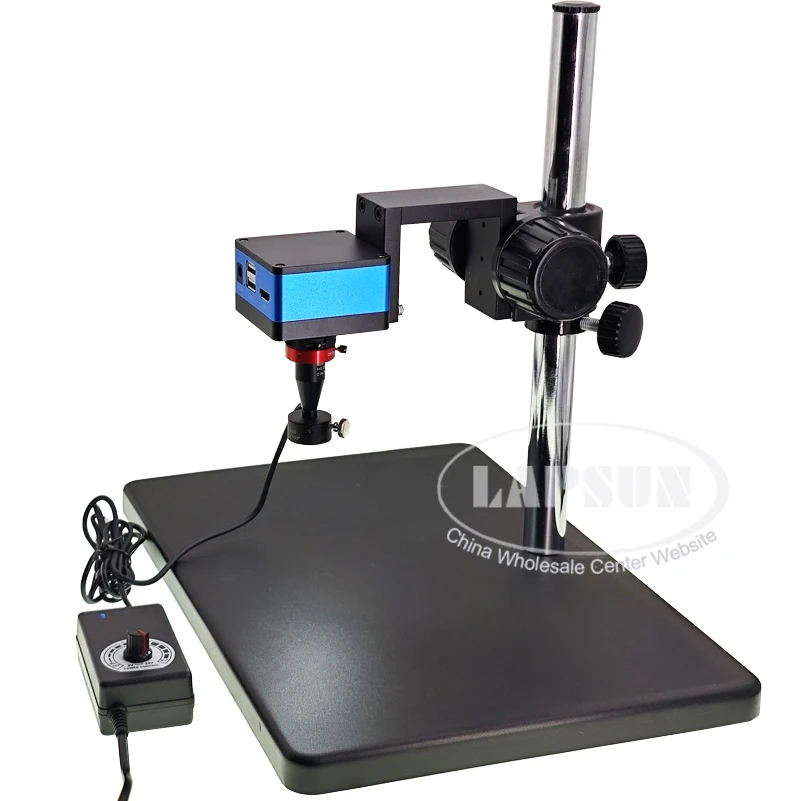

Package including:



  • 1 x Inwall Endoscopic industrial lens
  • 1 x LED Ring Light
  • 1 x IMX385 Camera
  • 1 x HDMI cable
  • 1 x Mouse
  • 1 x Power Supplier (EU, US and UK for choice)
  • 1 x Standard Microscope Bracket
