4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring
  • 4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring
  • 4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring
  • 4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring
  • 4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring
  • 4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring

4K UHD HDMI Industrial Digital Video 20X-180X Lens Microscope Camera Measuring

$599.00



  • Description
  • Reviews
  • Shipping & Returns









Features:

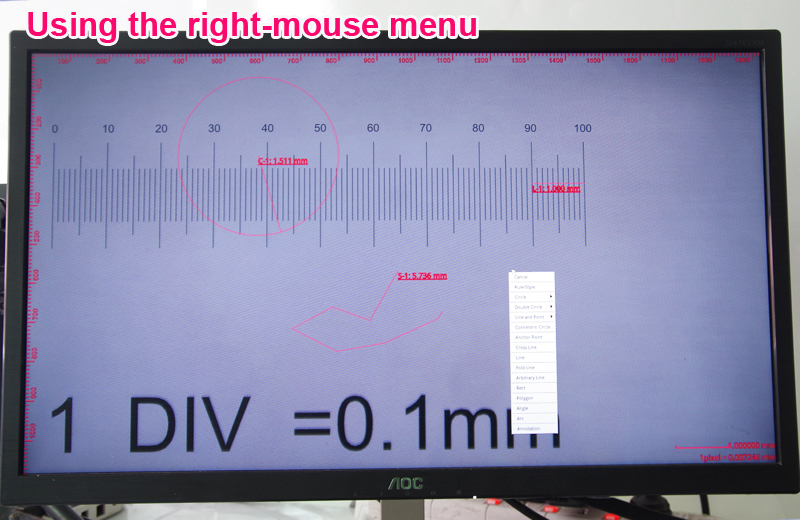

  • UI Digital design, mouse operation, humanized design
  • Labeling functions: Point coordinates, cross lines, coordinate systems, text annotations
  • Length measurement: Line length, line length, curve length, parallel line distance, point line distance
  • The center distance: The radius fixed circle, two points setting circle, three points setting circle
  • Geometric measurement: Line length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circles
  • The geometric area: Polygon, square
  • Image fast: Support for 4K static photos
  • Video video: Support 4K video
  • Measurement system: S-EYE
  • Image sensor: FULL HD 4K industrial camera sensor 1/1.8 inch
  • Effective pixel: 12M
  • Pixel size: 1.85*1.85um
  • Frame rate: 4K 30fps@3840*2160
  • Output interface: 4K HDMI, USB (only for USB mouse, can not output the video to the PC), TF card
  • Power supply: DC-12V
  • Thread: C mount

Table Stand Feature:

  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Item size: see the picture
  • Weight: 3.3kg

C-MOUNT Lens:

  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Work distance:95mm
  • Visual field :2.5mm-20mm
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g

144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

Package Content:

  • 1 x Camera Body
  • 1 x HDMI Cable
  • 1 x Wireless USB Mouse
  • 1 x Stereo Table Stand
  • 1 x C-MOUNT Lens
  • 1 x 144 Bulbs Microscope LED Ring Light
  • 1 x 100V-240V power supply (EU / UK / AU Adapter for free)
