1080P@60FPS HDMI Industrial C-mount Digital Microscope Camera CCD
+
2D & 3D Stereoscopic 180X C-MOUNT Lens for Industrial Microscope Document Camera
+ LEDs Light with Brightness control box
Camera Feature:
- High Quality, High Resolution, Clear Images
- 1080P FULL HD 60FPS high speed camera
- SONY SENSOR IMX290 Colour CMOS
- UI design menu, easy to control by mouse
- TF Card Video Recorder
- Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
- It build in digital crosshairs and color control, add line in the pictures
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.
Specification:
- Image Sensor : Colour CMOS
- Pixel size : 1/2.8〞
- Menu : Fully digital UI design
- Method of Operation : Mouse
- Lens interface : C/CS-type
- Power DC : DC5V
- Output method : HDMI
- White Balance : Auto / Manual / One-push control
- Exposure : Auto / Manual
- Display Frame rate : 1080P@60fps
- Scanning method : Line by line scanning
- Shutter Speed : 1/50s(1/60s)～1/10000s
- Operating Temperature : 0℃～50℃
- Magnification / Zoom : Support
- Saving function : Support TF card

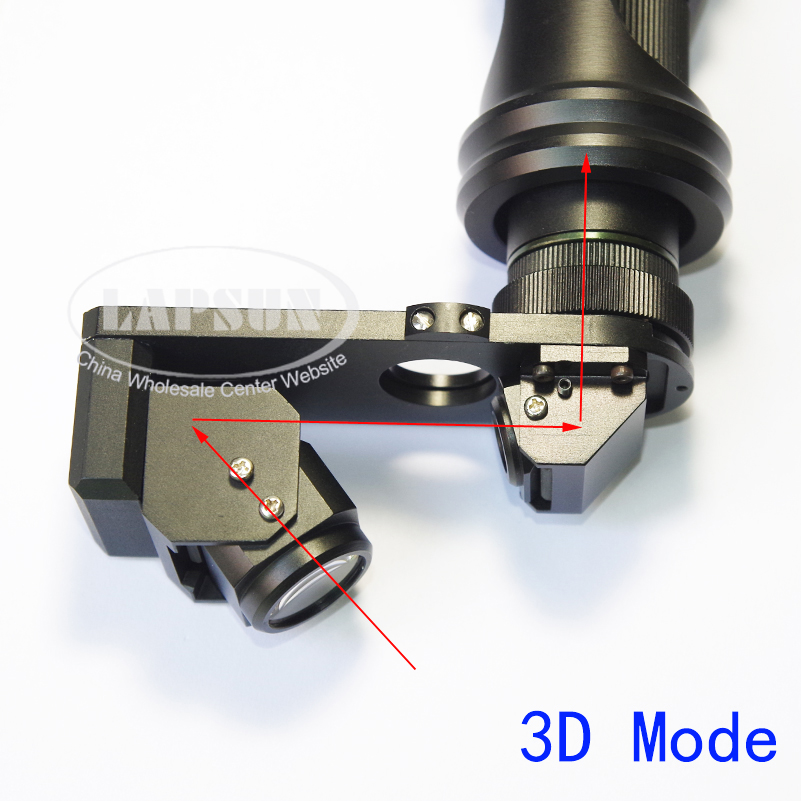

C-MOUNT Lens:
- The lens with face window and side face window
- Can magnify the side face of item by 2pcs reflectors
- Working distance:
2D model: 10CM
3D model: 4CM - Field of view:
2D model: 2.2mm-20mm
3D model: 4mm-15mm - zoom c-mount Lens
- 1X C-mount adapter
- Objective Magnification Power by 0.3 - 2.2X (about 20 - 180X on the display)
- Size: 190mm(L) * 110mm
Packing including:
- 1 x Camera Body
- 1 x HDMI Cable
- 1 x USB Mouse
- 1 x 100V-240V power supply (EU / UK / AU Adapter for free)
- 1 x Metal stand
- 1 x 144 LED Light
- 1 x 2D & 3D C-MOUNT Lens
