Auto Focus 4K Ultra HD 60fps SONY imx334 1/1.8" Sensor HDMI USB output WIFI digital microscope camera 4K HDMI USB microscope camera + + Universal Bracket + 10X-360X C-mount Lens

$899.00



  • Description
  • Reviews
  • Shipping & Returns


The XFCAM4K8MPA series is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.

XFCAM4K8MPA series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB for image-capture and video-recording.

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.







Camera Application:

  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;
  • Machine vision (PCB detection, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;

Feature:

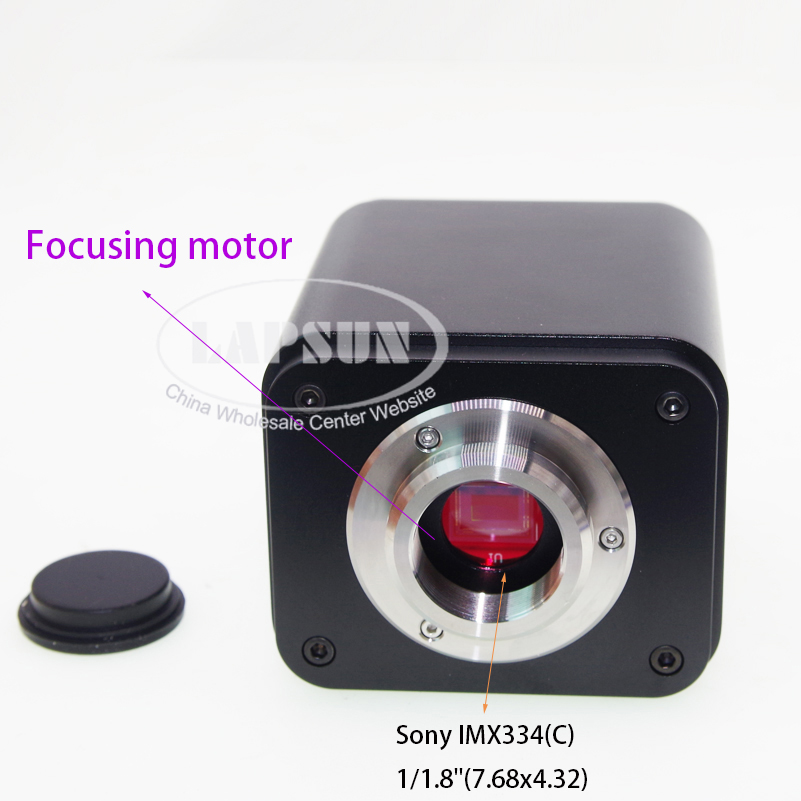

  • Auto/Manual focus with the movement of the sensor
  • Sony Exmor/STARVIS back-illuminated CMOS sensor

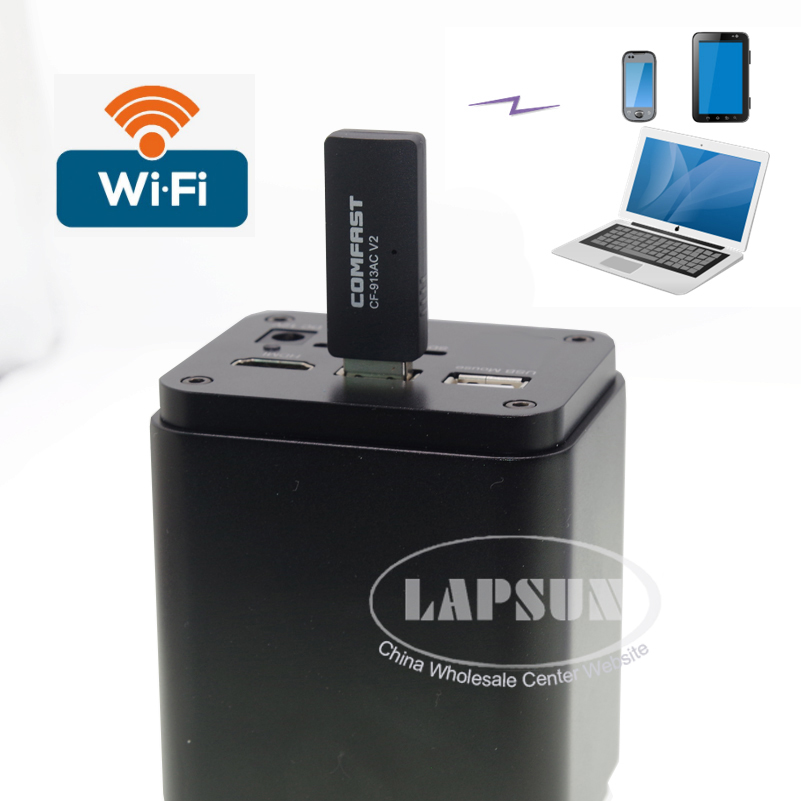

  • 4K HDMI/USB/LAN/Wi-Fi multiple video outputs
  • 4K/1080P auto switching according to monitor resolution
  • SD card/USB flash drive for captured image and video storage, support local preview and playback
  • Embedded XCamView for the control of the camera and image processing
  • Excellent ISP with local tone mapping and 3D denoising
  • ToupView/ToupLite software for PC iOS/Android applications for smart phones or tablets
Specification:

  • SONY imx334 Sensor, senzor size:1/1.8"
  • Pixel(μm) : 2.0x2.0
  • Resolution: 4K Ultra HD (8mp 3840x2160)
  • Preview frame rate: 60fps @ 4K under HDMI , 30fps@3840x2160 (USB)
  • Max recording frame rate: 50fps-60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk and SD card storage
  • HDMI, USB output at the same time

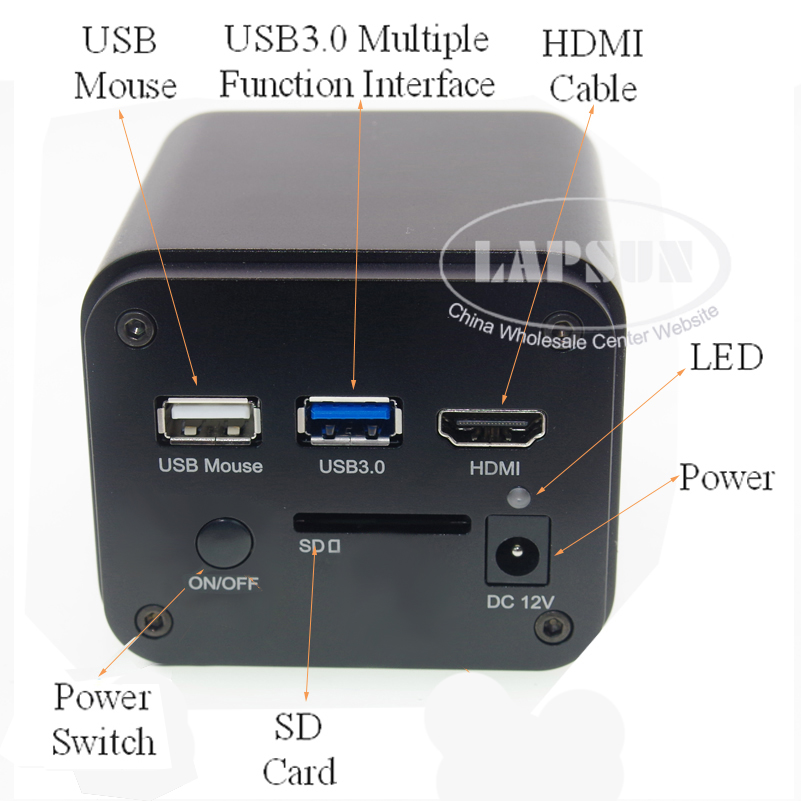

Video Output:

  • HDMI Interface
  • 1. Comply with HDMI2.0 standard;
  • 2. Max frame rate 60fps@4K or 60fps@1080P;
  • 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
  • 2. H264 encoded video;
  • 3. Bandwidth adjustment in real time;
  • 4. unicast/multicast configuration;
  • 5. DHCP configuration or manual configuration
  • USB3.0 Output
  • 1. Max frame rate 30fps@4K Resolution
  • 2. Camera Working with Computer via USB3.0 cable,
  • 3. RisingTech will provide RisingView software for buyer



Spectral Range   380-650nm (with IR-filter)



Other Specification for HDMI Output

UI Operation With USB Mouse
Image Capture 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk
Video Record Video Format:8M(3840*2160) H264 Encoded MP4 Format
Video Recording Frame Rate:50~60FPS(related with the SD card speed class and video resolution)
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze,

Cross, Browser Function

Other Specification for USB Output

Resolution

White Balance

8M (3840*2160)  frame rate 30fps

Auto/Manual/ROI White Balance

Color Technique Ultra-Fine Color Engine (USB)
Capture/Control API Standard network API for Windows/Linux/Mac(USB)
Recording System

Still Picture or Video





Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 12V/2A Adaptor




Camera Control Panel:


Camera Measurement Toolbar:




  • The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar












C-MOUNT Lens:

  • Working distance: 95mm
  • zoom c-mount Lens
  • 0.5X C-mount adapter
  • zoom ratios: 6.5:1
  • Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
  • Size: 180mm(L) * 50mm(DIA)
  • Weight: 450g




144 Bulbs Microscope LED Ring Light:

  • 144 bright white LED bulbs
  • 100,000 hours of life
  • Intense and focused shadow-free illumination
  • The brightness of 0-100%Adjustable,high brightness
  • Variable intensity control
  • Power input: 100-240V, 50-60HZ
  • Suit for the dia of the lens: 30mm-63mm

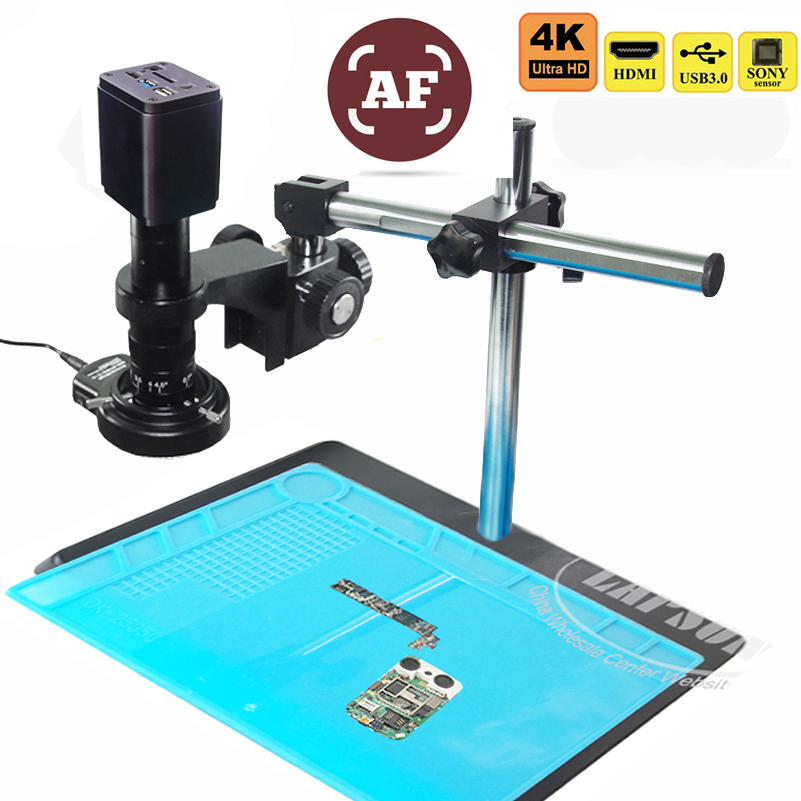

Universal Stand Feature:

  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Weight: 3.3kg



Heat Insulation Silicone Pad:

  • 1.Fireproof
    this heat insulation silicone repair mat is fireproof material in good quality, 843°F high temperature tin melting, can directly solder on it. It's an ideal repair tools, specially suitable for smart phone repair, computer repair, tablet repair, iPhone repair, sport watches repair, IC circuit boards repair and other electronic devices.
  • 2.Anti-static
    this phone repair mat can use as screw tray, tools tray cause it's an anti-static repair pad and add built-in scale ruler (0 ~25cm), 124 screws position and 8 notches to classify different parts. It's your necessary repair tool which can make your work more easily and clearly.
  • 3.Anti-corrosion
    this computer repair mat is made of high quality silicone. It resists corrosion and out of shape. Its texture is soft, solid and durable to protect soldering iron tip.
  • 4.Easy to Clean
    the repair pad is easy to clean with soap and water. The omissive tin stick on the mat when soldering, just gently scratch your nail over the tin, it will fall off and mat recovers clean immediately without any vestige. This silicone mats environmental safety is conductive to improving the working environment of technicians.
  • 5.Anti-Slip
    anti-Slip and Anti-static Design: Both surface and back side are adopting the anti-slip design.
  • Material: Patience high-temperature materials
  • Maintenance : Water washing detergent or soft cloth
  • Stype(color,size,thickness)(option): Blue, 247mm * 345mm , Thickness: 4mm

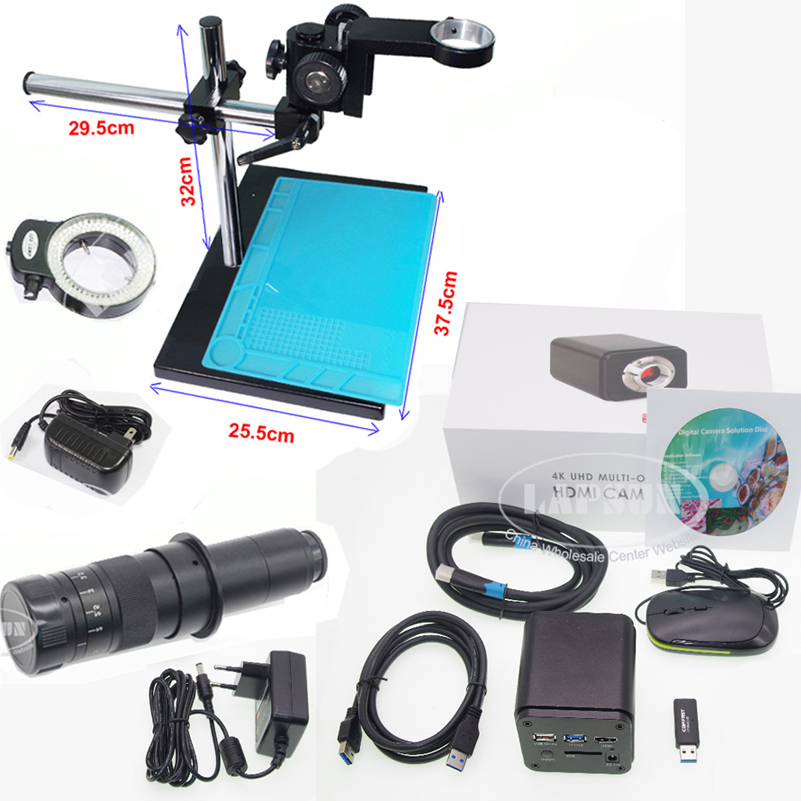

 Package including:

  • 1 x 4K camera
  • 1 x HDMI cable
  • 1 x USB3.0 Cable
  • 1 x Mouse
  • 1 x WiFi transmitter
  • 1 x Power Supplier (EU, US and UK for choice)
  • 1 x 10X-180X C mount Lens
  • 1 x Software DISC
  • 1 x Universal Stand
  • 1 x 144 Bulbs Microscope LED Ring Light
  • 1 x Heat Insulation Silicone Pad
  • 1 x Level Arm
  • 1 x 0.5X Aux Lens
  • 1 x 2X Aux Lens
