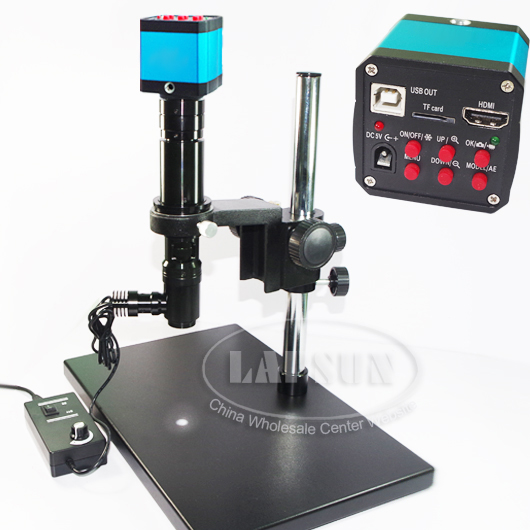

400X Coaxial Light C-mount Lens + HDMI USB Video Microscope Camera for PCB SMD

$425.00



  • Description
  • Reviews
  • Shipping & Returns
Large zoom magnification offering sharp images, Built-in shadow-free coaxial light, Metal framework with solid base plate

This is a monocular inspection microscope with 0.7X-4.5X zoom objective, 1X Eyepiece and a built-in shadow-free coaxial light. It offers large working distance, super widefield of view and crystal clear sharp images.



Coaxial C-mount Lens Description:

  • Shadow-free coaxial light
  • C-mount lens
  • Long working distance
  • Sharp images over a super wide field view
  • Large Metal stand and framework
  • 0.7X-4.5X zoom objective ( about 62 - 400X on the display( CCD/COMS Size: 1/3 ", display Size: 20 ") )

Coaxial C-mount Lens Specification:
  • Zoom microscope objective: 0.7X-4.5X
  • Mount: C-mount for PC or TV camera connection (camera sold separately)
  • Working distance: 9.3mm-10mm
  • Field of view: 1mm-6.5mm
  • Illumination: coaxial light
  • Light Power input: 110 - 240V, 50 - 60HZ, auto switching
  • Pillar: 260mm long

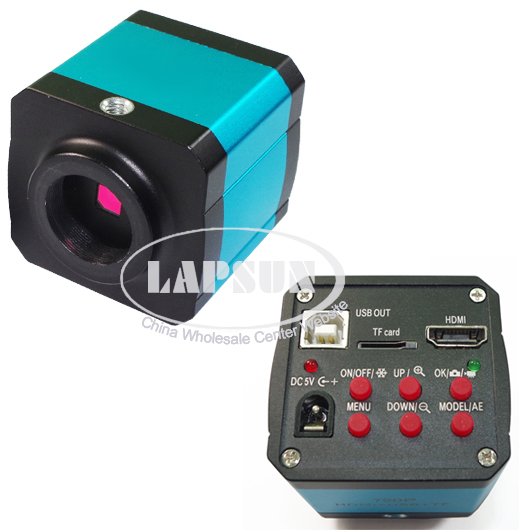

HD Microscope Camera:
  • High Quality, High Resolution, Clear Images
  • 14.0MP Japan CMOS
  • Encode: H.264 (High Profile)
  • TF Card Video Recorder
  • 720P 1280*720@30FPS video recorder
  • Photo Model / Video Model
  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures, freeze
  • Supply USB,14.0MP HDMI HD video,Two output ports
  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.
  • Model: Camera with HDMI USB2.0 two output
  • Sensor: 14.0mp,1/3 inch
  • Image format: jpg
  • Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB)
  • Video resolution: 1920 *1080 @ 30FPS (USB output @ 25FPS )
  • Encode: H.264 (High Profile)
  • White Balance: Auto
  • Light: Auto
  • Color: Color
  • Freeze: Support
  • OSD: English/Chinese

Stereo Table Stand Feature:
  • Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
  • We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
  • Weight: 2.6kg

Package content:
  • 1 x Coaxial C-mount Lens
  • 1 x HD Microscope Camera
  • 1 x Camera power supply
  • 1 x USB Cable
  • 1 x HDMI Cable
  • 1 x Coaxial Light
  • 1 x Light power supply
  • 1 x 50mm Ring Adapter
  • 1 x Stereo Table Stand
