Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope
  • Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope
  • Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope
  • Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope
  • Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope
  • Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope

Auto Focus HDMI 1080P SONY IMX290 Digital Camera Simul-focal Trinocular Stereo Microscope

$695.00



  • Description
  • Reviews
  • Shipping & Returns

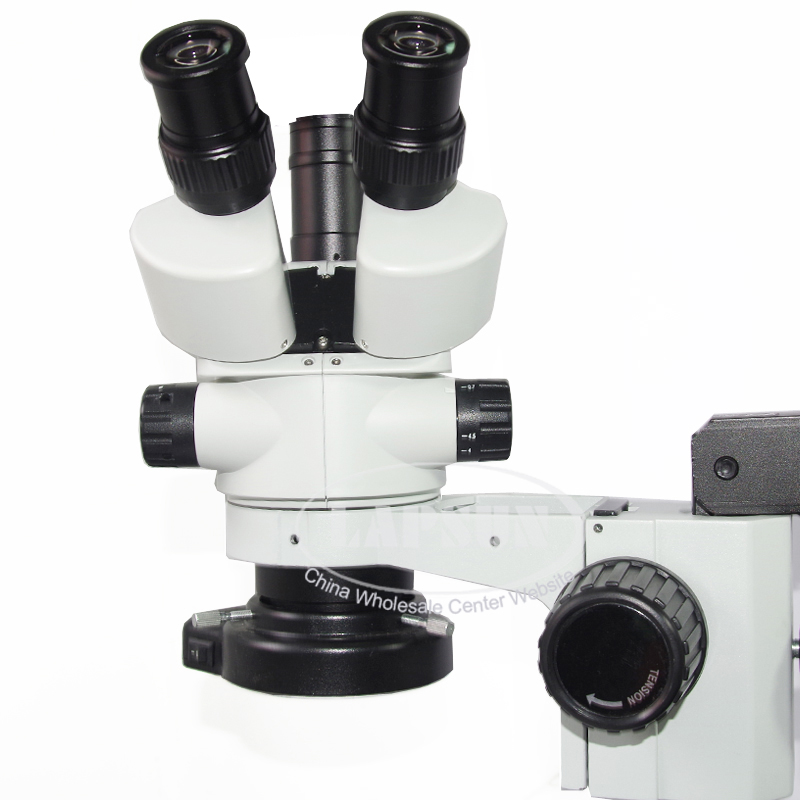

7X-45X Trinocular Industrial Inspection Zoom Stereo Microscope
+ 30X-200XAutofocus SONY IMX290 HDMI TF Video
Auto Focus Industry Microscope Camera + 144-LED Light + Heat Insulation Silicone Pad









Key Feature:

  • Simul-Focal
  • 7X-45X zoom magnification power with crisp sharp images
  • Super widefield high-eyepoint optics
  • widefield of view
  • 4" (100mm) working distance
  • Sturdy all-metal pillar stand
  • Powerful144-LED ring light with dimmer
This stereo microscope has a144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Feature:

  • An excellent stereo inspection microscope with intensity-adjustable144-LED ring light
  • 7x-45x super wide zoom magnification power
  • Bright cool light144-LED illumination system
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Binocular head with 45 degree inclined 360 degree swiveling eye tubes
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true color microscope images
  • Dual eye tubes with adjustable diopters
  • Large working distance
  • Sturdy all-metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included

Specification:

  • Head: 360 degree rotatable 45 degree inclined binocular
  • Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
  • Objective Zoom Range: 0.7X-4.5X
  • Working Distance: 4" (100mm)
  • Diopter Adjustment: +/- 5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Round Plate: 3-3/4" (95mm) in diameter
  • Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
  • Illumination: 58-LED Ring Light
  • Power Input: 110-240V, 50-60HZ, Automatic Switching
  • Accessories: Paired eye-caps

Microscope Camera :

  • 1080P FULL HD 60FPS high speed camera

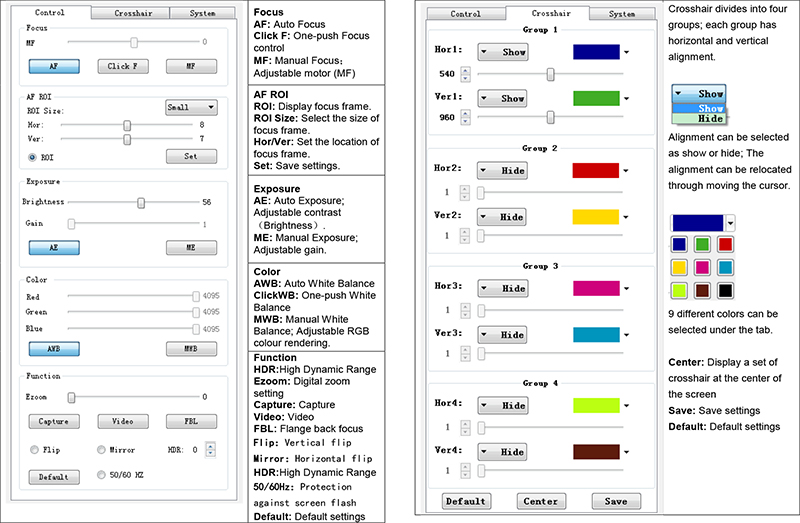

  • UI design menu, easy to control by mouse
  • Autofocus, when observation Objects of different heights(MAX 10CM), you do not need adjust the lens's Working distance
  • When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
  • When you adjust the lens's Working distance(MAX 10CM), you do not need adjust the lens's Magnification, The camera can Autofocus
  • Product Model : C202
  • Image Sensor : Colour CMOS
  • Pixel size : 1/2.8〞
  • Menu : Fully digital UI design
  • Method of Operation : Mouse
  • Lens interface : C/CS-type
  • Power DC : DC5V
  • Output method : HDMI
  • White Balance : Auto / Manual / One-push control
  • Exposure : Auto / Manual
  • Display Frame rate : 1080P@60fps
  • Scanning method : Line by line scanning
  • Shutter Speed : 1/50s(1/60s)~1/10000s
  • Operating Temperature : 0℃~50℃
  • Magnification / Zoom : Support
  • Saving function : Support TF card



Dual Arm System Stand:

  • This stand has a dual arm system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
  • The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
  • Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
  • Steel Gears on Focusing Holder.
  • Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
  • Item size: see the 4th picture
  • Weight: 3.5kg

Heat Insulation Silicone Pad:

  • The mat add built-in scale ruler (0 ~36cm), 124 screws position and 3 pcs part boxes with lid, 18 notches to make your work easy.
  • Size: 45x30cm
  • It resists corrosion and out of shape, its made of high quality silicone.
  • The mat has excellent heat insulation performance, the soldering iron can directly solder in the mat.
  • Anti-Slip and Anti-static Design, Both surface and back side are adopting the anti-slip design.
  • It is an ideal product for soldering electronics assembly or electronics and circuit board repair.






Packing including:

  • 1 x Binocular Stereo Zoom Head
  • 1 x Pair of Super Widefield 10X Eyepieces
  • 1 x Microscope Camera
  • 1 x Power Supper for Camera
  • 1 x 144-LED Ring Light with Adapter
  • 1 x Pillar Table Stand
  • 1 x HDMI Cable
  • 1 x USB Mouse
  • 1 x Focusing Rack
  • 1 x C-mount Adapter
  • 1 x Pair of Eye-Guards
  • 1 x Pair of Clips
  • 1 x Dust Cover
  • 1 x Heat Insulation Silicone Pad
