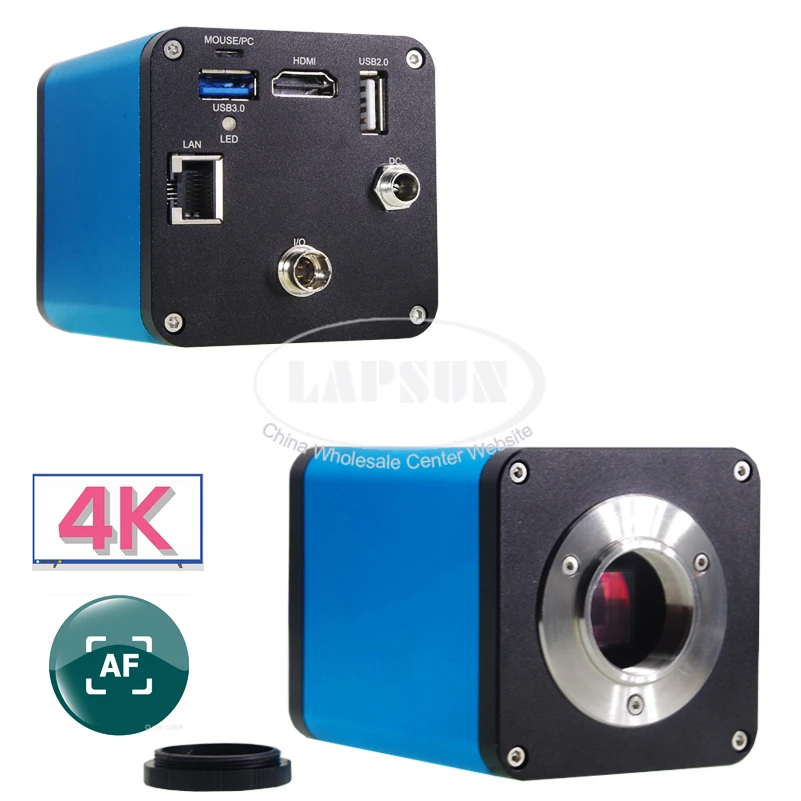

Auto Focus 4K Ultra HD 60fps SONY imx334 1/1.8" Sensor HDMI USB LAN output digital microscope camera 4K HDMI USB microscope camera






The LP313 Camera is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.

LP313 Camera comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB for image-capture and video-recording.












Camera Application:



  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;
  • Machine vision (PCB detection, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;



Feature:



  • Auto/Manual focus with the movement of the sensor
  • Sony Exmor/STARVIS back-illuminated CMOS sensor
  • 4K HDMI/USB/LAN/Wi-Fi multiple video outputs
  • 4K/1080P auto switching according to monitor resolution
  • SD card/USB flash drive for captured image and video storage, support local preview and playback
  • Embedded SLView for the control of the camera and image processing

Specification:



  • SONY imx334 Sensor, senzor size:1/1.8"
  • Pixel(μm) : 2.0x2.0
  • Resolution: 4K Ultra HD (8mp 3840x2160)
  • Preview frame rate: 60fps @ 4K under HDMI , 30fps@3840x2160 (USB)
  • Max recording frame rate: 50fps-60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk storage







Video Output:














  • HDMI Interface
  • 1. Comply with HDMI2.0 standard;
  • 2. Max frame rate 60fps@4K or 60fps@1080P;
  • 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
  • 2. H264 encoded video;
  • 3. Bandwidth adjustment in real time;
  • 4. unicast/multicast configuration;
  • 5. DHCP configuration or manual configuration
  • USB3.0 Output
  • 1. Max frame rate 15fps@4K , 60fps@1080P Resolution,
  • 2. Camera Working with Computer via USB3.0 cable,
  • 3. RisingTech will provide RisingView software for buyer
  •





  •
  • LAN Video Output
  • 1. Max frame rate 15fps@4K or 60fps@1080P;Resolution
  • 2. Camera Working with Computer via RJ45 cable,
  •



  •









Package including:



  • 1 x 4K camera
  • 1 x HDMI cable
  • 1 x USB3.0 Cable
  • 1 x USB Mouse
  • 1 x Power Supplier
