4K Ultra HD 60FPS SONY IMX334 1/1.8" Sensor HDMI WIFI USB Industry Microscope Camera
  • 4K Ultra HD 60FPS SONY IMX334 1/1.8
  • 4K Ultra HD 60FPS SONY IMX334 1/1.8
  • 4K Ultra HD 60FPS SONY IMX334 1/1.8
  • 4K Ultra HD 60FPS SONY IMX334 1/1.8
  • 4K Ultra HD 60FPS SONY IMX334 1/1.8" Sensor HDMI WIFI USB Industry Microscope Camera

4K Ultra HD 60FPS SONY IMX334 1/1.8" Sensor HDMI WIFI USB Industry Microscope Camera

$695.00



  • Description
  • Reviews
  • Shipping & Returns


















































































4K Ultra HD 60fps SONY imx334 1/1.8" Sensor HDMI GE port USB output WIFI digital microscope camera 4K HDMI USB microscope camera






The XCAM4K series is the next-generation live-view imaging-system with 4K resolution at 60/30 FPS.

XCAM4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

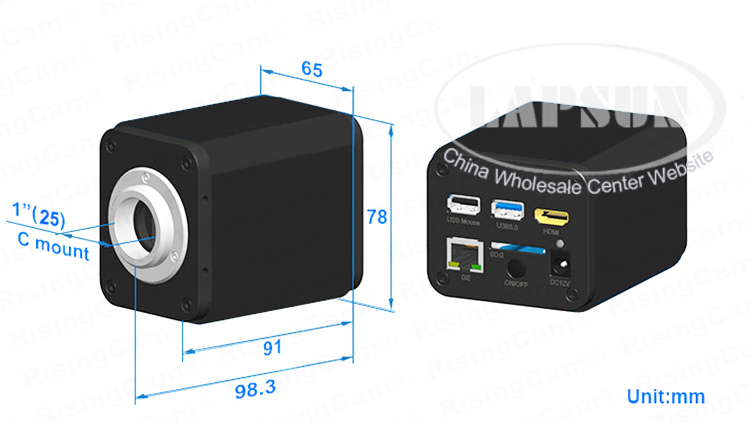

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB or Gigabit Ethernet (GE) for image-capture and video-recording.

Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.



The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.









Camera Application:

  • Scientific research, digital teaching (teaching, demonstration and academic discussing);
  • Digital laboratory, medical research;
  • Machine vision (PCB detection, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aviation and military;

Feature:

  • 4K HDMI / GE multiple video output
  • Double Cortes ARM 53 CPU processor, high performance and fast response video
  • H.265/H.264 codec
  • 8G bit DDR4 running smoothly
  • 4k/1080P switch adaptively, Preview frame rate 60fps, max recording frame rate: 60fps
  • 30fps for USB and GE port output
  • Embedded measurement functionsand meausurement objects can be exported to Excel or saved with the image data in layer mode or in burn in mode.
  • RisingView application for the PC output via USB3.0 or GE port
Specification:

  • SONY imx334 Sensor, senzor size:1/1.8"
  • Pixel(μm) : 2.0x2.0
  • Resolution: 4K Ultra HD (8mp 3840x2160)
  • Preview frame rate: 60fps @ 4K under HDMI , 30fps@3840x2160 (USB,GE)
  • Max recording frame rate: 50fps-60fps under HDMI
  • Exposure : 0.1ms~1000ms
  • Real time measurement
  • Support U disk and SD card storage
  • HDMI, USB and GE port (Ethernet) output





Video Output:

  • HDMI Interface
  • 1. Comply with HDMI2.0 standard;
  • 2. Max frame rate 60fps@4K or 60fps@1080P;
  • 3. The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive
  • GE Interface
  • 1. Max frame rate 30fps@ 4K resolution
  • 2. H264 encoded video;
  • 3. Bandwidth adjustment in real time;
  • 4. unicast/multicast configuration;
  • 5. DHCP configuration or manual configuration
  • USB3.0 Output
  • 1. Max frame rate 30fps@4K Resolution
  • 2. Camera Working with Computer via USB3.0 cable,
  • 3. RisingTech will provide RisingView software for buyer



Spectral Range   380-650nm (with IR-filter)



Other Specification for HDMI Output

UI Operation With USB Mouse
Image Capture 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk
Video Record Video Format:8M(3840*2160) H264 Encoded MP4 Format
Video Recording Frame Rate:50~60FPS(related with the SD card speed class and video resolution)
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze,

Cross, Browser Function

Other Specification for USB Output

Resolution

White Balance

8M (3840*2160)  frame rate 30fps

Auto/Manual/ROI White Balance

Color Technique Ultra-Fine Color Engine (USB)
Capture/Control API Standard network API for Windows/Linux/Mac(USB)
Recording System

Still Picture or Video



Other Specification for GE Output

White Balance Auto/Manual/ROI White Balance
Color Technique Ultra-Fine Color Engine (USB)
Capture/Control API Standard network API for Windows/Linux/Mac(USB)
Recording System

Still Picture or Video

Software Environment (for GE port Connection)
Operating System Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
Ethernet Port: RJ45 Ethernet Port
Display:   19” or Larger

CD-ROM

Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 12V/2A Adaptor

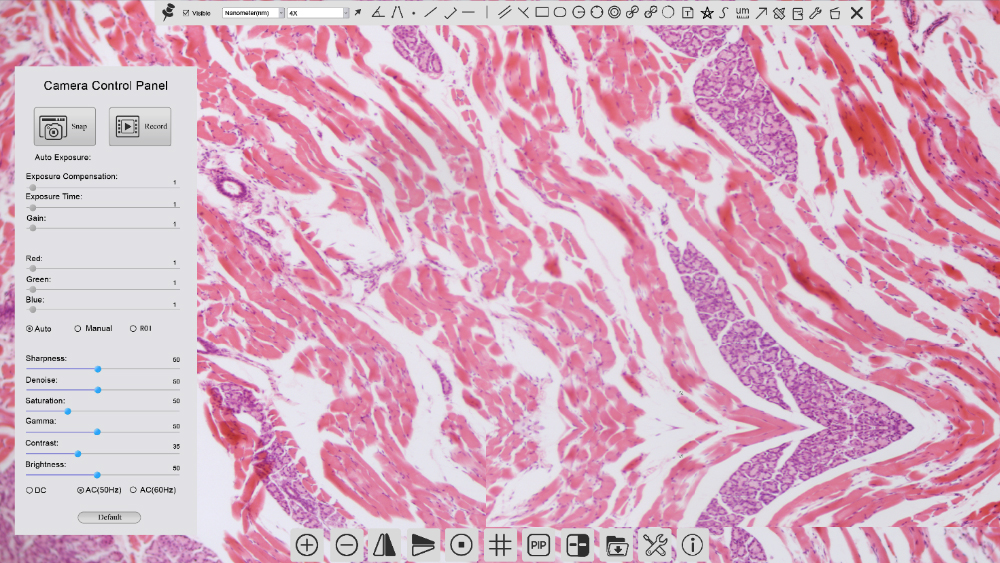

Camera Control Panel:


Camera Measurement Toolbar:



  • The Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the Measurement Toolbar







GE port Ethernet output mode :






Package including:

  • 1 x 4K camera
  • 1 x HDMI cable
  • 1 x USB3.0 Cable
  • 1 x Mouse
  • 1 x WiFi transmitter
  • 1 x Power Supplier (EU, US and UK for choice)
